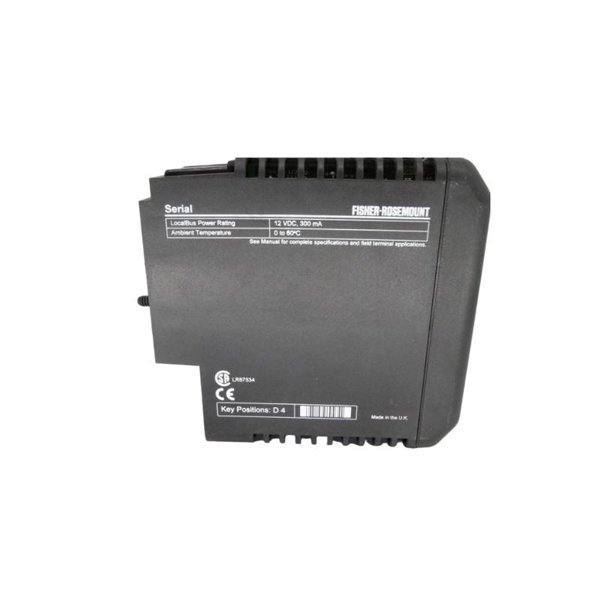

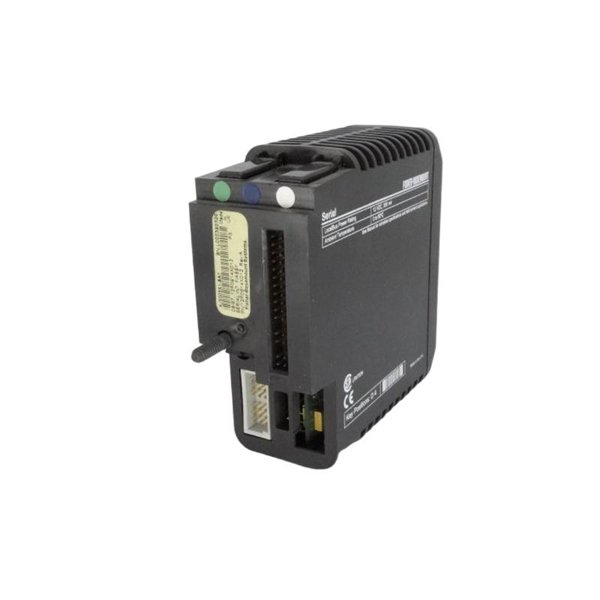

Emerson KJ3243X1-BB2 PROFIBUS DP Card

The Emerson KJ3243X1-BB2 is a PROFIBUS DP communication card designed for DeltaV distributed control systems. It provides a reliable and high-speed interface between DeltaV controllers and PROFIBUS DP field devices, enabling seamless integration of industrial automation devices into the control network.

Key Features

• Supports PROFIBUS DP communication protocol

• High-speed and deterministic data transfer

• Seamless integration with DeltaV distributed control systems

• Compatible with a wide range of PROFIBUS DP field devices

• Reduces wiring complexity and installation costs

• Provides robust network diagnostics and monitoring

• Suitable for harsh industrial environments

Technical Specifications

Industry Applications

• Power Generation – turbine and generator monitoring via PROFIBUS field devices

• Oil & Gas – remote sensors and actuators integration

• Chemical & Petrochemical – process automation communication

• Manufacturing – PROFIBUS device integration and monitoring

• Water & Wastewater – distributed sensor and actuator networks

Advantages

• High-speed and reliable communication for industrial automation

• Simplifies integration of PROFIBUS DP devices into DeltaV systems

• Provides robust diagnostics and network monitoring capabilities

• Reduces wiring complexity and installation costs

• Rugged design suitable for harsh industrial environments

• Ensures data integrity and system reliability

• Compatible with a wide range of PROFIBUS DP devices

Frequently Asked Questions (FAQ)

Q1: What is the primary function of this card?

It provides a PROFIBUS DP interface to connect DeltaV controllers with PROFIBUS field devices.

Q2: Which communication protocol is supported?

PROFIBUS DP.

Q3: What is the maximum communication speed?

Up to 12 Mbps.

Q4: Can it integrate with all DeltaV systems?

Yes, it is fully compatible with DeltaV distributed control systems.

Q5: What types of devices can it connect?

Standard PROFIBUS DP field devices, including sensors and actuators.

Q6: What is the operating temperature range?

0 °C to +60 °C.

Q7: How is it mounted?

Rack or DIN rail mount via DeltaV chassis.

Q8: What are the dimensions?

Approx. 120 mm × 25 mm × 110 mm.

Q9: Is it suitable for harsh industrial environments?

Yes, it is designed for rugged industrial conditions.

Q10: Which industries commonly use this card?

Power Generation, Oil & Gas, Chemical & Petrochemical, Manufacturing, and Water & Wastewater.
