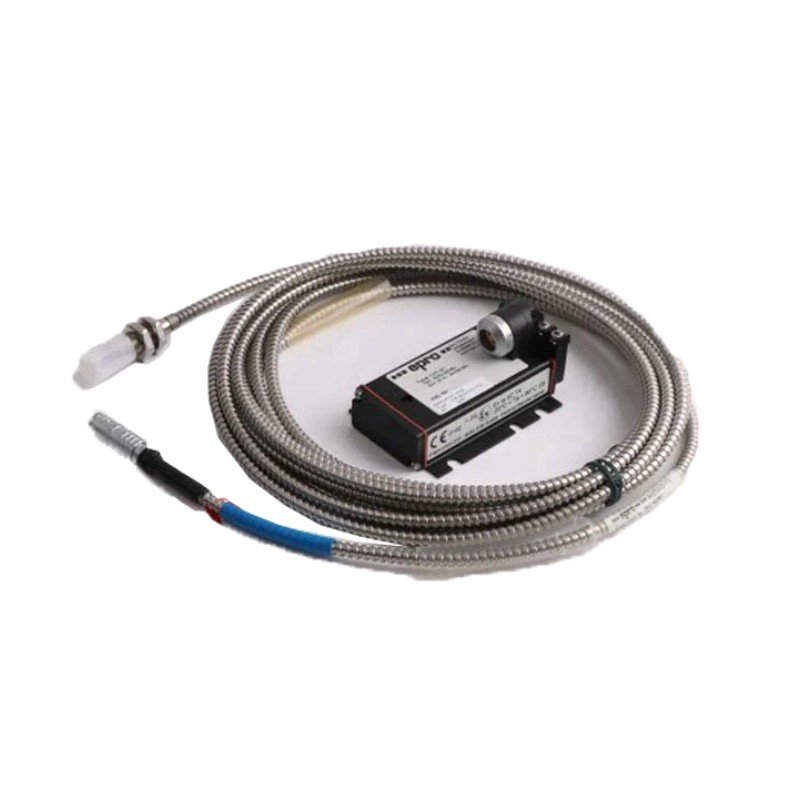

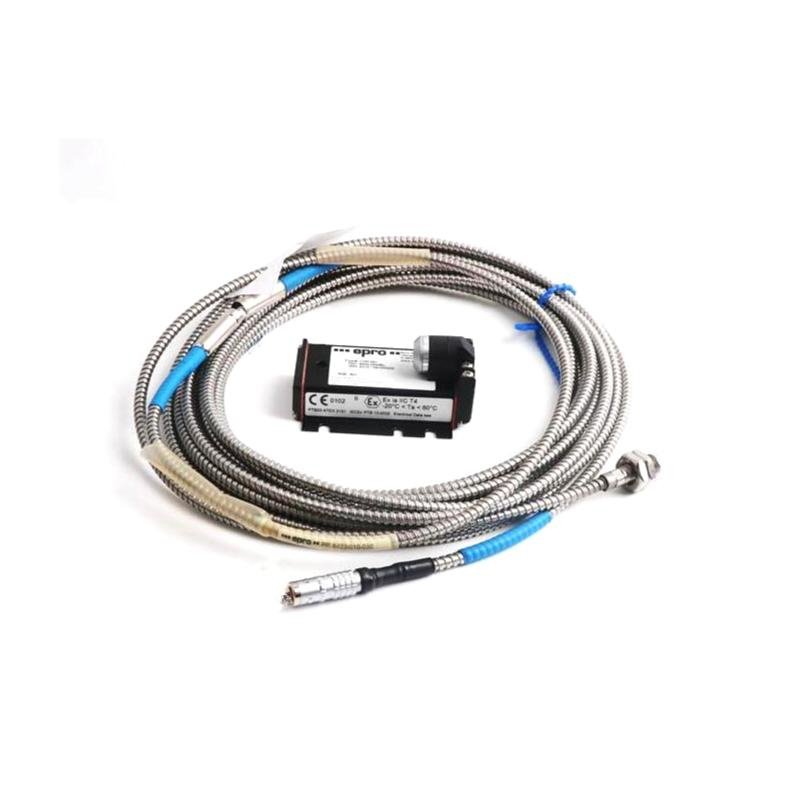

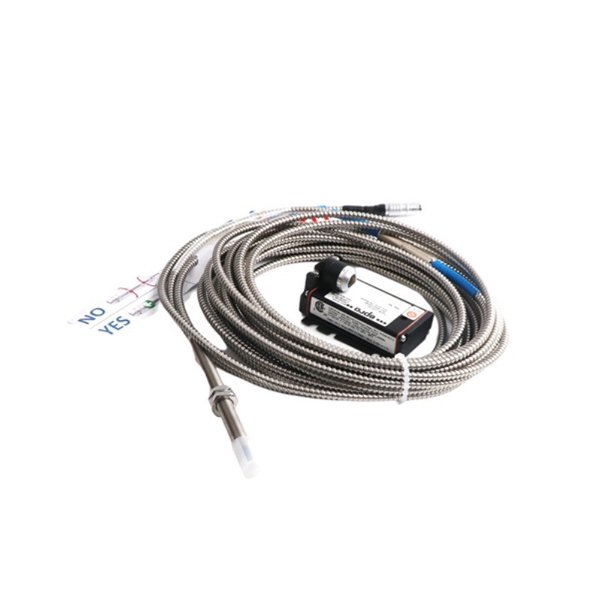

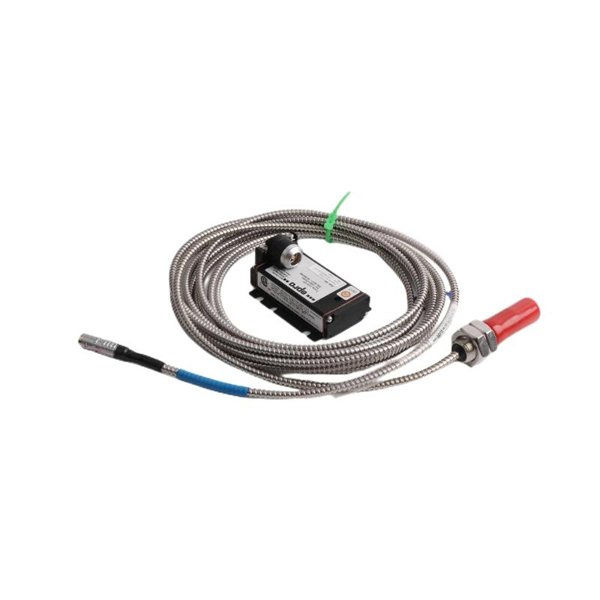

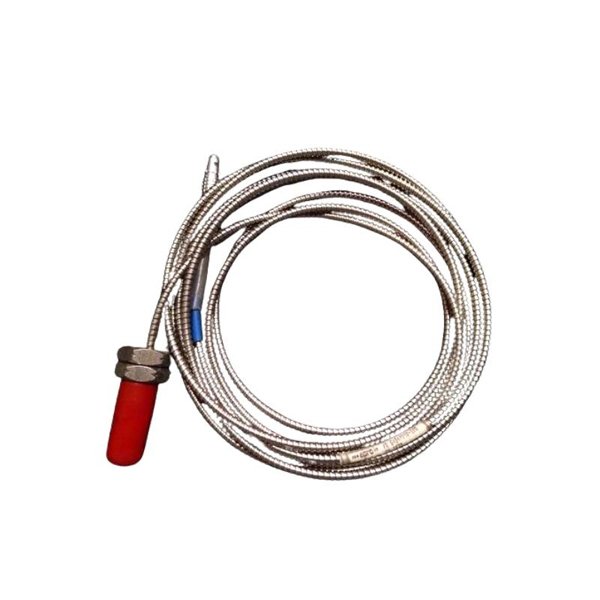

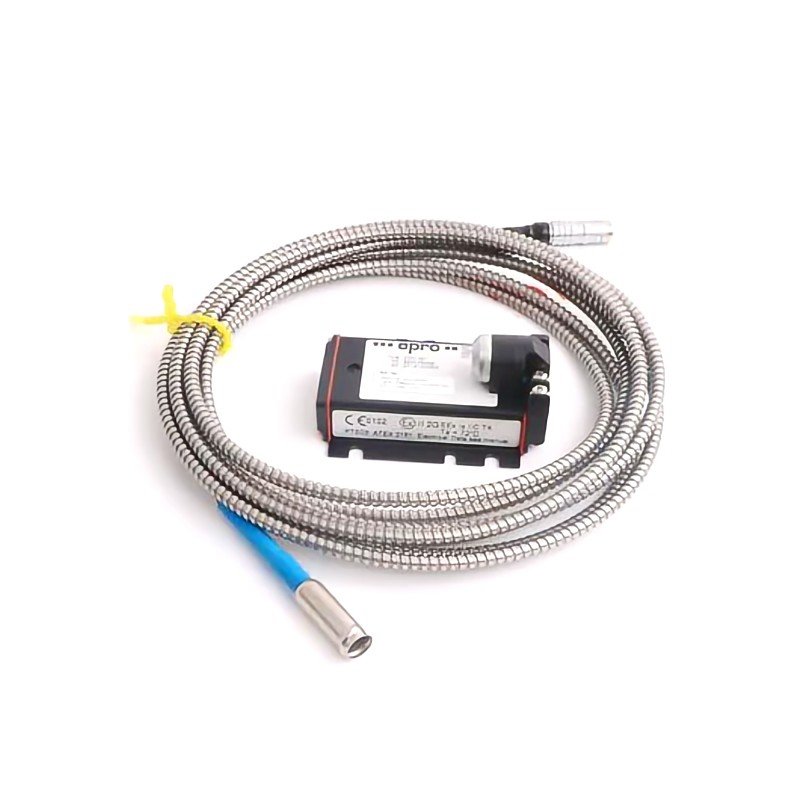

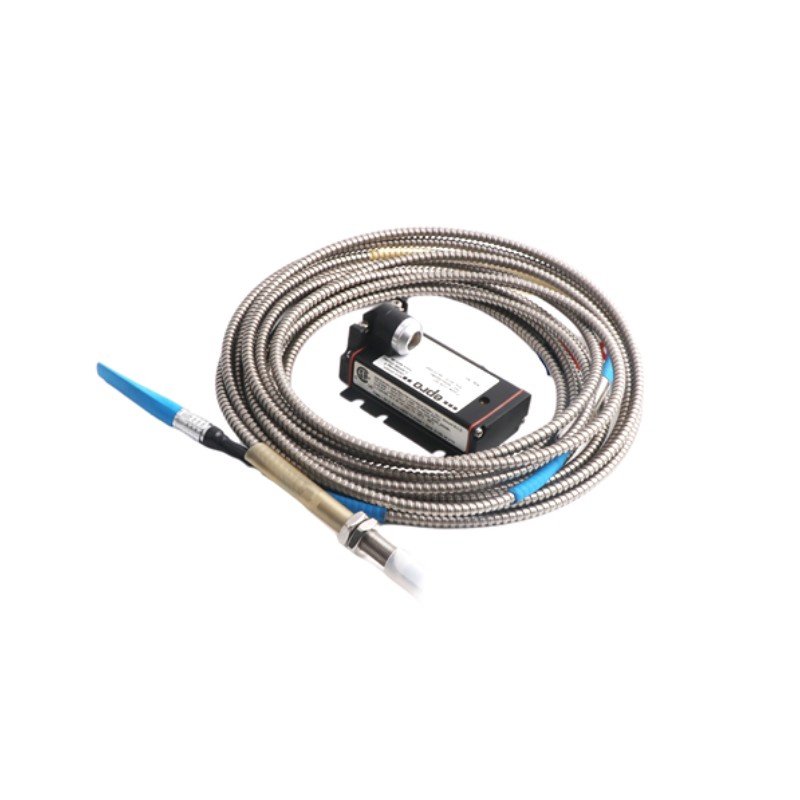

Epro PR6424/010-100+CON021 16mm Eddy Current Sensor
Product Number: PR6424/010-100 + CON021
Category: 16mm Eddy Current Sensor System
Probe Diameter: 16 mm
Measurement Range: 0-4 mm
Frequency Range: 0-10 kHz
Output Sensitivity: 4 mV/μm (typical)
Operating Temperature: -35°C to +180°C
Signal Converter: CON021
Application: Contactless measurement in demanding industrial applications
Product Description
The Epro PR6424/010-100+CON021 is a versatile and high-performance position transmitter integrated with the CON021 connector. Designed for demanding industrial applications, this device combines contactless measurement technology with precision feedback control to meet the rigorous demands of automation systems, motion control, and process automation. The PR6424/010-100 series is part of Epro’s renowned line of position transmitters, widely regarded for their reliability, accuracy, and durability in various industrial settings.
The CON021 connector adds an additional level of functionality, providing flexible connectivity options for easier integration into control systems. The PR6424/010-100+CON021 is ideal for high-precision applications such as servo motors, hydraulic actuators, robotic systems, valve positioners, and other motion control systems where precise feedback is critical.
The product is particularly well-suited for use in industries like automated manufacturing, energy generation, oil and gas, and chemical processing, offering a robust solution for position feedback in environments where reliability and precision are paramount.
Key Features
- Contactless Measurement Technology: Ensures long lifespan and reduced wear compared to traditional contact-based systems.
- Precision and Accuracy: Delivers high-resolution feedback for precise position control in various applications.
- Flexible Output Signals: Supports both analog (4-20 mA) and digital (CANopen) output signals for seamless integration.
- High Durability: Built with an IP67-rated housing, offering protection against dust and water ingress.
- Temperature Stability: Capable of operating in temperatures ranging from -40°C to 85°C.
- Easy Integration: The CON021 connector simplifies wiring and enhances compatibility with existing systems.
- Compact Design: Compact form factor for ease of installation in space-constrained environments.
- Wide Application Range: Ideal for use in robotic arms, servo motors, hydraulic systems, valve positioners, and motion control systems.
- Long-Term Reliability: With stainless steel housing and contactless measurement, the product offers a long service life, minimizing downtime and maintenance costs.
Applications
The Epro PR6424/010-100+CON021 position transmitter is widely used in industries requiring precise feedback and control, such as:
- Industrial Automation: Provides accurate position feedback in robotic arms, automated production lines, and conveyor systems.
- Hydraulic Systems: Ideal for feedback in hydraulic actuators used in construction and heavy machinery.
- Servo Motors: Ensures high-precision feedback for motion control systems in CNC machines, robotic arms, and automated assembly.
- Valve Control: Used in valve positioners to regulate valve movements in chemical plants, oil refineries, and water treatment facilities.
- Oil & Gas: Position feedback in pipeline control, drilling systems, and control valves.
- Energy Generation: Monitors position feedback in power plant turbines, dampers, and regulating valves.
- Marine and Aerospace: Precise position measurement for navigation systems and servo-actuators.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Epro PR6424/010-100+CON021 |
| Type | Position Transmitter with Connector (CON021) |
| Measurement Principle | Contactless Measurement (Magnetic or Inductive Technology) |
| Measuring Range | 0 to 1000 mm (customizable based on needs) |
| Resolution | 0.1 mm (depending on version) |
| Accuracy | ±0.2% of full scale (typical) |
| Output Signal | 4-20 mA (analog) or CANopen (digital) |
| Power Supply | 24 V DC (±10%) |
| Housing Material | Stainless Steel |
| Ingress Protection | IP67 (dust-tight and water-resistant) |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 100°C |
| Humidity | 0 to 95% non-condensing |
| Sensor Head Diameter | 16 mm |
| Weight | 0.32 kg |
| Mounting | Direct mounting or via bracket |
| Electrical Connection | M12 (for CANopen) or terminal blocks (for 4-20 mA) |
| Connector Type | CON021 (for easy installation and reliable connection) |
| Certifications | CE, UL, ATEX (optional) |
| Signal Output | 4-20 mA or CANopen |
| Temperature Compensation | Automatic Compensation for Temperature Variations |
Detailed Product Features
1. Contactless Measurement Technology
The Epro PR6424/010-100+CON021 utilizes advanced contactless measurement technology, ensuring a significant reduction in mechanical wear and tear compared to traditional position measurement devices. This results in increased reliability and longer service life, reducing the need for frequent maintenance and minimizing downtime.
2. Precision and Accuracy
This position transmitter delivers high-resolution feedback with an accuracy of ±0.2% of the full scale, making it ideal for precise control in a variety of applications. Whether in motion control systems, servo motors, or hydraulic actuators, the device ensures the most accurate position data is provided to ensure smooth, uninterrupted operation.
3. Flexible Output Signals
The Epro PR6424/010-100+CON021 is designed to offer both analog and digital output signals, providing flexibility to integrate seamlessly into existing control systems. It supports 4-20 mA analog output for traditional control systems as well as CANopen digital communication for modern, networked automation systems.
4. Robust Construction
Built to withstand the rigors of industrial environments, the Epro PR6424/010-100+CON021 features a stainless steel housing that is IP67-rated, providing protection against dust, water, and other environmental contaminants. This makes the device suitable for use in harsh environments, including outdoor installations, factories, and high-vibration settings.
5. Wide Temperature Range
The Epro PR6424/010-100+CON021 operates across a wide temperature range of -40°C to 85°C, ensuring reliable performance even in extreme conditions. This makes it ideal for use in high-temperature environments, such as power plants, oil refineries, and chemical processing plants, as well as cold environments found in certain outdoor applications.
6. Easy Integration with Control Systems
With the CON021 connector, the Epro PR6424/010-100+CON021 simplifies the wiring process, reducing installation time and enhancing the device’s integration into automated control systems. This connector ensures a reliable and secure connection, preventing issues related to loose or faulty wiring in industrial environments.
7. Compact and Modular Design
The Epro PR6424/010-100+CON021 is designed to fit into tight spaces while maintaining easy installation. The modular design also makes it easier to replace components if necessary, reducing maintenance time and costs. The compact dimensions of 160 mm x 90 mm x 70 mm and low weight of approximately 1.5 kg ensure the device can be mounted in various configurations with minimal disruption to existing systems.
8. Versatile Applications
The combination of precision, durability, and flexible integration options makes the Epro PR6424/010-100+CON021 suitable for a wide range of applications. It is commonly used in industrial automation, motion control, servo systems, valve control, hydraulic applications, and more.
