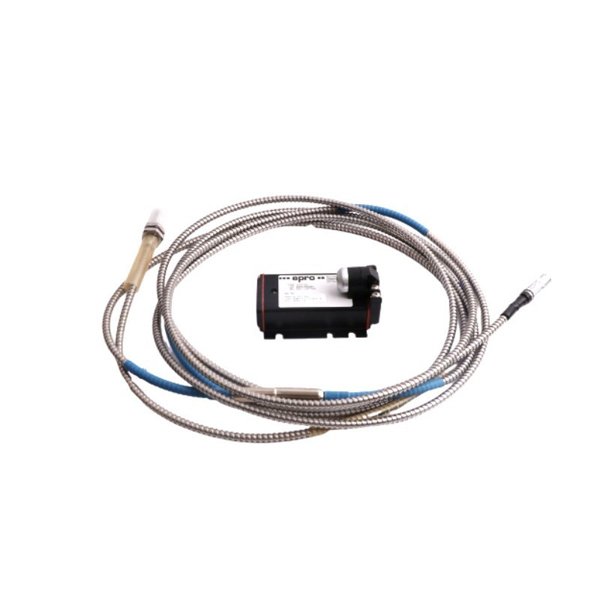

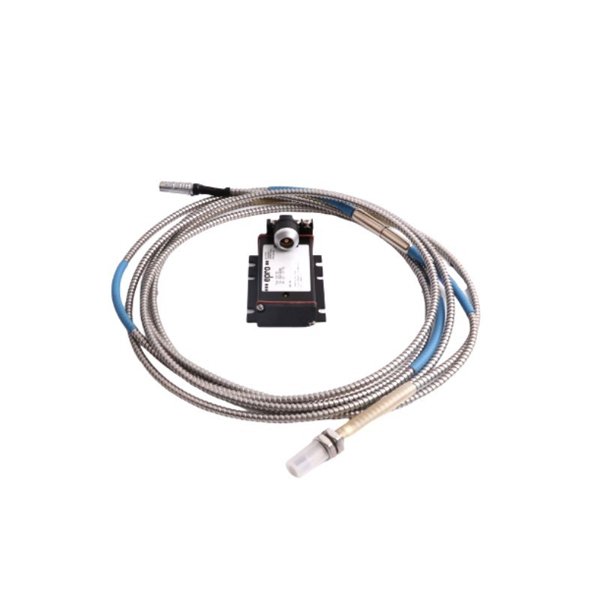

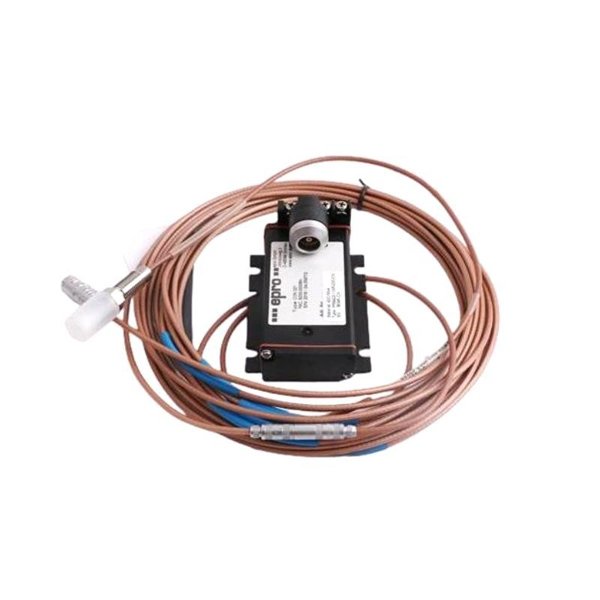

The Epro PR6424/112-021 is a 16mm eddy current sensor designed for high-precision, non-contact measurement of displacement, vibration, and position. Using eddy current technology, the sensor generates a magnetic field that induces currents in conductive materials. The sensor detects the changes in these currents to calculate the distance between the sensor and the target.

Ideal for machine condition monitoring, vibration analysis, and position sensing, the PR6424/112-021 is used in a range of industries including automotive, aerospace, power generation, and manufacturing. Its compact design and non-contact measurement capabilities make it highly suitable for high-speed applications and environments where physical contact with the sensor is not feasible.

Product Specifications

Applications

The Epro PR6424/112-021 eddy current sensor is designed for a wide variety of industrial applications requiring high precision and non-contact measurement. Key applications include:

• Condition Monitoring: Continuously monitors the health of rotating machinery such as motors, turbines, bearings, and generators, identifying early signs of wear, misalignment, and imbalance.

• Vibration Measurement: The sensor is ideal for measuring displacement and vibration in equipment like pumps, compressors, and turbines, helping prevent failures by identifying abnormal vibrations.

• Position Sensing: Used for measuring the position of actuators, pistons, and sliders in automation systems, robotics, and manufacturing processes.

• Non-Contact Measurement: Its non-contact technology makes it suitable for high-speed and hazardous environments, where traditional contact-based sensors would be unsuitable.

• Power Generation: The sensor plays a key role in monitoring turbines, generators, and other rotating equipment in power plants to ensure safe and efficient operation.

• Aerospace and Automotive: In aerospace and automotive industries, the sensor is used for testing, inspecting, and aligning critical components during manufacturing to ensure optimal performance.

Product Advantages

• Non-Contact Measurement: The PR6424/112-021 uses eddy current technology, which allows for non-contact measurements that prevent wear and damage, ideal for high-speed or sensitive applications.

• High Accuracy: With ±0.1% accuracy, the sensor offers highly reliable and precise measurements, making it suitable for critical applications in condition monitoring and vibration analysis.

• Compact and Robust Design: The 16mm diameter sensing head is compact and built from corrosion-resistant stainless steel, ensuring durability and reliability in harsh industrial environments.

• High-Frequency Response: The sensor provides high-frequency response, which makes it perfect for dynamic applications such as vibration monitoring in rotating machinery.

• Versatile Output Options: The PR6424/112-021 offers both analog and digital outputs, providing flexibility for integration with various data acquisition and monitoring systems.

• Wide Temperature Range: This sensor operates in temperatures ranging from -20°C to +80°C, making it suitable for a wide range of industrial environments, from cold storage facilities to high-temperature production areas.

• Easy Integration: Its flexible output options allow for easy integration with a variety of signal conditioners, data acquisition systems, and monitoring platforms.

• Energy-Efficient: With a low power supply requirement of 15–30V DC, the sensor is energy-efficient, helping reduce operational costs.

• Long-Term Stability: The sensor is designed for long-term stability and consistent performance, reducing the need for maintenance and providing reliable measurements over time.

• Cost-Effective: The PR6424/112-021 offers a high level of performance at an affordable price, making it an excellent choice for cost-conscious projects.

FAQ

1. How does the Epro PR6424/112-021 sensor work?

The sensor operates based on the eddy current principle. The sensor emits a magnetic field that induces eddy currents in a conductive target. Variations in the eddy currents are detected, and the distance between the sensor and the target is determined.

2. What type of output does the sensor provide?

The PR6424/112-021 offers both analog and digital outputs, allowing for flexible integration into different systems.

3. Can this sensor be used for vibration measurement?

Yes, the PR6424/112-021 is ideal for measuring vibration and displacement in rotating machinery such as turbines, motors, and pumps.

4. What is the measurement range of the sensor?

The PR6424/112-021 can measure displacements up to 10 mm.

5. What is the accuracy of the sensor?

The sensor provides ±0.1% accuracy of full scale, ensuring high precision in all applications.

6. Can the sensor be used for non-contact applications?

Yes, the PR6424/112-021 uses eddy current technology, which makes it perfect for non-contact measurements in high-speed or hazardous environments.

7. What is the temperature range of the sensor?

The sensor operates in temperatures ranging from -20°C to +80°C, making it versatile for various industrial environments.

8. Is the sensor suitable for monitoring machine conditions?

Yes, the PR6424/112-021 is used for condition monitoring, detecting wear, misalignment, and imbalance in machinery to prevent downtime and failures.

9. Can the sensor be integrated with other systems?

Yes, the PR6424/112-021 offers analog and digital outputs that can be easily integrated into data acquisition systems, signal conditioners, and monitoring platforms.

10. Is the sensor ideal for high-speed applications?

Yes, the sensor’s high-frequency response makes it ideal for measuring vibration and displacement in high-speed applications such as rotating equipment and turbines.
