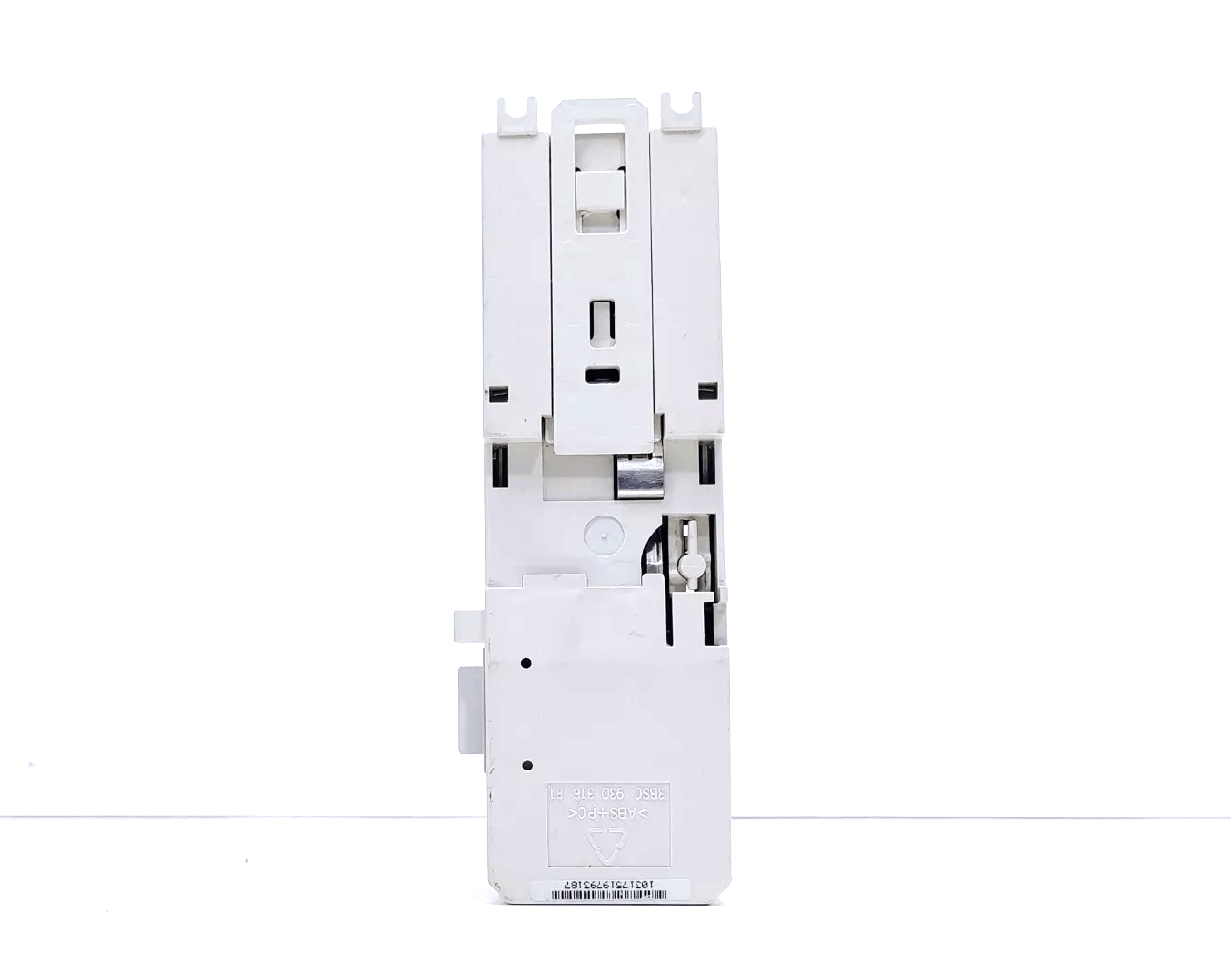

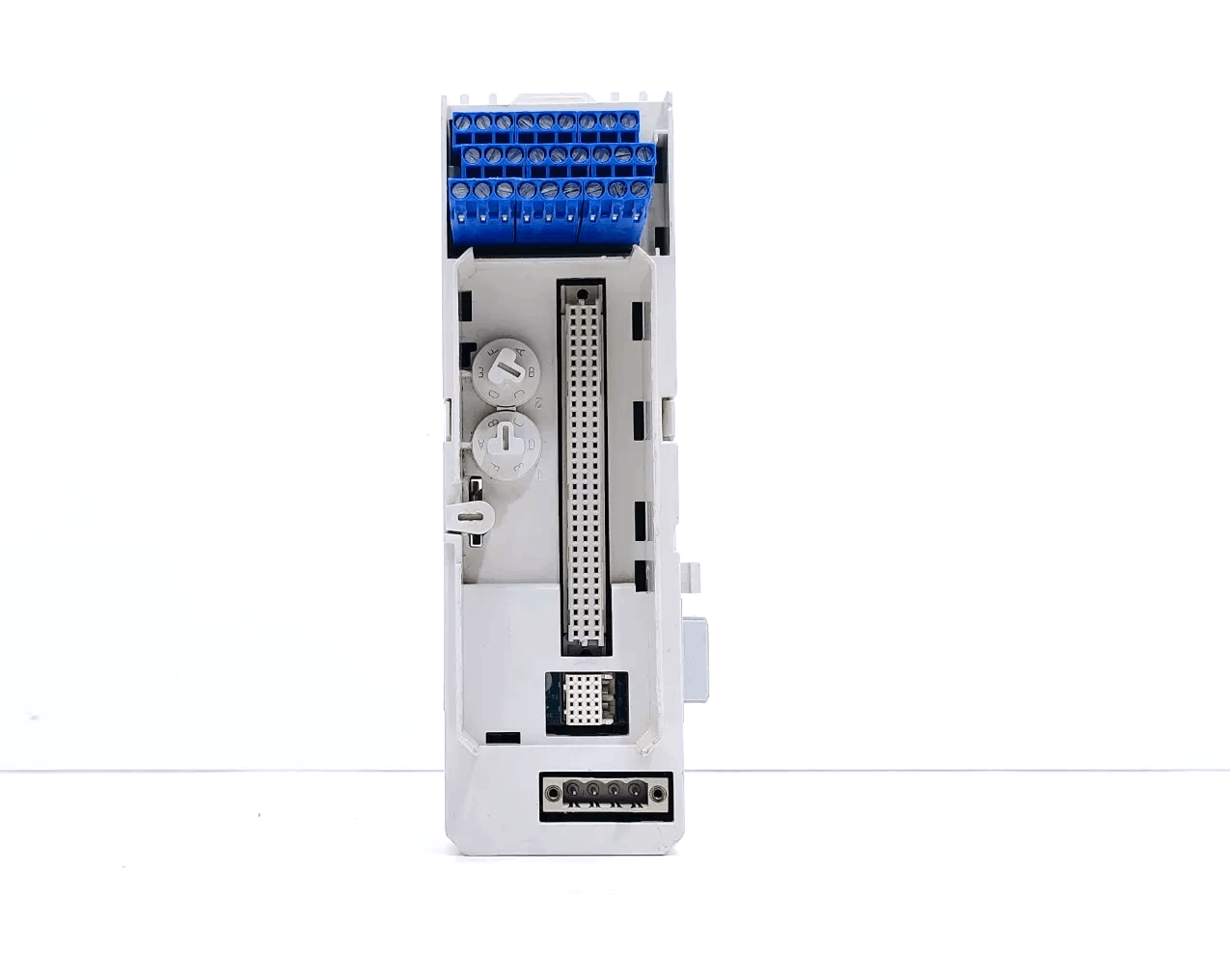

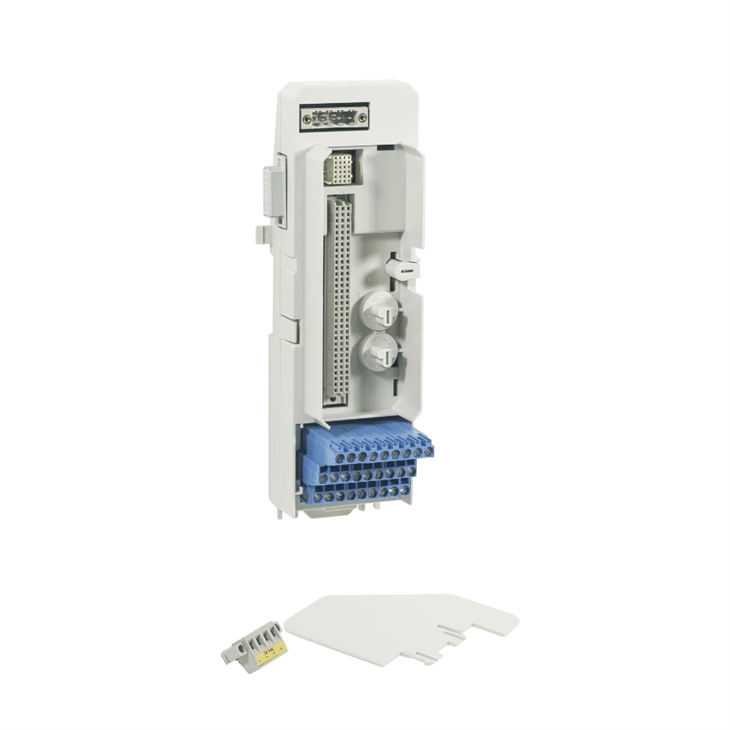

ABB TU890 3BSC690075R1 Module Termination Unit
Item Number:TU890 3BSC690075R1
Brand: ABB
Lead Time: In stock
Description:Module Termination Unit
Payment: T/T
Product Description
ABB TU890 3BSC690075R1 is a compact module terminal unit (MTU) for S800 I/O. As a passive unit, it is mainly responsible for connecting field wiring, connecting power to I/O modules, and is also part of the ModuleBus. The TU891 model of TU890 is equipped with gray terminals for connecting field signals and process voltages. The maximum rated voltage per channel is 50V and the maximum rated current is 2A, but the specific values are limited by the I/O module design and certification application.
This MTU can distribute the ModuleBus to the I/O module and the next MTU, and generate the correct address for the I/O module by moving the outgoing position signal to the next MTU, ensuring stable and orderly communication and data transmission between modules, playing a key role in fields such as automation control.
Fuctions & Features
- Field and Power Connection: The TU891 provides gray terminals for connecting field signals and process power, ensuring connectivity to the I/O modules.
- Maximum Rated Voltage: 50 V
- Maximum Rated Current: 2 A per channel (but limited by the I/O module design for specific certified applications).
- ModuleBus Distribution: The MTU is responsible for distributing the ModuleBus signals to the I/O modules and subsequent MTUs. It also generates the correct addressing signals for the I/O modules by adjusting the outgoing position signal of the next MTU in the chain.
- Intrinsically Safe Applications: TU891 is ideal for use in intrinsically safe applications in combination with modules such as AI890, AI893, AI895, AO890, AO895, DI890, and DO890.
Specification
Dimensions
| Width | 64 mm (1.77 in.) including connector, 58.5 mm (2.3 in.) edge to edge installed |
| Depth | 58 mm (2.28 in.), 106 mm (4.2 in.) including terminals |
| Height | 194 mm (7.6 in.) including latch |
| Weight | 0.17 kg (0.37 lbs.) |
Detailed data
| Maximum current per I/O channel | 2 A |
| Acceptable wire sizes |
Process Connector:
Solid 0.2 - 4 mm² Stranded 0.2 - 2.5 mm², 24 - 12 AWG Recommended torque 0.5 - 0.6 Nm
Power supply connector: 0.25 - 2.5 mm², 24 - 14 AWG Recommended torque 0.5 - 0.6 Nm |
| Dielectric test voltage | 500 V a.c. |
application
- Process control in chemical plants:Use TU891 to connect temperature, pressure and flow sensors, collect data and transmit it to the DCS system.
- Power system monitoring: In substations, use TU891 to connect power sensors to monitor voltage, current and power, and transmit data to energy management systems.
- Oil and gas pipeline monitoring: Used to connect pressure, temperature and flow sensors on pipelines to monitor pipeline status in real time and ensure operation.
- Automation system in water treatment plants: Use TU891 to connect water pumps, valves and sensors to automate and optimize the water treatment process.
