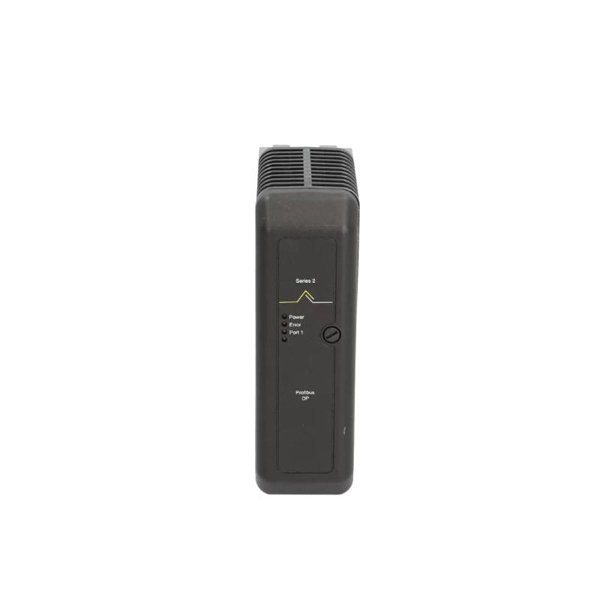

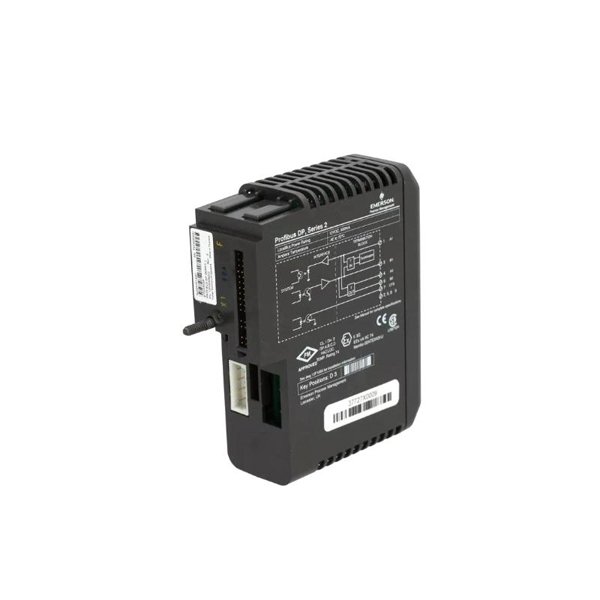

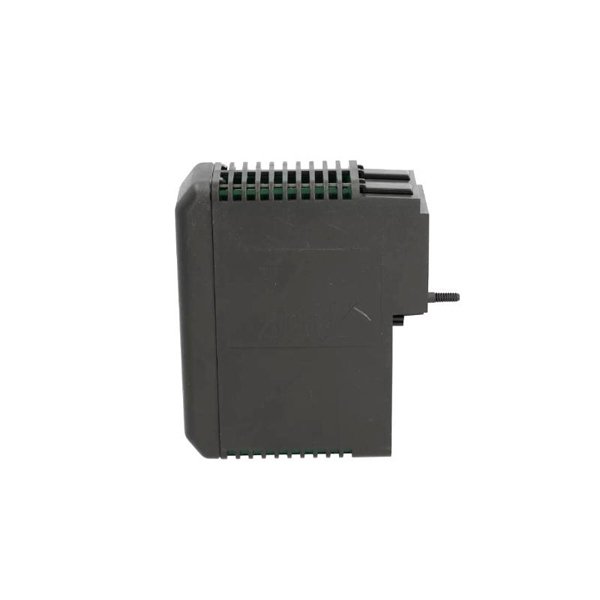

The Emerson KJ3243X1-BA1 Input Module is a high-performance input module designed for use within the DeltaV™ Distributed Control System. It offers reliable and precise data acquisition from field instruments such as temperature sensors, pressure transmitters, and flow meters. This module is part of the Emerson DeltaV™ system, widely used in process control industries to ensure consistent and accurate data collection for efficient monitoring and control of various industrial processes.

The KJ3243X1-BA1 module is engineered for high availability and robustness, ensuring it can handle demanding environments in industries such as chemical processing, oil and gas, pharmaceutical manufacturing, and power generation. It supports multiple analog input channels, allowing for scalable, versatile solutions in automated systems.

Product Parameters

Here are the detailed specifications of the Emerson KJ3243X1-BA1 Input Module:

Applications

The Emerson KJ3243X1-BA1 Input Module is used in various industries and applications, where high-precision analog input channels are needed to interface with field devices. Some common uses include:

1. Process Automation: Ideal for chemical and petrochemical plants, this module is used to collect data from temperature sensors, pressure transmitters, and other devices for process control.

2. Energy and Power Generation: This module is critical for monitoring parameters like temperature, flow rate, and pressure within power plants, ensuring efficient energy management and safety.

3. Pharmaceutical Manufacturing: The KJ3243X1-BA1 is used in pharmaceutical plants where stringent accuracy and regulatory compliance are required to monitor conditions such as temperature and pH levels.

4. Water Treatment and Environmental Monitoring: Used for monitoring water quality, flow, and chemical composition in water treatment plants, this module ensures the proper functioning of systems that treat drinking water or wastewater.

5. HVAC Systems: The module is often utilized in building automation systems to monitor and control the performance of HVAC systems, improving energy efficiency and comfort.

6. Laboratory and Testing Equipment: In laboratories, it is used to interface with a variety of measurement instruments that require precise analog data acquisition.

Advantages

1. High Precision and Accuracy: The KJ3243X1-BA1 provides a 16-bit resolution, with an accuracy of ±0.1% full scale, ensuring that your data collection and control processes are accurate and reliable.

2. Versatile Input Types: It supports multiple input types, including voltage (0-10V, ±10V) and current (4-20mA), which increases flexibility and allows integration with a wide range of field devices.

3. Channel-to-Channel Isolation: Each of the 16 channels on the module is isolated from others, providing enhanced system stability and preventing interference or signal degradation.

4. Seamless System Integration: This module is designed to integrate smoothly with the DeltaV™ system, simplifying setup and operation within a larger automation network.

5. Compact Design: With a compact size of 119.38 ×88.9 ×45.72 mm, the module can easily be accommodated within standard control racks, making it suitable for space-constrained environments.

6. Wide Operating Temperature Range: The module operates in a temperature range from -20°C to +60°C, ensuring reliable performance even in extreme environments.

7. Power-Efficient: The module’s power consumption is a mere 5W, helping reduce overall energy usage in the control system.

8. Certified for Harsh Environments: The KJ3243X1-BA1 meets industry standards with CE, UL, and ATEX certifications, making it suitable for use in hazardous and explosive environments.

9. Easy Diagnostics: Equipped with 16 LEDs for each input channel, it allows operators to quickly diagnose and troubleshoot any problems with the system.

10. Flexible and Scalable: The KJ3243X1-BA1 is scalable, making it a great choice for growing systems that require additional input channels in the future.

Frequently Asked Questions (FAQ)

1. What types of analog signals can be processed by the KJ3243X1-BA1?

   • The module can process both voltage signals (0-10V, ±10V) and current signals (4-20mA).

2. How many channels does the KJ3243X1-BA1 provide?

   • The module provides 16 analog input channels.

3. What is the input accuracy of the KJ3243X1-BA1?

   • The accuracy of the module is ±0.1% full scale.

4. What is the power consumption of the KJ3243X1-BA1 module?

   • The typical power consumption is 5W.

5. Can the KJ3243X1-BA1 module be used in hazardous environments?

   • Yes, the module is CE, UL, and ATEX certified, making it suitable for use in hazardous environments.

6. What is the operating temperature range of the module?

   • The module operates in a temperature range from -20°C to +60°C.

7. How is the module integrated into the DeltaV™ system?

   • The KJ3243X1-BA1 can be easily integrated into the DeltaV™ Distributed Control System, using the system’s software for configuration and monitoring.

8. What kind of devices can be connected to the module?

   • The module is compatible with various field instruments, including temperature sensors, pressure transmitters, and flow meters.

9. Is there any channel-to-channel isolation provided?

   • Yes, the KJ3243X1-BA1 offers channel-to-channel isolation, which helps prevent cross-talk and ensures reliable data collection.

10. What are the dimensions of the KJ3243X1-BA1 module?

    • The dimensions are 119.38 ×88.9 ×45.72 mm.
