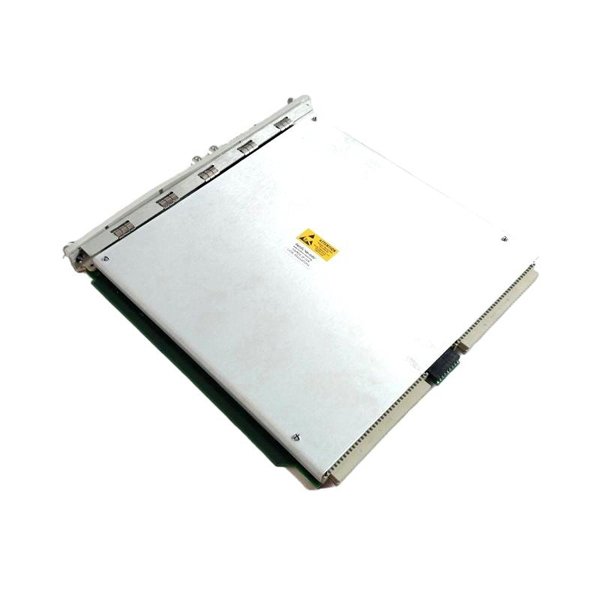

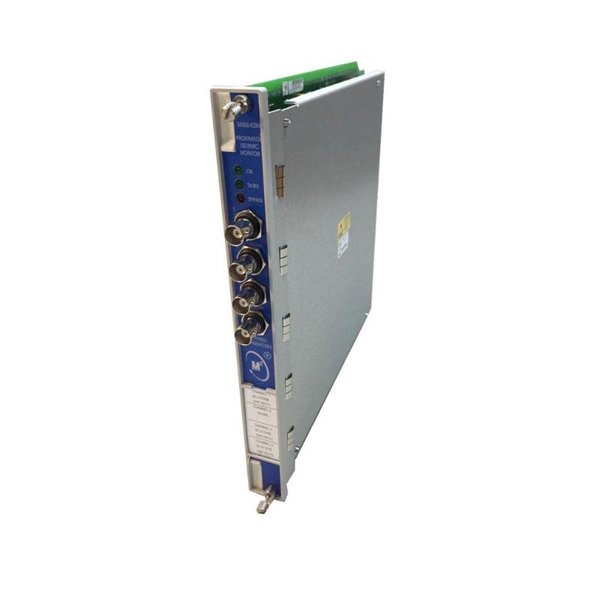

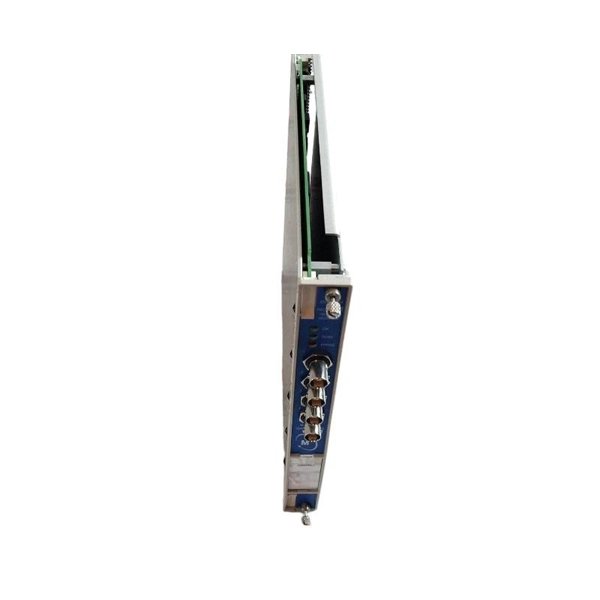

The Bently Nevada 3500/42 176449-02 + 128229-01 Proximitor Seismic Monitor is a precision-engineered monitoring device designed for real-time vibration and seismic activity detection in critical industrial machinery. As part of the esteemed 3500 series, this device provides accurate and reliable data that helps operators identify seismic disturbances and vibrations, ensuring that potential issues are caught early before they lead to equipment failure or unplanned downtime.

This seismic monitor is widely used in industries such as power generation, oil and gas, mining, and heavy manufacturing. It is particularly effective in monitoring machinery such as turbines, generators, compressors, and other vital equipment, providing operators with detailed insights into the health of their assets. The 3500/42 is designed to work in the harshest environments, with a NEMA 4X-rated enclosure that protects it from dust, moisture, and temperature extremes.

By integrating seamlessly with other Bently Nevada monitoring systems, the 3500/42 forms part of a comprehensive machinery health monitoring network, ensuring maximum protection for industrial assets. The system’s real-time monitoring capability enables early detection of issues, helping extend the life of machinery and reduce maintenance costs.

Product Specifications

Product Applications

The 3500/42 Proximitor Seismic Monitor is designed to be used in a wide variety of industrial applications where machinery reliability is critical. It can be deployed across different sectors, including:

1. Power Plants: Continuous monitoring of turbines, generators, and other critical power generation equipment to detect abnormal vibrations and seismic disturbances that could cause damage.

2. Oil & Gas: Protecting offshore rigs, onshore drilling operations, and refining equipment by detecting seismic events and vibrations that may indicate potential failures.

3. Mining: Monitoring mining machinery and equipment, ensuring that vibrations and seismic disturbances do not lead to operational downtime or catastrophic failure.

4. Manufacturing: Providing protection for heavy industrial equipment, such as presses, rollers, and conveyors, by detecting abnormal vibrations and seismic events that could disrupt manufacturing processes.

5. HVAC Systems: Detecting any seismic or vibrational disturbances in HVAC systems to ensure operational continuity and prevent equipment failure.

Product Advantages

• High Precision: The 3500/42 delivers highly accurate measurements, ensuring that any seismic or vibration anomalies are detected in real time before they can affect machinery performance.

• Rugged and Durable: With its NEMA 4X-rated enclosure, the 3500/42 is designed to withstand extreme environmental conditions such as high humidity, dust, and temperature fluctuations.

• Seamless Integration: The device integrates smoothly with other Bently Nevada products, offering a unified solution for complete machinery health monitoring.

• Real-Time Monitoring: The 3500/42 provides continuous, real-time alerts about seismic and vibration abnormalities, enabling operators to take immediate corrective actions.

• Minimal Maintenance: The design of the 3500/42 ensures low maintenance needs while maintaining optimal performance and reliability over time.

• Cost Efficiency: By preventing major equipment damage and minimizing downtime, the 3500/42 helps reduce maintenance and repair costs, improving overall operational efficiency.

FAQ (Frequently Asked Questions)

1. What is the purpose of the 3500/42 Proximitor Seismic Monitor?

   • The 3500/42 monitors seismic activity and vibrations in machinery, detecting any anomalies that could indicate equipment failure or damage.

2. How is the 3500/42 powered?

   • The 3500/42 is powered by a 24 VDC power supply.

3. What type of output does the 3500/42 provide?

   • The device provides a digital output through RS-485 communication.

4. Is the 3500/42 suitable for use outdoors?

   • Yes, it is housed in a NEMA 4X-rated enclosure, making it suitable for outdoor and industrial environments.

5. What is the operating temperature range of the 3500/42?

   • The 3500/42 operates in a temperature range from -40°C to 70°C.

6. How is the 3500/42 mounted?

   • The 3500/42 is designed for panel mounting, which makes it easy to integrate into industrial control systems.

7. Can the 3500/42 be integrated with other Bently Nevada systems?

   • Yes, the 3500/42 integrates seamlessly with other Bently Nevada monitoring devices, creating a comprehensive machinery monitoring solution.

8. What types of seismic sensors are compatible with the 3500/42?

   • The 3500/42 works with seismic sensors that provide input signals such as 4-20 mA and 0-10 VDC.

9. Which industries benefit from using the 3500/42?

   • Industries such as power generation, oil & gas, mining, manufacturing, and HVAC systems benefit from using the 3500/42.

10. What are the key advantages of using the 3500/42?

    • The 3500/42 provides precise seismic monitoring, real-time alerts, easy integration, rugged durability, minimal maintenance, and cost efficiency.
