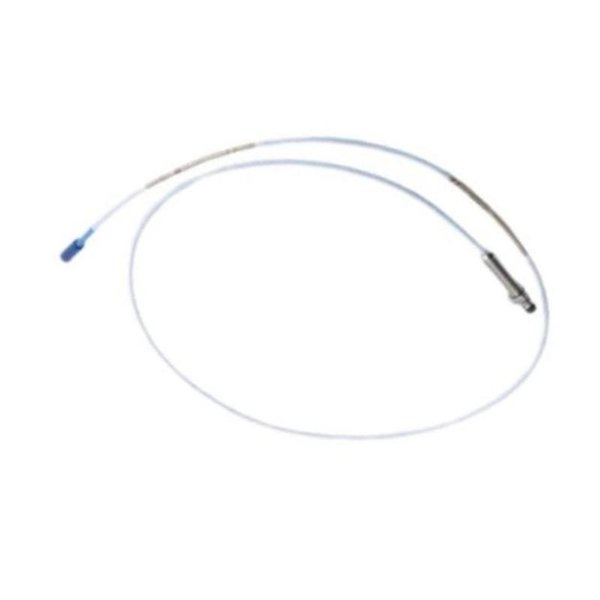

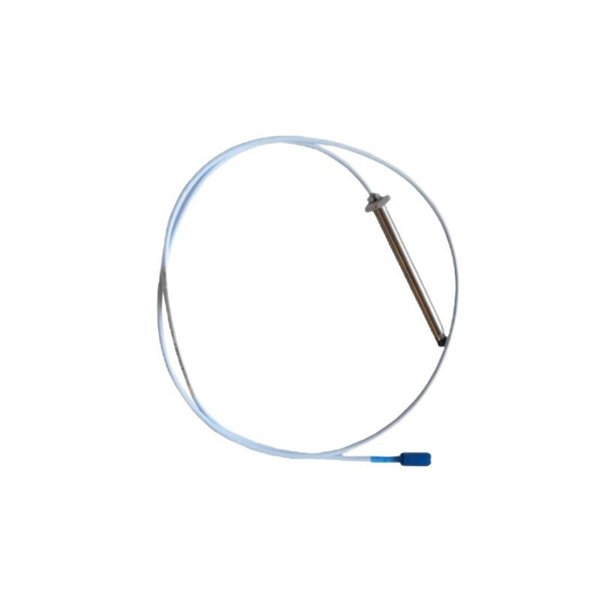

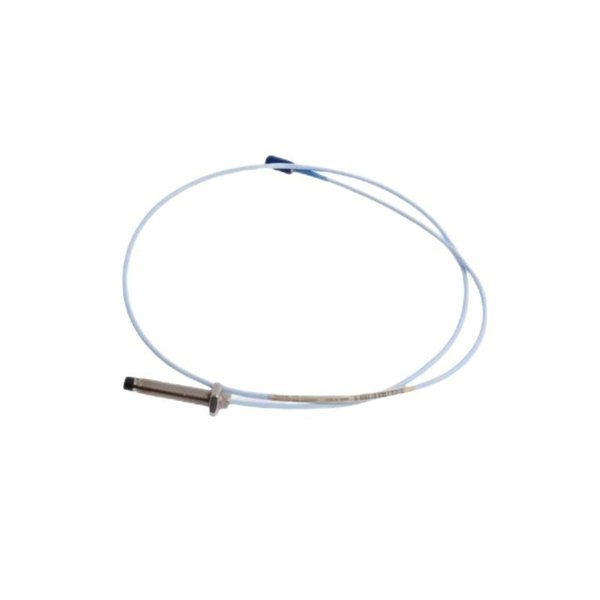

Bently Nevada 330103-00-05-10-11-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-05-10-11-00 is a high-precision 8 mm proximity probe from the industry-leading 3300 XL series. Designed to monitor shaft vibration, position, and displacement, this model features a 10-meter integral coaxial cable, a Shell Type 11 connector, and a configuration code “00”.

This proximity probe is used in combination with Bently Nevada’s Proximitor® sensors to provide real-time condition monitoring and protection for critical rotating equipment. It is commonly deployed in industries such as power generation, oil and gas, petrochemical, and heavy machinery manufacturing.

Key Features

• 8 mm probe tip for standard proximity measurements

• 10-meter (32.8 ft) integral coaxial cable

• Shell Type 11 connector for secure and system-compatible connection

• Compatible with Bently Nevada 3300 XL Proximitor® systems

• Stainless steel construction for long-term durability

• Shielded design for resistance to EMI and environmental interference

• IP67-rated for dust and water ingress protection

• Factory-calibrated for plug-and-play installation

• Reliable linearity and frequency response for dynamic monitoring

Technical Specifications

Industry Applications

• Power Generation – Monitoring gas/steam turbine shafts, generator bearing vibrations

• Oil & Gas – Compressor and pump protection systems

• Petrochemical – Continuous process machinery diagnostics

• Marine Engineering – Propulsion shaft alignment and radial positioning

• Steel & Mining – Motors, crushers, fans, and critical rotating equipment

• Industrial Automation – Spindles, conveyor systems, and drive units

Product Advantages

• High Reliability – Delivers consistent and repeatable shaft position measurements

• Long-Distance Installation – 10-meter cable supports flexible deployment scenarios

• Robust Construction – Designed to withstand high temperatures and industrial contaminants

• EMI Shielded Cable – Ensures accurate signal transmission in noisy environments

• System Compatibility – Integrates effortlessly with Bently Nevada Proximitor® modules

• Global Compliance – Certified for use in regulated environments

• Low Maintenance – Pre-calibrated and sealed for extended field operation

• Flexible Mounting Options – Available in various thread configurations

Frequently Asked Questions (FAQ)

1. Q: What is the total cable length for this probe?

   A: 10 meters (32.8 feet) integral coaxial cable.

2. Q: What does the “11” in the connector type mean?

   A: It refers to Shell Type 11, a Bently Nevada standardized connector for Proximitor® systems.

3. Q: Is this probe compatible with all Bently Nevada systems?

   A: It is specifically designed for 3300 XL Proximitor® systems.

4. Q: What is the function of the configuration code “00”?

   A: It indicates a default or standard configuration as defined by the factory.

5. Q: Can this probe be used in outdoor installations?

   A: Yes, with its IP67 rating, it is suitable for outdoor and industrial environments.

6. Q: Is the probe pre-calibrated?

   A: Yes, it is factory-calibrated and does not require user calibration.

7. Q: What is the probe tip size?

   A: 8 mm, which is the standard tip diameter for the 3300 XL series.

8. Q: What is the sensing range of the probe?

   A: Typically 0.15 mm to 5.00 mm in linear operation.

9. Q: What temperatures can this probe handle?

   A: –40°C to +120°C (–40°F to +248°F).

10. Q: Can the cable be extended or detached?

    A: The cable is integral (fixed); for extension, use 3300 XL extension cables.
