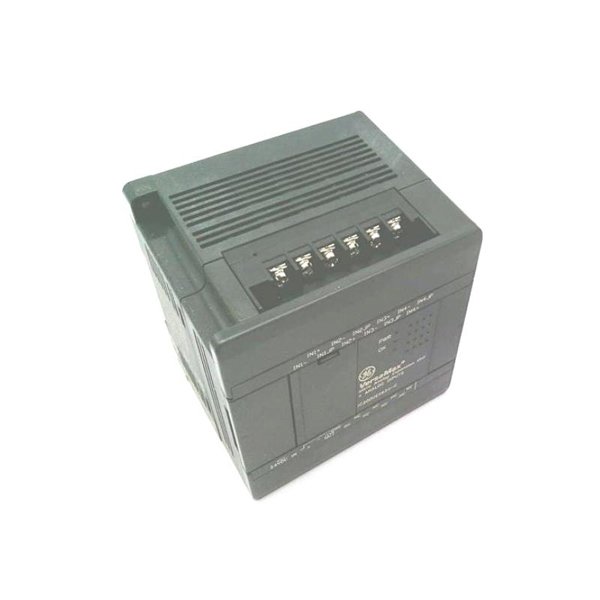

General Electric IC200UEX624-A VersaMax Micro Expansion Module
Manufacturer:GE
Product Number:IC200UEX624-A
Product Type:VersaMax Micro Expansion Module
Origin:USA
Dimensions:95 x 90 x 76 mm
Weight:0.367 kg
Views:64
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC200UEX624-A is a 4-channel analog input expansion module designed for the VersaMax Micro PLC series. It enables the addition of analog input capabilities to existing PLC systems, facilitating precise monitoring and control of analog signals in industrial automation applications.
Technical Specifications
| Parameter | Specification |
| Model Number | IC200UEX624-A |
| Series | VersaMax Micro |
| Analog Inputs | 4 channels (voltage or current inputs) |
| Input Voltage Range | 0 to 10.23 VDC |
| Input Current Range | 0 to 20.5 mA |
| Resolution | 12-bit |
| Accuracy | ±1% of full scale over operating temperature range |
| Power Supply | 24 VDC |
| Power Consumption | 3 Watts |
| Dimensions (W x H x D) | 95 x 90 x 76 mm |
| Weight | 0.367 kg |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0°C to 60°C |
| LED Indicators | “OK” and “Local Power Mode” LEDs |
| Expansion Capability | Supports up to 4 analog expansion units per VersaMax Micro PLC |
| Certifications | CE, UL, cUL |
Applications
The IC200UEX624-A module is suitable for various industrial applications, including:
-
Process control systems requiring analog signal monitoring
-
Temperature and pressure measurement in manufacturing
-
Flow and level sensing in water treatment facilities
-
Data acquisition systems in research and development
-
Energy management systems monitoring voltage and current
Advantages
Enhanced Analog Input Capability: Adds four analog input channels to existing PLC systems.
Compact Design: Space-saving form factor suitable for constrained installations.
High Accuracy: ±1% full-scale accuracy ensures precise measurements.
Flexible Mounting Options: Supports both DIN rail and panel mounting.
Easy Integration: Seamlessly integrates with VersaMax Micro PLCs.
Frequently Asked Questions (FAQ)
1. What is the primary function of the IC200UEX624-A module?
It provides four additional analog input channels to a VersaMax Micro PLC system, allowing for the monitoring of analog signals such as voltage and current.
2. Can this module be used with other PLC series?
It is specifically designed for the VersaMax Micro series and may not be compatible with other PLC series.
3. What types of analog signals can it process?
It can handle both voltage (0 to 10.23 VDC) and current (0 to 20.5 mA) input signals.
4. How is the module powered?
It operates on a 24 VDC power supply.
5. What is the resolution of the analog inputs?
The module offers a 12-bit resolution for analog inputs.
6. How many expansion modules can be added to a VersaMax Micro PLC?
Up to four analog expansion modules can be connected to a single VersaMax Micro PLC.
7. What are the dimensions and weight of the module?
It measures 95 x 90 x 76 mm and weighs 0.367 kg.
8. Are there any indicators on the module?
Yes, it features “OK” and “Local Power Mode” LED indicators for status monitoring.
9. Is the module suitable for harsh industrial environments?
With its CE, UL, and cUL certifications, it meets standards for industrial applications.
10. How is the module mounted?
It can be mounted on a DIN rail or directly onto a panel, offering flexibility in installation.
