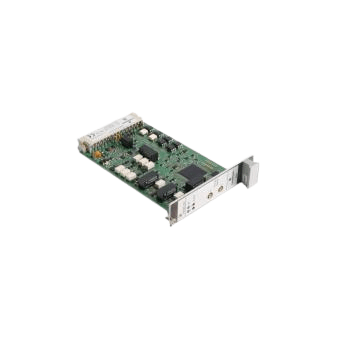

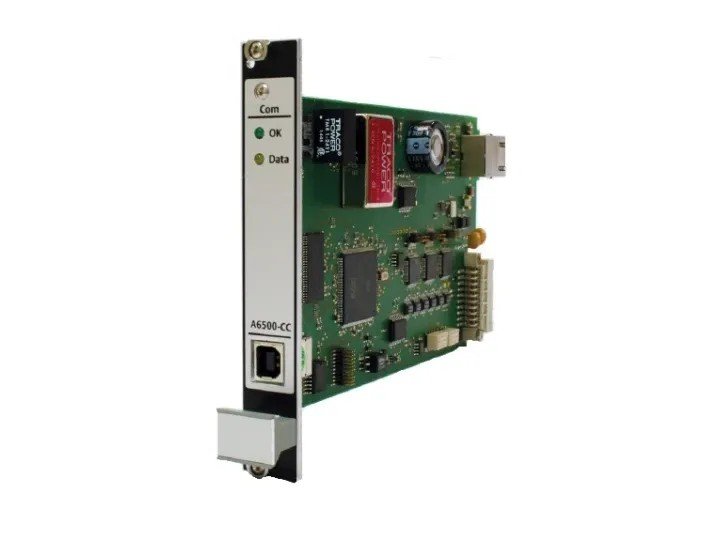

The Emerson EPRO A6500-CC ModBus and Rack Interface Module is designed for high reliability for the plant’s most critical rotating machinery. It reads parameters from all AMSA6500 ATG modules and outputs these parameters through ModBus TCP/IP and/or ModBus RTU (serial).

In addition, OPC UA is available for data transmission to third party systems. This 1-slot monitor is used together with other AMSA6500 ATG monitors to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors, and hydro turbo machinery.

Operators are provided machinery health parameters in the control environment for  seamless integration. The module powers local graphical displays at the protection    rack for machine and instrumentation readout. Either ModBus TCP/IP or ModBus RTU or OPC UA can be configured, or for redundant path, can be used simultaneously.

Specifications

• Weight: 170 g
• Special Packaging
• Operating Temperature: -20 to 70°C (-4 to 158°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 5-95%, non-condensing
• Vibration: 0.15 mm (10 to 55 Hz), 20 m/s² (55 to 150 Hz)

Features

• API 670 Standard TSI Protection System
• Integrated predictive features include PeakVue technology and bandpass filters
• Interface with other applications via OPC UA, Modbus TCP/IP, or Modbus RTU
