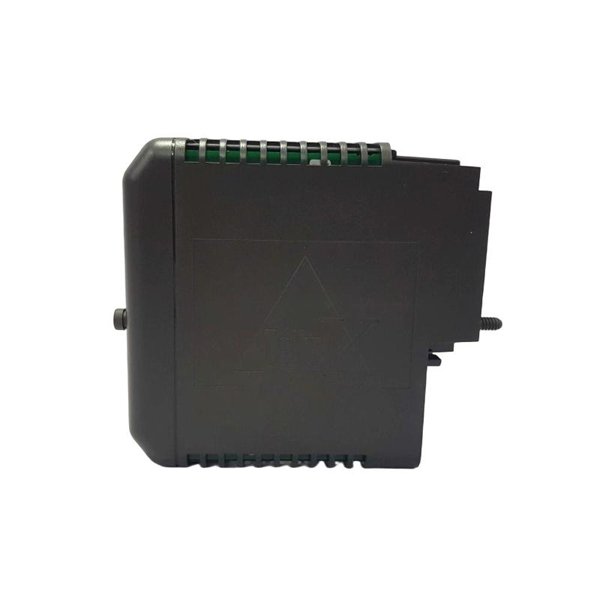

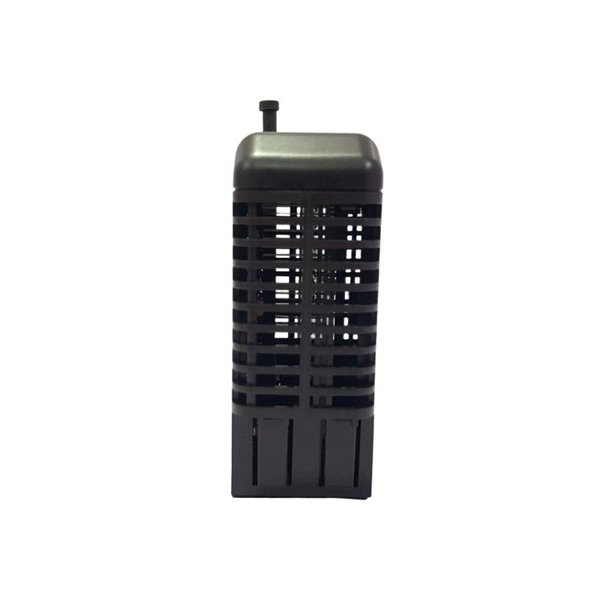

The Emerson VE4001S2T2B3 Discrete Input Card is an 8-channel module engineered for high-reliability data acquisition in Emerson DeltaV™ and Ovation™ distributed control systems. Designed to capture on/off field signals with exceptional speed and accuracy, it ensures dependable operation in demanding industrial environments such as power generation, oil & gas, chemical processing, and manufacturing automation. The module’s rugged construction, wide operating range, and hot-swappable design make it ideal for critical applications where continuous plant operation and precise control are essential.

Product Parameters

Applications

• Process Automation – Real-time monitoring of pump start/stop signals, valve limit switches, and motor status in chemical and pharmaceutical plants.

• Power Generation – Captures turbine trip signals, boiler interlocks, and emergency alarms for secure plant operation.

• Oil & Gas – Interfaces with wellhead sensors, pipeline emergency shutdown circuits, and offshore platform safety systems.

• Water & Wastewater – Monitors pump station alarms, filtration system signals, and automated control equipment.

• Manufacturing Lines – Tracks conveyor system status and machine cycle signals to ensure high production efficiency.

• Building Automation – Integrates fire alarm panels and HVAC equipment status into central monitoring networks.

Advantages

• Eight Isolated Inputs – Provides precise measurement of multiple field signals with high noise immunity.

• Fast Signal Response – Typical response under 5 ms for accurate real-time control.

• High Electrical Isolation – 1500 V RMS channel-to-bus isolation safeguards system electronics.

• Redundant Communication – Dual DeltaV™ I/O bus ensures reliable and uninterrupted data transfer.

• Hot-Swappable – Module can be inserted or removed without powering down the system, minimizing downtime.

• Energy Efficient – Low 4 W power consumption reduces heat and operational costs.

• Robust Environmental Ratings – Operates in extreme temperatures and high humidity conditions.

• Certified for Hazardous Locations – CE, UL, CSA, and ATEX Zone 2 approvals guarantee safe deployment in critical industrial sites.

FAQ

1. How many discrete inputs does the VE4001S2T2B3 provide?

   It offers eight individually isolated digital input channels for flexible field integration.

2. What is the supported input voltage range?

   Each channel accepts signals between 18 and 32 VDC and is compatible with dry-contact inputs.

3. What is the typical input response time?

   Less than 5 milliseconds, enabling rapid detection of signal changes for real-time control.

4. Can this card be hot-swapped during operation?

   Yes, it can be installed or removed without shutting down the DeltaV™ or Ovation™ system.

5. How much electrical isolation is provided?

   The module provides 1500 V RMS isolation between channels and the system bus to reduce noise and ground faults.

6. Which communication protocol is used?

   It communicates over the redundant DeltaV™ I/O bus, ensuring secure and stable data transmission.

7. Does the module require a separate power supply for inputs?

   No extra supply is needed; field voltage within the specified range powers the inputs.

8. Is it suitable for hazardous or classified areas?

   Yes, it is certified for ATEX Zone 2 and meets CE, UL, and CSA standards for hazardous installations.

9. How is field wiring connected to the module?

   Through standard DeltaV™ carriers and terminal blocks that allow quick, reliable wiring.

10. What control systems are compatible with this module?

    It integrates seamlessly with Emerson DeltaV™ and Ovation™ distributed control systems.
