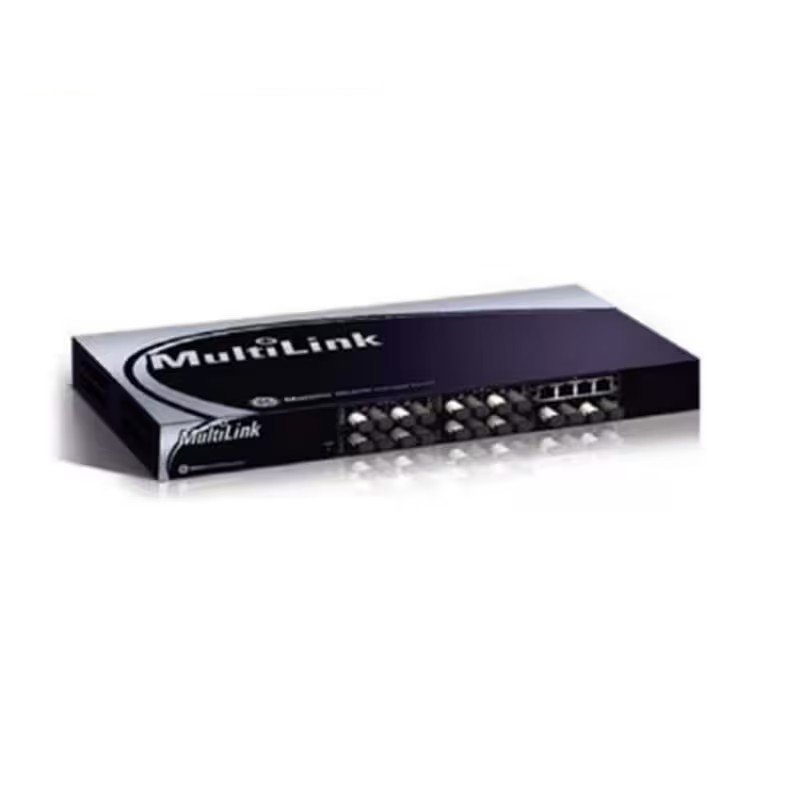

The MultiLink ML2400 is a rugged Ethernet switch designed for utility substations and industrial environments. It ensures reliable communication with features like Link-Loss-Alert and SMART RSTP for quick fault recovery. The switch provides high network security, limiting access to authenticated users. It offers a modular design with flexible configurations and supports both copper and fiber optic Ethernet ports.

Technical Specifications

• Network Features:
  • Link-Loss-Alert for fast fault detection and recovery.
  • SMART RSTP (Rapid Spanning Tree Protocol) for quick recovery from network faults.
  • Network Security: Authentication-based access control for network management.
  • Ethernet Ports: Supports copper and fiber optic ports including ST, SC, LC, MTRJ, and RJ45.
  • Speeds: 10Mbit, 100Mbit, and 1000Mbit per second.
• Modular Design:
  • Configurable for various applications with flexible port placement (front or rear).
  • Suitable for a variety of media types and devices found in substations and industrial environments.
• Redundant Power Supply:
  • Option for dual redundant power supplies (High-High or High-Low).
  • Ensures continuous operation even if one power source fails.
• Power Supply:
  • AC Voltage: 100-240 VAC.
  • HI Voltage: 110-250 VDC / 100-240 VAC.
  • LO Voltage: 36 VDC–60 VDC.
  • Dual AC and DC Input: The same power supply can handle both AC and DC input.
• Operating Environment:
  • Hardened for industrial use, with resistance to harsh conditions in substations and industrial settings.
• Dimensions: 442 x 44 x 290 mm (W x H x D).
