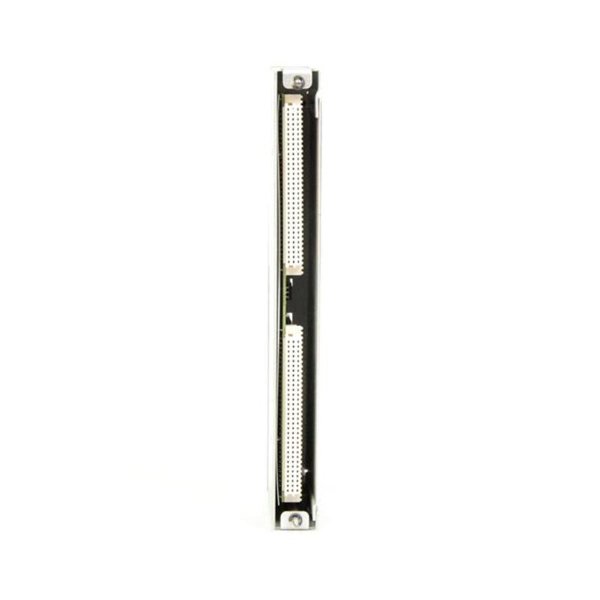

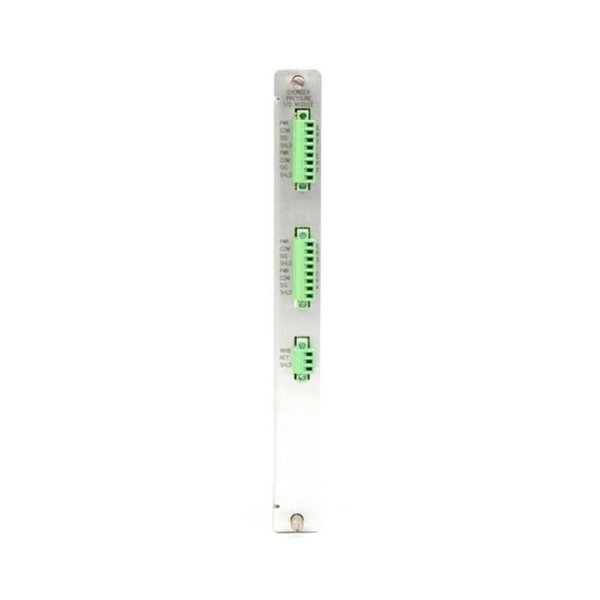

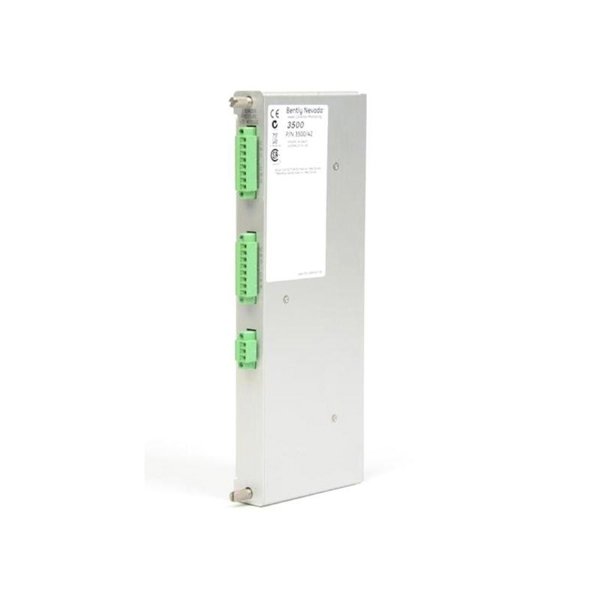

The Bently Nevada 3500/77M-03-00 Cylinder Pressure I/O Module (part number 143729-01) is a key component in the 3500 machinery protection system, designed to monitor cylinder pressure in reciprocating machinery. This module enables continuous measurement and processing of pressure signals from multiple cylinder pressure sensors, facilitating the detection of abnormal operating conditions such as misfires, detonation, or mechanical faults.

The module is engineered for high accuracy and reliability, ensuring timely and precise pressure data essential for protecting compressors, engines, and other reciprocating machines. Integrated within the 3500 rack system, it allows centralized monitoring and advanced diagnostics, contributing to enhanced operational safety and machinery performance.

Technical Specifications

Applications

The 3500/77M-03-00 Cylinder Pressure I/O Module is widely used in:

• Reciprocating compressors and engines for cylinder pressure monitoring

• Detection of combustion anomalies such as misfires and detonation

• Monitoring mechanical integrity of reciprocating machinery cylinders

• Condition-based maintenance programs in petrochemical and power plants

• Enhancing safety and operational reliability of reciprocating equipment

Advantages

• High Accuracy: Provides precise measurement of cylinder pressure signals for reliable diagnostics.

• Fast Response: Real-time data acquisition and processing enable timely fault detection.

• Multiple Channels: Supports multiple cylinder pressure inputs to cover entire machinery.

• Robust Design: Built to endure harsh industrial environments with high vibration and temperature variations.

• Seamless Integration: Easily integrates into the Bently Nevada 3500 rack system for centralized monitoring.

• Improved Safety: Enables early detection of combustion-related faults reducing risk of equipment damage.

• Proven Reliability: Part of Bently Nevada’s trusted machinery protection product line.

Frequently Asked Questions (FAQ)

1. What types of pressure sensors are compatible with this module?

   The module supports analog pressure sensors commonly used for cylinder pressure measurement.

2. How many cylinder pressure channels does the module support?

   The number of channels depends on the system configuration; typically supports multiple cylinders.

3. What is the response time for pressure signal processing?

   The module processes data in real-time with typical response times under 10 milliseconds.

4. Is the module suitable for hazardous environments?

   Installation in hazardous areas depends on system certification and installation practices.

5. What power supply is required for this module?

   Operates on 24 V DC power supplied by the 3500 rack system.

6. Can the module detect combustion-related faults?

   Yes, it can detect misfires, detonation, and other anomalies via cylinder pressure analysis.

7. What maintenance is required?

   Regular functional tests and sensor calibration are recommended to maintain accuracy.

8. Does the module provide diagnostic information?

   Yes, it interfaces with the 3500 system for diagnostics and status monitoring.

9. What are the operating temperature limits?

   The module operates between -40°C and +85°C.

10. What is the typical lifespan of the module?

    With proper maintenance, the module can last over 10 years in industrial environments.
