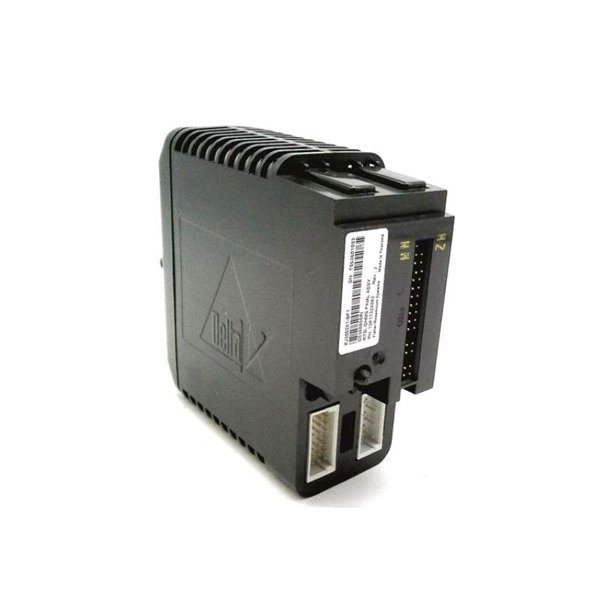

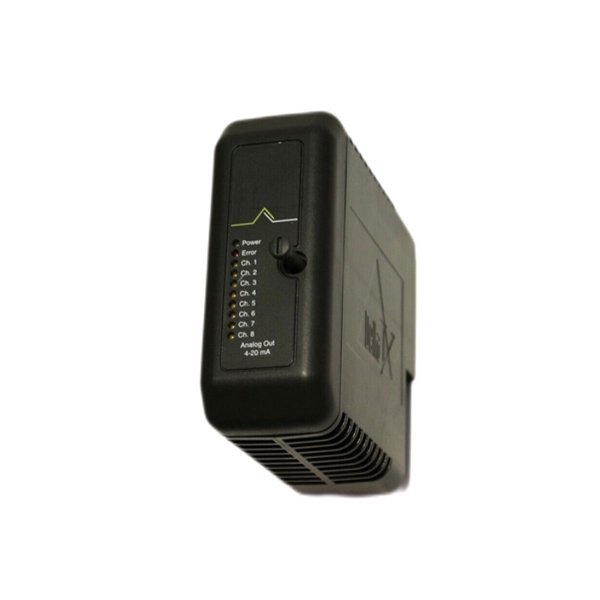

The KJ3002X1-BB1 12P0683X082 Analog Output Module is engineered to provide superior signal conversion capabilities. It interfaces effectively with Emerson’s control systems, offering flexibility and precision in managing analog outputs. This module is particularly suitable for industries where accurate analog signal transmission is essential for optimal process performance.​

Product Specifications

The following table outlines the key specifications of the KJ3002X1-BB1 12P0683X082 Analog Output Module:​

Product Applications

The KJ3002X1-BB1 12P0683X082 Analog Output Module is widely used in various industrial sectors, including:​

• Oil and Gas: For precise control of pressure and flow rates in exploration and production processes.​

• Chemical Processing: To maintain accurate chemical dosing and reactor conditions.​

• Power Generation: In regulating turbine speeds and generator outputs.​

• Water Treatment: For controlling chemical injection and filtration processes.​

• Manufacturing: In automated production lines requiring precise analog control signals.​

Product Advantages

• High Precision: Offers 16-bit resolution, ensuring accurate replication of control signals.​

• Fast Response: With a response time of less than 10 ms, it supports dynamic process adjustments.​

• Wide Operating Temperature: Designed to function effectively between -20°C and 60°C, suitable for diverse environments.​

• Compact Design: Its dimensions (100 mm x 120 mm x 60 mm) and lightweight (0.5 kg) form factor facilitate easy installation in space-constrained panels.​

• Versatile Output Options: Supports both 4-20 mA and 0-10 VDC outputs, compatible with various control systems.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the KJ3002X1-BB1 12P0683X082 module?

   • It converts digital control signals into precise analog outputs for accurate process control.​

2. How many output channels does this module provide?

   • It offers two output channels.​

3. What are the available output ranges?

   • The module supports 4-20 mA and 0-10 VDC output ranges.​

4. What is the resolution of the analog outputs?

   • It provides a 16-bit resolution for high precision.​

5. What is the response time of the module?

   • The response time is less than 10 milliseconds.​

6. What is the operating temperature range?

   • It operates between -20°C and 60°C.​

7. What are the dimensions of the module?

   • It measures 140 x 90 x 40 mm.​

8. How much does the module weigh?

   • The weight is 1.13 kg.​

9. What input voltage does the module require?

   • It requires a 24 VDC input voltage with a tolerance of ±20%.​

10. In which industries can this module be used?

    • It’s suitable for oil and gas, chemical processing, power generation, water treatment, and manufacturing industries.
