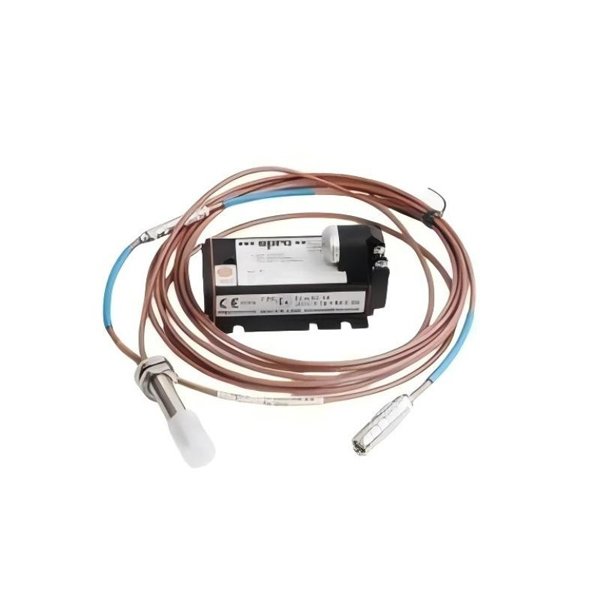

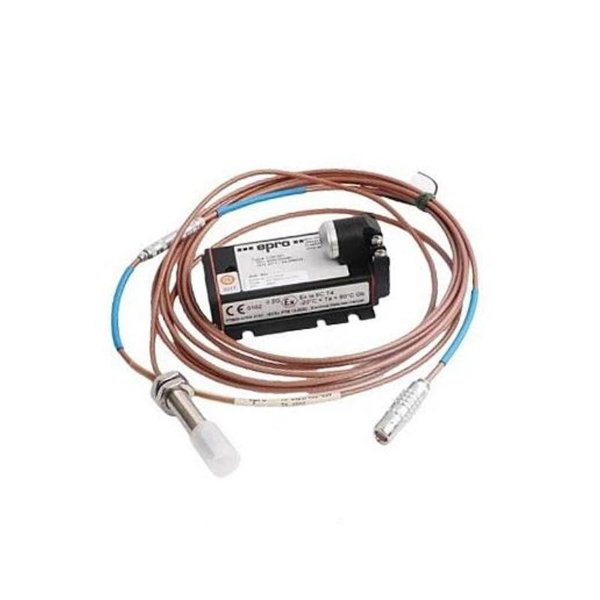

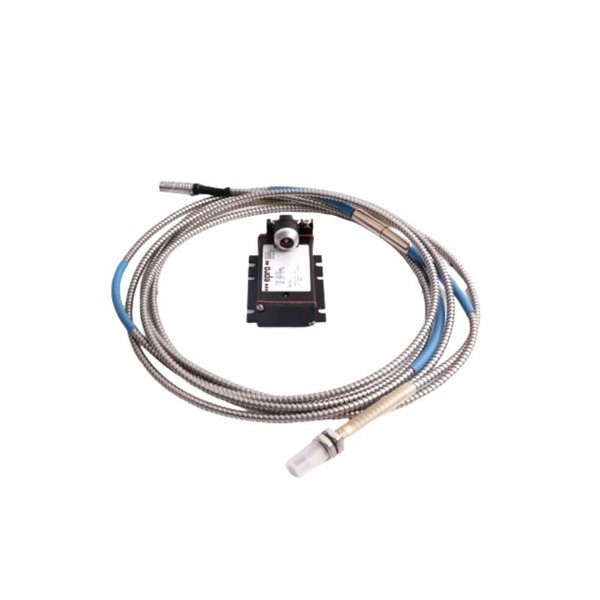

The Epro PR6424/109-021 is a 16mm Eddy Current Sensor, designed for non-contact measurement of displacement, vibration, and position. It operates based on advanced Eddy Current Technology, offering high accuracy, excellent sensitivity, and a fast response time. This sensor is particularly well-suited for applications requiring precise and continuous monitoring of machine parts, rotating equipment, and other critical industrial components.

The PR6424/109-021 features a 16mm sensor head diameter and is ideal for use in environments where non-contact measurement can reduce mechanical wear and enhance system reliability. This makes it a preferred choice in high-speed industrial processes, machinery condition monitoring, and critical asset protection systems.

It provides real-time feedback on the displacement of machinery, allowing for preventive maintenance and monitoring of vibration and position. The sensor’s versatility, durability, and high-precision measurement make it a key tool in industries like power generation, automotive, aerospace, and manufacturing.

Product Specifications

Product Applications

The Epro PR6424/109-021 16mm Eddy Current Sensor is ideal for a wide range of applications, particularly in industries that require precise, real-time monitoring of mechanical components. The following are some of the key applications:

• Machine Condition Monitoring: Used to monitor rotating equipment such as turbines, motors, and pumps, helping detect vibrations or displacement before equipment failure occurs.

• Precision Measurement: Provides precise measurement of shaft positions, tool positions, and other components in industrial systems that demand high accuracy.

• Rotating Machinery: The sensor is perfect for applications where displacement or vibration of rotating parts such as shafts, fans, and motors needs to be measured.

• Automotive Industry: Ideal for use in engine, transmission, and suspension systems, providing position feedback and vibration monitoring.

• Aerospace: Used to monitor the performance and vibration levels of critical aerospace components, such as turbines and engines, to ensure smooth operations and avoid failures.

• Test Equipment: Employed in test rigs and industrial setups for measuring the displacement and vibrations of test samples, ensuring compliance with operational standards.

Product Advantages

• Non-contact Measurement: The PR6424/109-021 provides non-contact measurement, eliminating mechanical wear and reducing the likelihood of damage to both the sensor and the monitored components.

• High Precision: The sensor delivers high-precision measurements with excellent repeatability, making it ideal for applications that require accurate and reliable data.

• Fast Response Time: With a response time of less than 1 millisecond, the sensor is well-suited for dynamic systems that need quick feedback.

• Durability and Protection: The IP65 protection rating ensures that the sensor is dust-tight and resistant to water jets, making it highly durable in challenging industrial environments.

• Compact Size: The 16mm sensor head diameter makes it ideal for integration into tight spaces, which is essential for machinery with limited room for sensor placement.

• Wide Temperature Range: The -40°C to +85°C operating temperature range ensures that the sensor functions in extreme environmental conditions, from industrial sites to outdoor environments.

• Low Maintenance: As a non-contact sensor, the PR6424/109-021 requires minimal maintenance, reducing overall operational costs and downtime.

FAQ

1. What types of signals does the Epro PR6424/109-021 sensor provide?

   • The PR6424/109-021 offers an analog output signal in either 4-20 mA or 0-10 V, depending on the configuration.

2. What is the measurement range of the Epro PR6424/109-021 sensor?

   • The sensor typically has a measurement range from 10 mm to 50 mm, depending on the specific configuration used.

3. What is the operating temperature range of the sensor?

   • The sensor operates within an extensive temperature range of -40°C to +85°C, making it suitable for both extreme cold and hot environments.

4. How is the Epro PR6424/109-021 sensor mounted?

   • The sensor is thread-mounted, allowing for easy and secure installation in industrial machinery and control systems.

5. What is the power supply requirement for the Epro PR6424/109-021?

   • The sensor requires a 15 to 30 V DC power supply to operate effectively.

6. Can the Epro PR6424/109-021 sensor be used outdoors?

   • Yes, with its IP65 protection class, the sensor is dust-tight and can withstand water jets, making it suitable for both indoor and outdoor industrial applications.

7. What is the response time of the Epro PR6424/109-021 sensor?

   • The sensor has an exceptionally fast response time of less than 1 millisecond, making it ideal for real-time monitoring.

8. In which industries is the Epro PR6424/109-021 sensor commonly used?

   • The sensor is commonly used in machine condition monitoring, automotive, aerospace, power generation, and test equipment industries.

9. Why is non-contact measurement beneficial?

   • Non-contact measurement prevents mechanical wear, ensuring greater accuracy and extending the life of both the sensor and the equipment being monitored.

10. How accurate is the Epro PR6424/109-021 sensor?

    • The PR6424/109-021 sensor provides highly accurate and reliable measurements, making it suitable for precision applications with critical tolerances.
