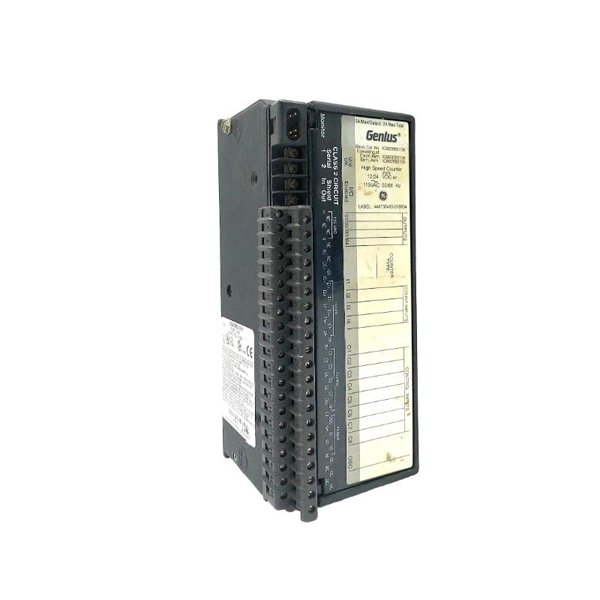

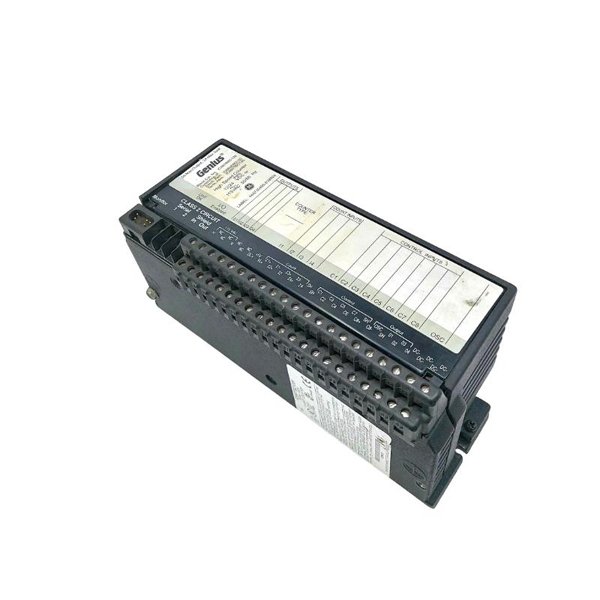

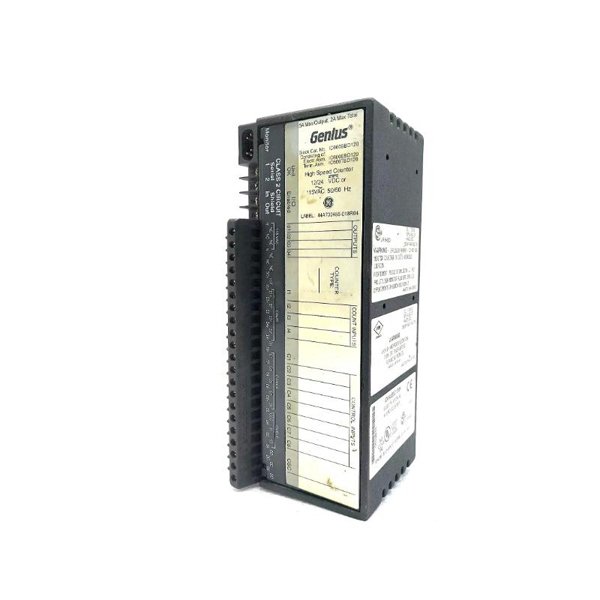

The GE IC660EBD120 I/O Block Electronic Assembly is a rugged and intelligent electronic interface unit designed as part of the GE Fanuc Genius I/O series. This device serves as the internal control and communication unit within a Genius I/O block, managing signal processing and communications between the field devices and host PLC or controller.

Designed to work in distributed control systems, the IC660EBD120 supports a wide range of discrete and analog modules. It is optimized for industrial environments requiring high-speed communication, efficient I/O control, and long-term durability. Whether integrated into a manufacturing plant or utility system, this unit provides the core intelligence for decentralized automation.

Product Specifications

Product Applications

The IC660EBD120 is well-suited for integration into a variety of industrial control and monitoring environments where reliable field I/O communication is critical. Common applications include:

• Industrial Automation Systems: Interfaces sensors and actuators in factory automation processes.

• Oil & Gas Facilities: Used in hazardous locations with intrinsically safe wiring.

• Power Generation Plants: Supports distributed I/O in turbine and generator control.

• Food and Beverage Processing: Ensures hygienic, safe automation and monitoring.

• Material Handling Systems: Manages conveyor and robotic movement.

• Building Management Systems (BMS): Controls HVAC, security, and energy systems.

Product Advantages

• Integrated Intelligence: Embeds local decision-making capabilities and diagnostic functions.

• Reliable Communication: Compatible with Genius Bus for high-speed, deterministic networking.

• Modular Design: Easily replaceable without disturbing field wiring or mounting.

• Flexible Input/Output Handling: Works with a wide range of discrete and analog devices.

• Environmentally Robust: Performs reliably across wide temperature and humidity ranges.

• Reduced Downtime: Built-in LED diagnostics and fault memory for quick troubleshooting.

• Secure Mounting: Supports both DIN rail and panel installations for flexible deployment.

• Long Product Lifecycle: GE’s industrial-grade engineering ensures long-term reliability.

• Easy Integration: Seamlessly integrates with GE PLCs and other control systems.

• Field-Proven Design: Trusted in thousands of industrial installations worldwide.

Frequently Asked Questions (FAQ)

1. What is the main function of the IC660EBD120?

   It controls and processes input/output signals for a Genius I/O block and manages communication with the control system.

2. Can this module be used with non-GE PLCs?

   It is primarily designed for GE Genius I/O networks, but may be integrated with non-GE systems that support Genius protocols.

3. Is this module hot-swappable?

   No, it is not recommended to remove or install while the system is powered on.

4. What voltage range does the IC660EBD120 support?

   It supports 10.8 to 30 VDC input voltage, commonly used in 24V systems.

5. Does the module include diagnostics?

   Yes, it features onboard diagnostic LEDs and memory to help identify issues quickly.

6. Can it be mounted vertically or horizontally?

   Yes, it supports flexible mounting orientations including DIN rail and panel mounting.

7. What’s the maximum number of I/O points this unit can control?

   It supports up to 16 discrete I/O points depending on the I/O block configuration.

8. Does the unit support harsh environments?

   Yes, with an operating range up to 60°C and high humidity tolerance, it is ideal for industrial settings.

9. Is configuration required before use?

   Yes, it requires proper addressing and network configuration to operate within a Genius Bus system.

10. How does the IC660EBD120 differ from IC660EBD110?

    While both are I/O electronics modules, the IC660EBD120 typically supports higher input voltage ranges and added robustness for extended use.
