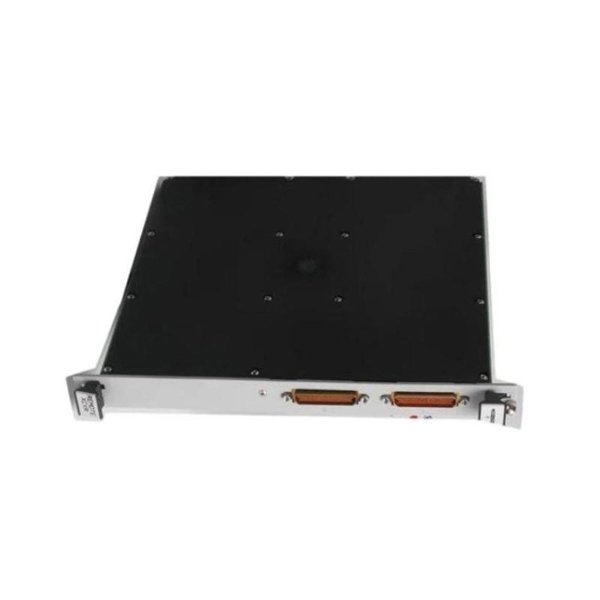

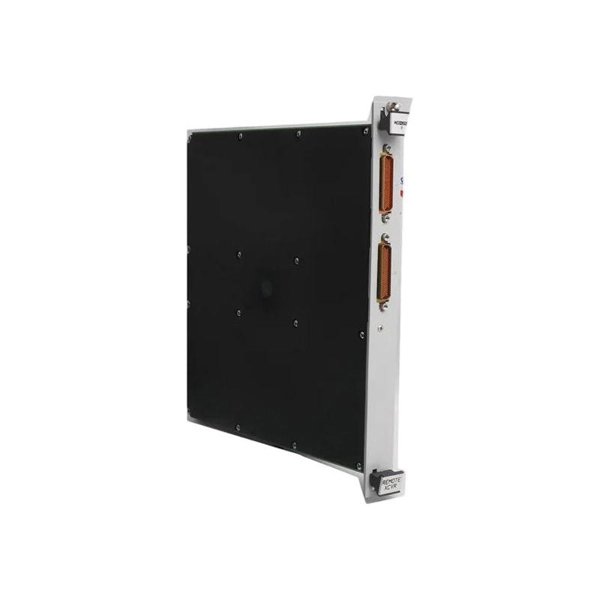

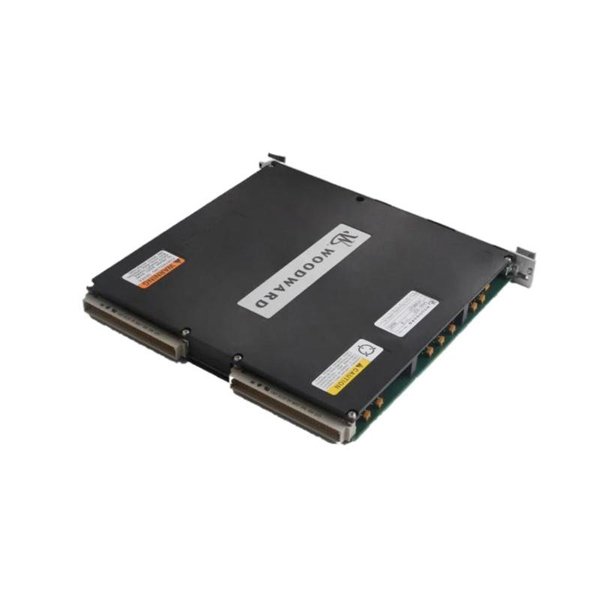

The Woodward 5466‑355 Remote Chassis Transceiver is a high-speed parallel interface module used in Woodward MicroNet and Netcon control systems outfitted with CPU 68040 architecture. It enables high-speed exchange of control, address, and data signals between the Main chassis and one or more Remote I/O chassis using a differential, VME-rate parallel bus and two robust 100‑pin Micro‑D connectors. The module is designed exclusively for installation in Slot 1 of each Remote I/O chassis to ensure proper system operation.

Technical Specifications

Industry Applications

• Modular expansion of Remote I/O chassis in distributed MicroNet and Netcon control architectures

• Deterministic VME-compatible communication for high-reliability control systems

• Ideal for turbine, power generation, and industrial automation platforms requiring scalable I/O

Key Advantages

• Ensures robust and high-speed communication between chassis via parallel differential interface

• Features dual rugged connectors suitable for industrial environments

• Supports scalable system topology, enabling multiple Remote chassis connections

• In-line termination logic preserves signal integrity across chassis

• Modular design widely adopted in Woodward turbine control applications

Frequently Asked Questions (FAQ)

1. Which chassis slot is required for installation?

   Slot 1 in each Remote I/O chassis.

2. Does the module have indicators or controls?

   No. It contains no LEDs, switches, or front‑panel indicators.

3. What interface technology is used?

   High-speed parallel differential interface compatible with VME data rates.

4. How are chassis connected?

   Using dual 100‑pin Micro‑D connectors linking sequential chassis.

5. What systems is the module designed for?

   Woodward MicroNet and Netcon systems with the 68040 CPU architecture.

6. When is the terminated version used?

   In the final Remote chassis to maintain proper bus termination.

7. What is the module’s typical size and weight?

   Approx. 245 × 25 × 261 mm and 0.86 kg.

8. Is the module still available commercially?

   Yes; it is offered by select automation part suppliers and authorized distributors.

9. Can multiple remote chassis be chained?

   Yes, with the terminated variant used at the end of the chain.

10. What is the recommended cable length between chassis?

    Typically 3 m or 10 ft between main and Remote chassis; shorter cables (~0.9 m) to T‑Modules.
