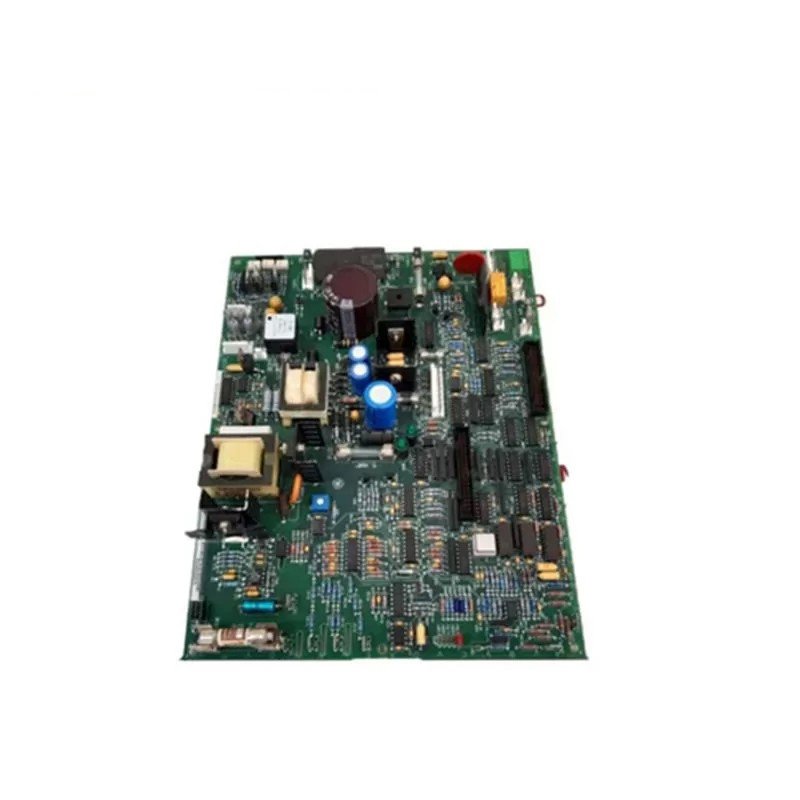

The GE DS200DCPAG1ABB is a sophisticated control processor board integral to the Mark V series, specifically engineered for gas and steam turbine systems. This robust component delivers high reliability and versatility through its support for multiple redundancy modes and extensive connectivity options.

Technical Specifications

Redundancy Modes: Simplex, Dual, and Triple Modular Redundant (TMR) for enhanced system uptime and safety.

Connectors: A variety of vertical pin connectors, ranging from 13 to 20 pins, provide flexible integration with other system components.

Integrated Circuits: The board includes 17 integrated circuits to execute complex control algorithms and functions.

Resistor Network Arrays: Up to 24 resistor network arrays ensure precise signal conditioning and processing.

Components: The board features a comprehensive suite of resistors, transistors, diodes, and capacitors (both large axial and small ceramic types) to support its functionality.

Features

High Reliability: The board leverages multiple redundancy modes to ensure continuous operation and system integrity.

Versatility: Equipped with numerous vertical pin connectors, the board integrates seamlessly into various system configurations.

Robust Processing: Incorporating a substantial number of integrated circuits and resistor network arrays, the board provides advanced control capabilities.

Comprehensive Functionality: Featuring a diverse range of components, the board addresses the demands of gas and steam turbine control systems.

Applications

Gas Turbine Control Systems: The board is a core component for managing and optimizing gas turbine operations.

Steam Turbine Control Systems: The board is essential for regulating and controlling steam turbine performance.

Industrial Automation in Power Generation: The board is broadly applicable in power generation facilities for efficient control and monitoring.
