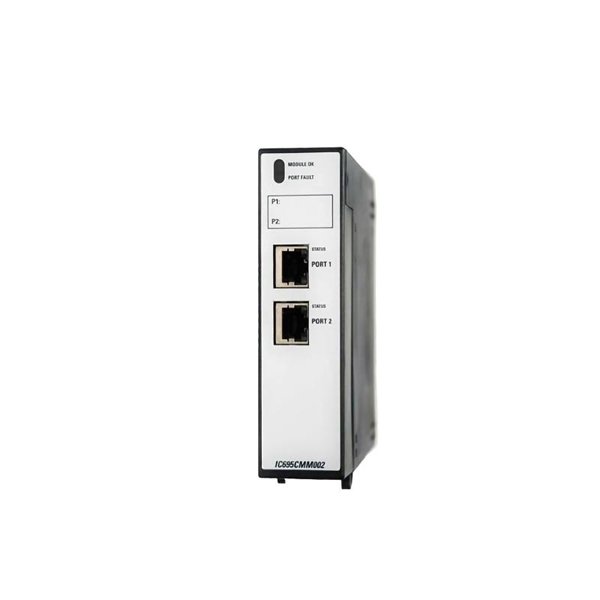

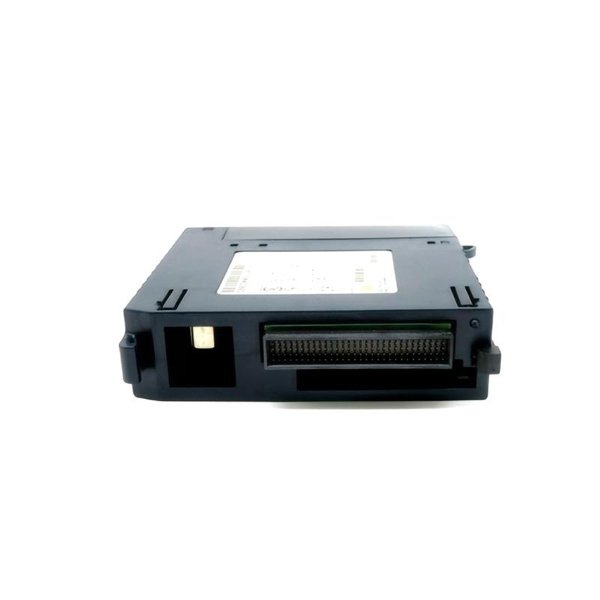

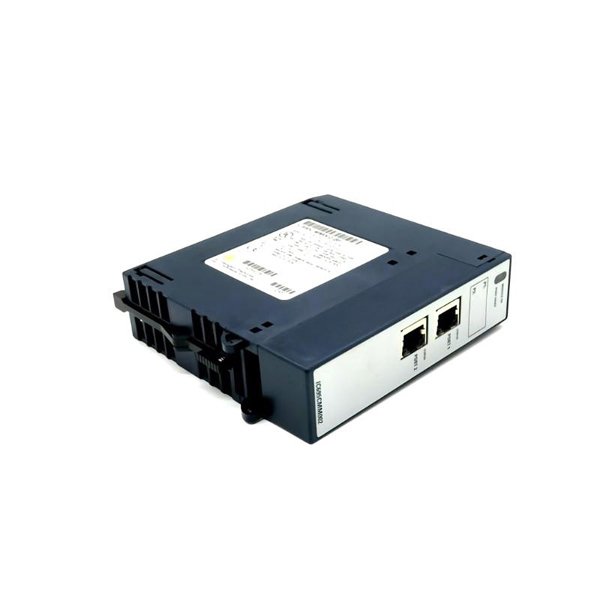

The GE Fanuc IC695CMM002 is a serial communications module designed for the PACSystems RX3i series of programmable logic controllers (PLCs). It provides two independent, isolated serial ports, supporting various communication protocols such as Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, and Serial I/O. This module enables seamless integration and communication with a wide range of serial devices, making it ideal for diverse industrial automation applications.

Product Specifications

Applications

• Industrial Automation: Facilitates communication between PLCs and serial devices such as HMIs, barcode scanners, and other controllers.

• Process Control Systems: Enables integration of various sensors and actuators for monitoring and control.

• Energy Management: Assists in data acquisition from energy meters and other monitoring devices.

• Building Automation: Integrates HVAC systems, lighting controls, and security systems through serial communication.

• Transportation Systems: Connects to devices in traffic management and railway control systems.

• Water and Wastewater Treatment: Interfaces with flow meters, level sensors, and other instrumentation.

Product Advantages

• Versatile Communication: Supports multiple protocols, allowing integration with a wide range of devices.

• Dual Independent Ports: Enables simultaneous communication with multiple devices or networks.

• Electrical Isolation: Protects the system from electrical noise and potential damage.

• Hot Swap Capability: Allows for module replacement without shutting down the system, minimizing downtime.

• Compact Design: Saves space in control panels and facilitates easy installation.

• Robust Construction: Designed to withstand harsh industrial environments.

FAQs

1. What types of communication protocols does the IC695CMM002 support?

   • It supports Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, and Serial I/O protocols.

2. Can the module be used with both RS-232 and RS-485/422 interfaces?

   • Yes, it supports both RS-232 and RS-485/422 communication standards.

3. Is it possible to hot-swap the IC695CMM002 module?

   • Yes, the module supports hot swapping, allowing for replacement without system shutdown.

4. How many IC695CMM002 modules can be installed per CPU?

   • Up to six modules can be installed in the main CPU backplane.

5. What are the power requirements for the module?

   • It requires 0.7 A at 3.3 VDC and 0.115 A at 5 VDC.

6. What is the operating temperature range of the module?

   • The module operates within a temperature range of 0°C to 60°C.

7. Does the module provide electrical isolation?

   • Yes, it offers 250 VAC continuous isolation between ports and the backplane.

8. What are the dimensions and weight of the IC695CMM002?

   • The module measures 134.6 x 165.1 x 30 mm and weighs 0.25 kg.

9. How is the module configured?

   • Configuration is done through Proficy Machine Edition software.

10. What certifications does the IC695CMM002 have?

    • It is certified with UL, CE, ATEX, and IECEx standards.
