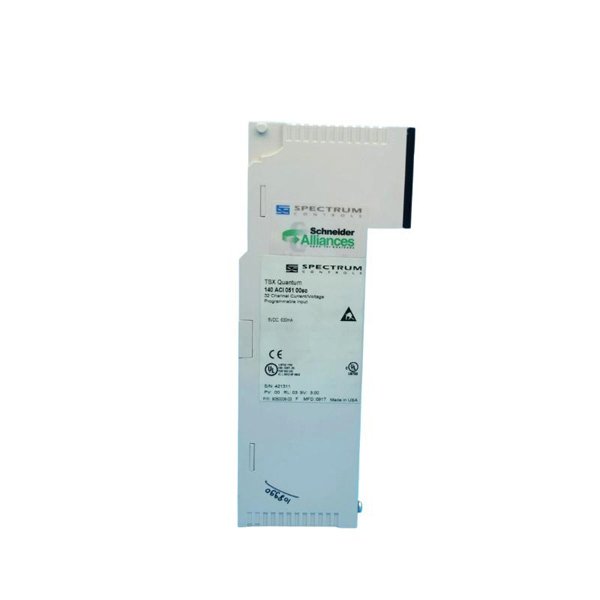

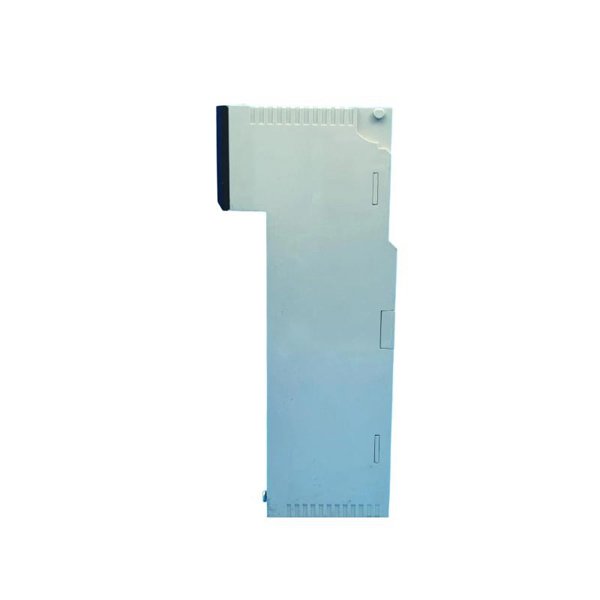

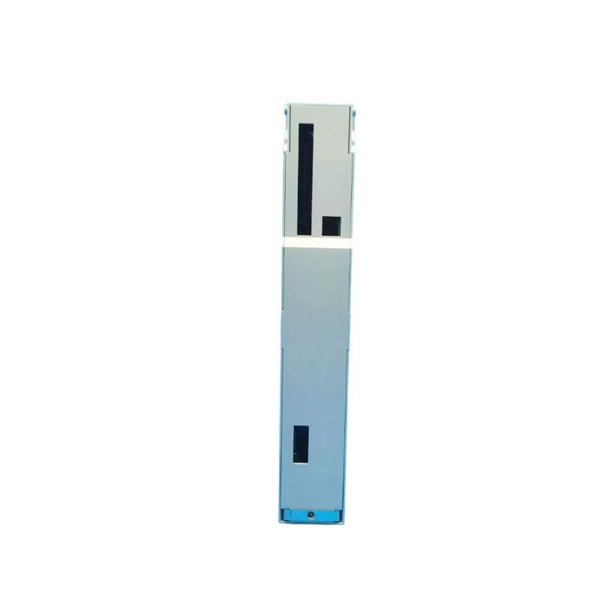

The Schneider 140ACI05100 analog input module, developed in collaboration with Spectrum Controls, is part of the Modicon Quantum series. It is designed to provide precise and reliable analog signal acquisition for industrial automation systems. Featuring 16 channels for voltage input, the module is ideally suited for large-scale data collection in critical process environments.

This module enables seamless integration of field devices such as transmitters and sensors into the Quantum PLC system. The robust design, high resolution, and wide input compatibility make it a trusted choice across various industries including energy, water treatment, and manufacturing. Schneider Electric’s partnership with Spectrum Controls ensures enhanced performance, superior calibration, and long-term reliability.

Product Specifications

Applications

The 140ACI05100 is engineered for industrial environments where large-scale, multi-channel analog signal monitoring is required. It fits well in the following applications:

• Process Automation Systems

  Enables precise measurement of analog signals from temperature, pressure, and flow sensors in process industries.

• Water & Wastewater Treatment

  Ideal for monitoring multiple sensor inputs such as turbidity, pH, and chemical dosing levels.

• Power Generation and Distribution

  Supports high-fidelity analog input acquisition from electrical monitoring equipment.

• Food & Beverage Industry

  Ensures compliance with critical process control standards in hygienic manufacturing environments.

• Chemical and Pharmaceutical Plants

  Enables integration of a wide range of analog instruments for quality control and production accuracy.

• HVAC and Building Automation

  Facilitates control of climate systems through temperature and air flow monitoring.

Product Advantages

• High-Density Input

  Offers 16 voltage input channels in a compact module, reducing rack space and system complexity.

• Robust Electrical Isolation

  Ensures safety and protects equipment from ground loop interference and voltage spikes.

• Flexible Signal Compatibility

  Supports multiple voltage ranges, catering to different signal types from various sensors.

• Stable Performance Across Conditions

  Designed for industrial temperature and humidity ranges with no performance degradation.

• Easy Integration

  Fully compatible with Schneider Modicon Quantum PLC systems and supported by Unity Pro software.

• Reliable Partner Manufacturing

  Developed with Spectrum Controls, combining robust hardware with Schneider’s automation platform.

• Reduced Engineering Effort

  Plug-and-play design minimizes setup time and simplifies wiring.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 140ACI05100 module?

   It is used to receive and digitize voltage-based analog input signals for processing by a Quantum PLC.

2. How many channels are supported?

   The module supports 16 single-ended voltage input channels.

3. Can the module read current signals directly?

   No, it is designed for voltage signals only. Use signal conditioning for current-to-voltage conversion.

4. Does it support differential input configuration?

   No, this model supports only single-ended inputs.

5. Is the module isolated from the PLC backplane?

   Yes, it provides 2500 Vrms isolation between the input channels and the backplane.

6. Can this module be used in hazardous environments?

   Yes, it has certifications such as ATEX and FM for hazardous location compliance.

7. What software is used to program or configure the module?

   Schneider’s Unity Pro (now EcoStruxure Control Expert) is used for configuration.

8. Is calibration required before use?

   No, it is factory-calibrated and ready for deployment out of the box.

9. How do I monitor data from each channel?

   Data is accessed through the PLC application using Unity Pro variable mapping.

10. Can this module be used in conjunction with HART-enabled devices?

    No, the 140ACI05100 does not support HART communication protocol.
