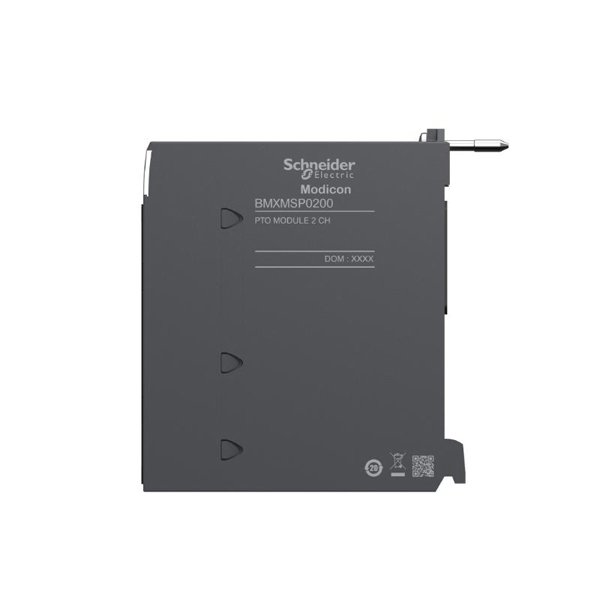

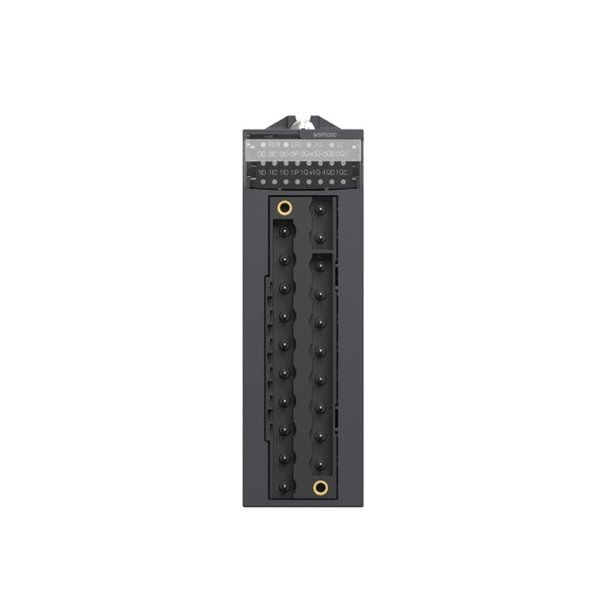

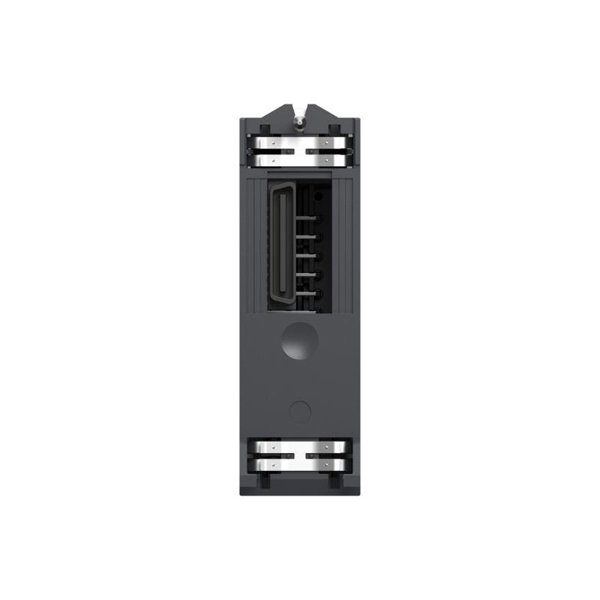

The Schneider BMXMSP0200 Pulse Train Output Module is designed for controlling pulse-based output signals in various industrial automation and control applications. It provides precise control over the output signals, which can be used in a wide range of systems that require pulse trains for driving motors, actuators, or other devices that need time-based control. The module is a part of Schneider Electric’s Modicon series and is known for its high reliability and flexibility in pulse-based control applications.

Product Specifications

Product Applications

The Schneider BMXMSP0200 Pulse Train Output Module is ideal for:

• Motion Control Systems: Used in controlling stepper motors or DC motors, where pulse signals regulate position, speed, and acceleration.

• Automated Manufacturing Systems: For applications requiring precise timing and output, such as controlling rotary or linear actuators.

• Industrial Automation: The module is used in various types of machinery that require pulse-based signals to drive their operations, such as conveyor systems, robotic arms, and packaging machines.

• Process Control: In processes where pulse trains control fluid flow, air pressure, or other critical parameters in real-time.

Product Advantages

• High Output Accuracy: The module ensures high-precision output pulse trains, which are essential for controlling time-sensitive processes in industries like manufacturing and robotics.

• Wide Frequency Range: With an output frequency range from 1 Hz to 1 MHz, it is adaptable to a variety of different applications.

• Compatibility with Modicon Series: Seamlessly integrates with Modicon M340 and M580 controllers, making it a reliable choice for existing systems.

• Compact Design: Its compact form factor allows easy installation in space-constrained environments.

• Durability: Built to withstand harsh industrial environments, ensuring longevity and reliability under continuous use.

• Easy Integration: The module supports straightforward integration into Schneider Electric’s modular automation platforms.

FAQ

1. What is the primary function of the BMXMSP0200 module?

   • The BMXMSP0200 module is designed to generate pulse train outputs, which can control various devices like motors, actuators, and other machinery that require precise time-based signals.

2. Which controllers are compatible with this module?

   • The module is compatible with Schneider Electric’s Modicon M340 and M580 controllers.

3. What is the frequency range for the output pulse signals?

   • The output frequency range for the pulse train signals is from 1 Hz to 1 MHz.

4. How many pulse train outputs does the module provide?

   • The module provides two pulse train outputs.

5. Can the BMXMSP0200 module be used in motion control applications?

   • Yes, it is highly suitable for motion control applications, especially for controlling stepper motors and other devices requiring pulse signals.

6. What is the operating temperature range for the module?

   • The operating temperature range for the module is from -20°C to 60°C, with a storage temperature range of -40°C to 85°C.

7. How is the module powered?

   • The module is powered by a 24V DC power supply.

8. What is the module’s physical size?

   • The dimensions of the module are 93 x 33 x 104 mm.

9. What is the weight of the module?

   • The BMXMSP0200 module weighs 0.145 kg.

10. Is the module compatible with other automation systems?

• While it is primarily designed for use with Modicon M340 and M580 controllers, it can be used in any system that requires pulse train outputs, with additional configuration.
