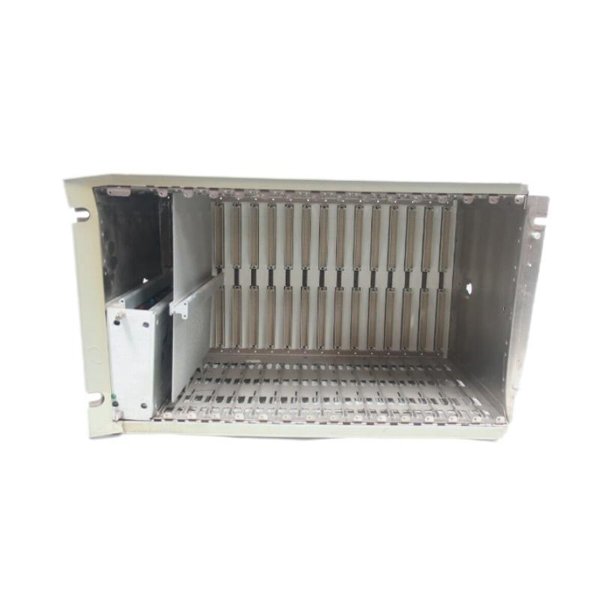

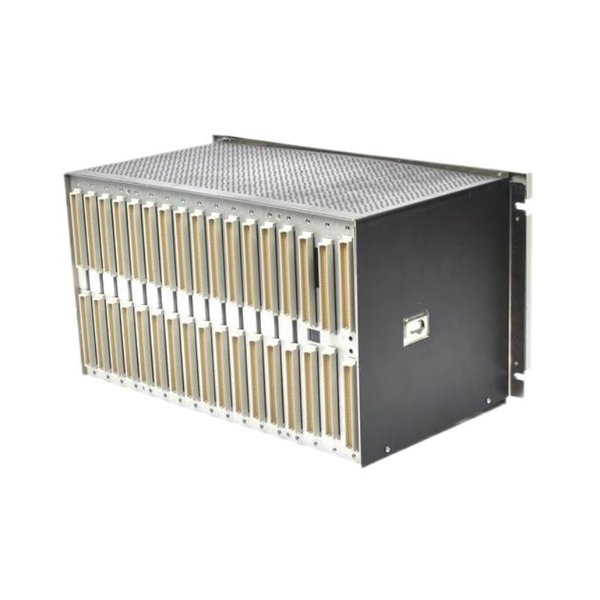

The Bently Nevada 3500/05-01-02-00-00-01 system rack is a rugged, modular chassis designed to accommodate up to 14 modules from the 3500 Series product line. This rack features rear I/O access and is optimized for a single power supply configuration, providing a compact and efficient framework for machinery condition monitoring and protection.

Engineered for industrial environments, the 3500/05-01-02-00-00-01 rack supports all 3500 Series modules, including vibration monitors, relay cards, communication interfaces, and power supplies. The robust anodized aluminum frame ensures durability and resistance to harsh conditions, while the passive cooling design increases system reliability by eliminating moving parts.

This rack is widely used in critical infrastructure applications such as power plants, oil and gas facilities, chemical processing, and manufacturing, where continuous equipment monitoring is essential to prevent failures and optimize maintenance.

Technical Specifications

Applications

The 3500/05-01-02-00-00-01 rack is integral to the 3500 Series machinery protection system and finds application in:

• Power Generation Plants

  Monitoring turbines, generators, and auxiliary equipment to ensure reliable operation.

• Oil and Gas Facilities

  Supporting compressors, pumps, and rotating machinery condition monitoring onshore and offshore.

• Chemical Processing

  Providing protection and diagnostics for critical rotating equipment in corrosive environments.

• Mining and Metals

  Protecting heavy-duty equipment such as crushers, conveyors, and mills from unexpected failures.

• Water and Wastewater Treatment

  Enabling continuous equipment health monitoring to reduce downtime and maintenance costs.

• Industrial Manufacturing

  Applied in automated processes to monitor motor health and mechanical integrity.

Advantages

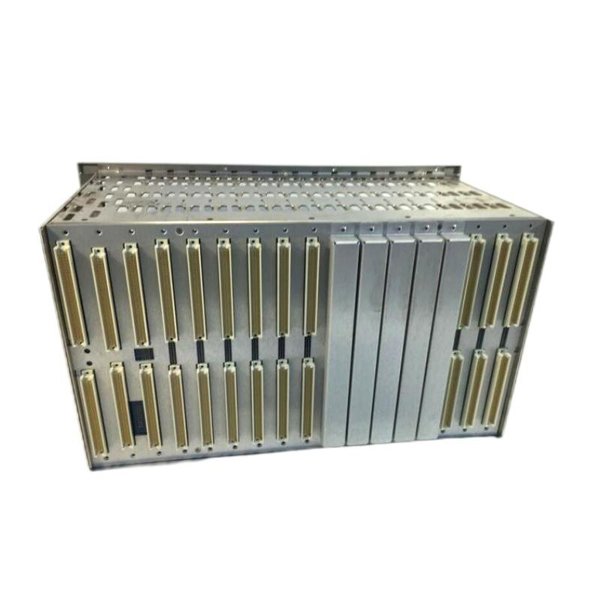

• Rear I/O Access

  Facilitates organized wiring and ease of maintenance by routing cables at the back.

• Compact and Modular Design

  Supports up to 14 modules in a standardized 19-inch rack format.

• Robust and Durable Construction

  Anodized aluminum frame withstands harsh environmental conditions.

• Passive Cooling System

  Fanless design reduces maintenance and enhances reliability.

• Integrated Grounding

  Built-in grounding rail improves system safety and electromagnetic compatibility.

• Single Power Supply Configuration

  Optimized for applications where redundancy is not required, saving space and cost.

• Easy Installation and Service

  Tool-less module mounting and accessible rear connectors speed up deployment.

• Compatibility

  Fully supports the full range of 3500 Series modules.

Frequently Asked Questions (FAQ)

Q1: How many modules does this rack support?

A1: It supports up to 14 modules.

Q2: Does this rack have rear I/O?

A2: Yes, it features rear input and output connections.

Q3: Can this rack handle redundant power supplies?

A3: No, it is designed for a single power supply only.

Q4: What is the construction material of the rack?

A4: It is made of anodized aluminum with stainless steel hardware.

Q5: Is this rack compatible with all 3500 Series modules?

A5: Yes, it supports all modules in the 3500 Series.

Q6: Does the rack require active cooling?

A6: No, it uses passive cooling and does not have fans.

Q7: What is the operating temperature range?

A7: The rack operates from -20°C to +60°C.

Q8: What is the total weight of the rack?

A8: Approximately 4.5 kg.

Q9: Is there integrated grounding?

A9: Yes, the rack has a built-in grounding rail.

Q10: Can this rack be mounted in standard cabinets?

A10: Yes, it is designed for standard 19-inch rack mounting.
