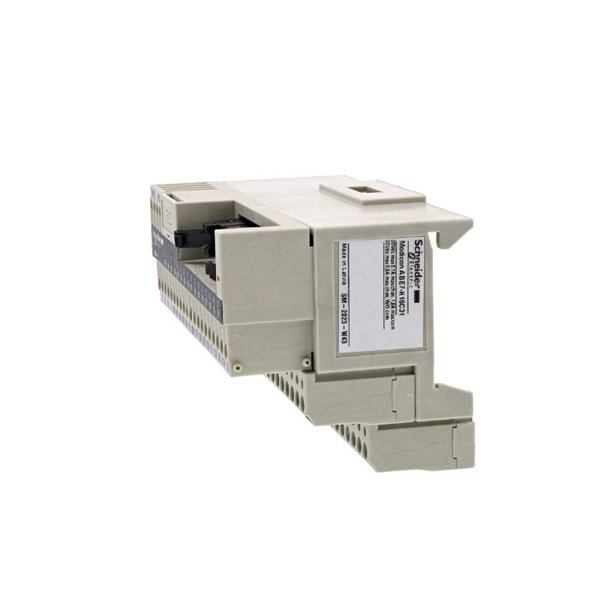

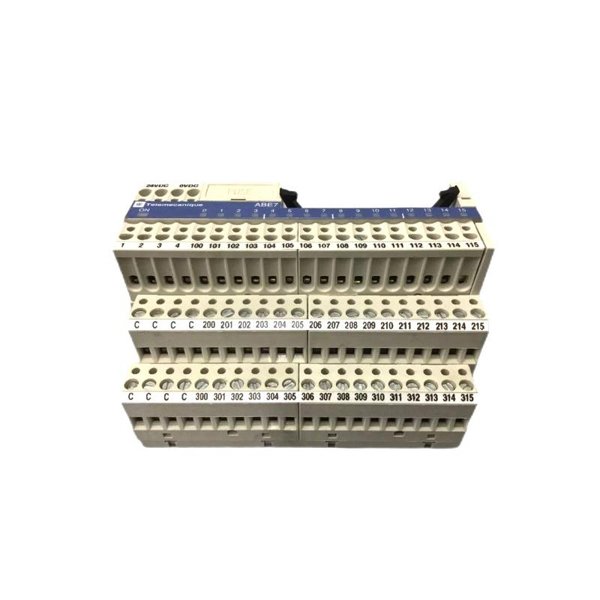

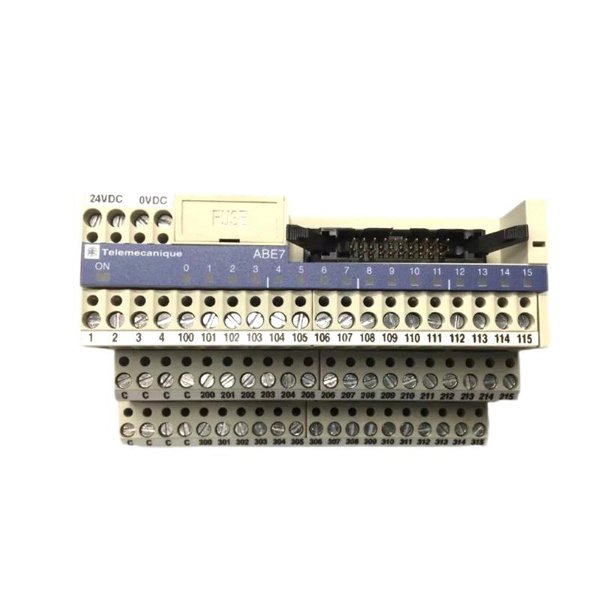

The Schneider Electric ABE7H16C31 is a passive connection base designed to provide a reliable and straightforward interface for connecting field wiring to control modules in automation systems. As part of the Schneider Telemecanique ABE7 series, this connection base supports 16 discrete I/O points and offers a passive solution with no active electronics, ensuring simplicity and high durability.

This passive base is engineered for industrial environments where robust and stable connections are essential. It features a compact and sturdy construction that simplifies installation and maintenance in control cabinets. The ABE7H16C31 enables quick integration of discrete signals with programmable logic controllers (PLCs) and other automation equipment, ensuring signal integrity and efficient wiring management.

Product Specifications

Product Applications

The ABE7H16C31 passive connection base finds its use across a broad spectrum of industrial and automation sectors. Its straightforward design makes it well-suited for applications that require reliable passive interfacing between field devices and control modules:

• Industrial Automation: Used extensively in factory automation for sensor and actuator wiring.

• Process Control: Supports discrete signal management in industries such as chemical, pharmaceutical, and food processing.

• Material Handling: Facilitates connections in conveyor and robotic systems.

• Building Management Systems: Employed for HVAC and lighting controls requiring secure wiring bases.

• Packaging Machinery: Ensures efficient connection of multiple discrete signals in high-speed packaging lines.

• Renewable Energy Systems: Assists in monitoring and control interfaces in solar and wind power plants.

Product Advantages

• Passive Design: Without active components, the base ensures minimal failure points and increased reliability.

• Robust Construction: Flame-retardant thermoplastic housing withstands harsh industrial conditions.

• High Density: Supports up to 16 I/O points in a compact footprint, optimizing panel space.

• Secure Connections: Screw clamp terminals provide firm, vibration-resistant wiring points.

• Easy Installation: Compatible with standard DIN rail mounting and plug-in connectors for rapid setup.

• Maintenance Friendly: Clear labeling and accessible terminals simplify troubleshooting and servicing.

• Universal Compatibility: Designed to interface seamlessly with Schneider’s Telefast I/O modules.

• Safety Certified: Meets international standards for safety and environmental compliance.

Frequently Asked Questions (FAQ)

1. What does “passive” mean in the context of this connection base?

   It means the base contains no active electronics, serving only as a wiring interface.

2. How many discrete I/O points can the ABE7H16C31 handle?

   It supports 16 discrete I/O points.

3. What type of connectors are used on this base?

   It uses two 20-pin female connectors compatible with Telefast modules.

4. Can this connection base be used with analog modules?

   No, it is designed specifically for discrete digital I/O signals.

5. What is the recommended operating temperature range?

   From -5°C up to +60°C.

6. What protection level does it have against dust and liquids?

   It has an IP20 rating, suitable for indoor environments protected from water.

7. Is this connection base compatible with other brands?

   It is primarily designed for Schneider Electric modules; compatibility with others is not guaranteed.

8. How is the unit mounted in control panels?

   It mounts on a standard DIN rail.

9. What materials are used in its construction?

   It is made from high-strength, flame-retardant thermoplastic.

10. How often should the terminals be checked or maintained?

    It is advisable to inspect terminal tightness regularly, especially in vibration-prone environments.
