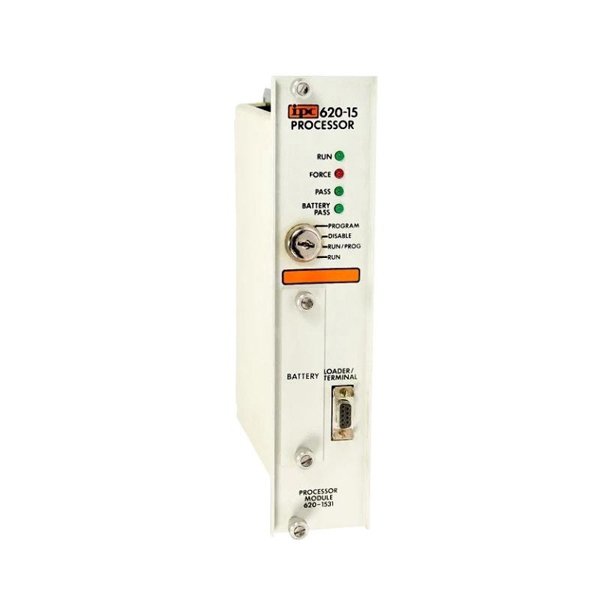

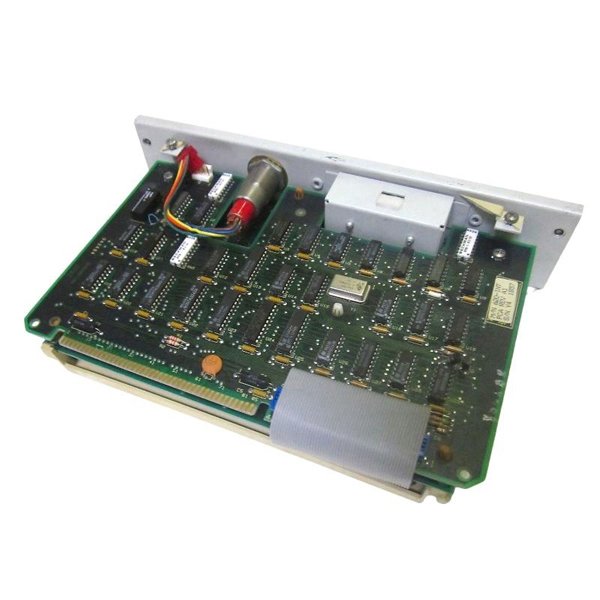

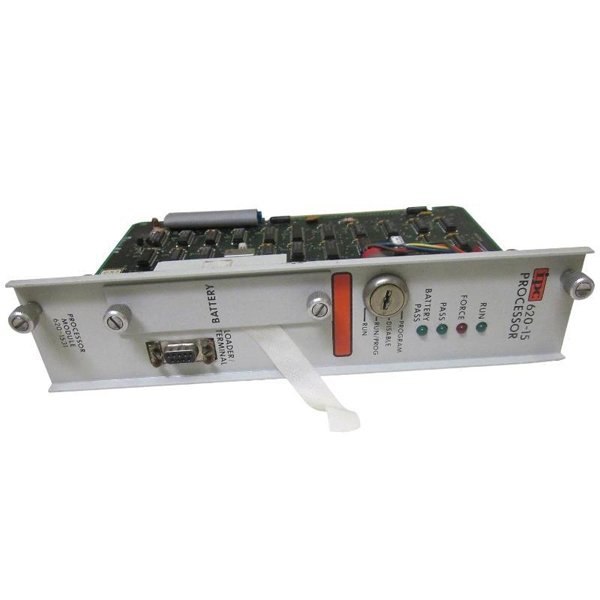

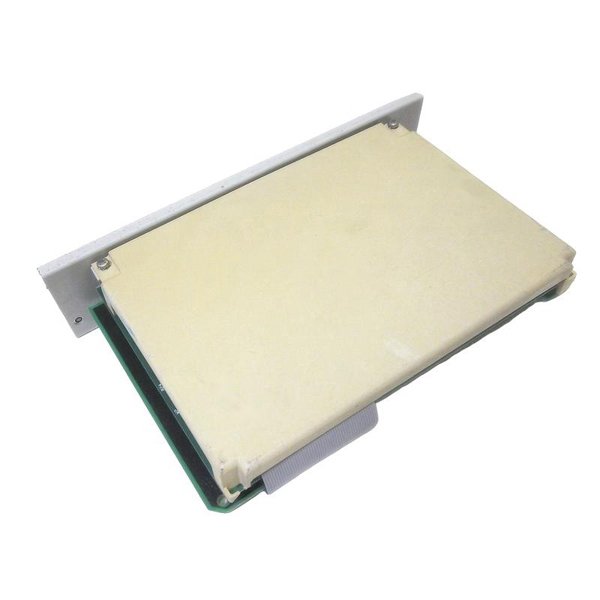

The Honeywell 620-1531 Processor Module is the central computing unit for Honeywell’s IPC-620 series control systems. Serving as the system’s brain, it executes control algorithms, manages communications with I/O modules, and processes data from field devices in real-time.

Designed for industrial automation applications, this processor module ensures reliable and deterministic control, even under high-load conditions. It supports multitasking of various process control operations, data logging, diagnostics, and interfacing with communication modules. The 620-1531 is optimized for seamless integration with Honeywell’s modular rack architecture, providing engineers with flexible system configuration and scalable control solutions.

Product Parameters

Product Applications

The 620-1531 Processor Module is used in:

• Process Control Systems – Coordinating I/O, control logic, and system monitoring for chemical, petrochemical, and power plants.

• Batch Manufacturing – Running sequential control programs for precise production processes.

• Utilities and Infrastructure – Managing water treatment, waste management, and energy distribution processes.

• Oil & Gas – Supervising pipeline and wellhead control systems.

• Data Acquisition and Logging – Collecting and processing data from distributed sensors for analysis and reporting.

• SCADA Integration – Acting as the core computing engine for supervisory control and automation systems.

Product Advantages

• High Reliability – Industrial-grade processor ensures continuous operation in critical environments.

• Real-Time Processing – Fast execution of control programs for deterministic responses.

• Flexible Communication – Supports multiple interfaces including serial ASCII and network connections.

• Scalable Architecture – Integrates with various I/O modules, communication modules, and simulation modules.

• Built-in Diagnostics – Monitors system performance and reports faults for preventive maintenance.

• Easy Integration – Compatible with Honeywell IPC-620 racks and modules, simplifying system expansion.

FAQ

1. What is the primary function of the 620-1531 module?

   It serves as the central processor for the IPC-620 control system, executing control logic and managing I/O.

2. What type of CPU does it use?

   An industrial-grade microprocessor optimized for real-time control.

3. How does the processor communicate with I/O modules?

   Through the internal bus of the IPC-620 system rack.

4. Does the module support serial communication?

   Yes, it supports ASCII serial communication via dedicated ports.

5. Can it handle multiple control tasks simultaneously?

   Yes, it is capable of multitasking for various process control and monitoring operations.

6. Is the module hot-swappable?

   No, the system should be powered down before installation or removal.

7. Does the processor include fault detection?

   Yes, it provides diagnostics and fault reporting for system monitoring.

8. What are the environmental operating limits?

   0°C to 60°C operating temperature and 5% to 95% relative humidity.

9. How much memory is available for control programs?

   Memory includes on-board RAM and firmware storage sufficient for typical IPC-620 applications.

10. Is it compatible with other Honeywell IPC-620 modules?

    Yes, fully compatible with I/O, communication, and simulator modules in the IPC-620 series.
