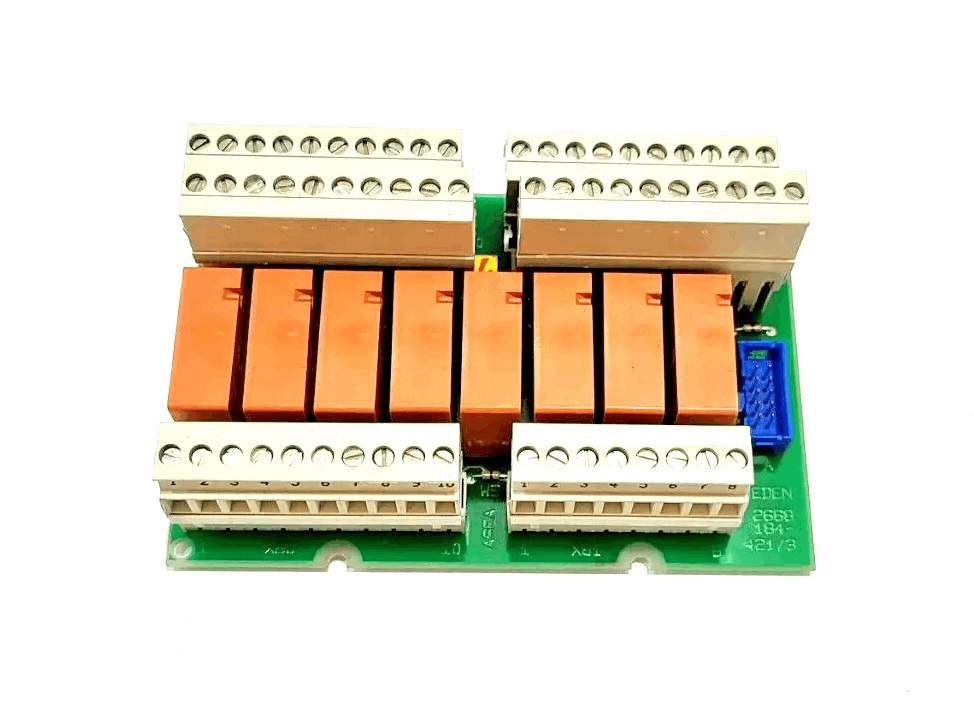

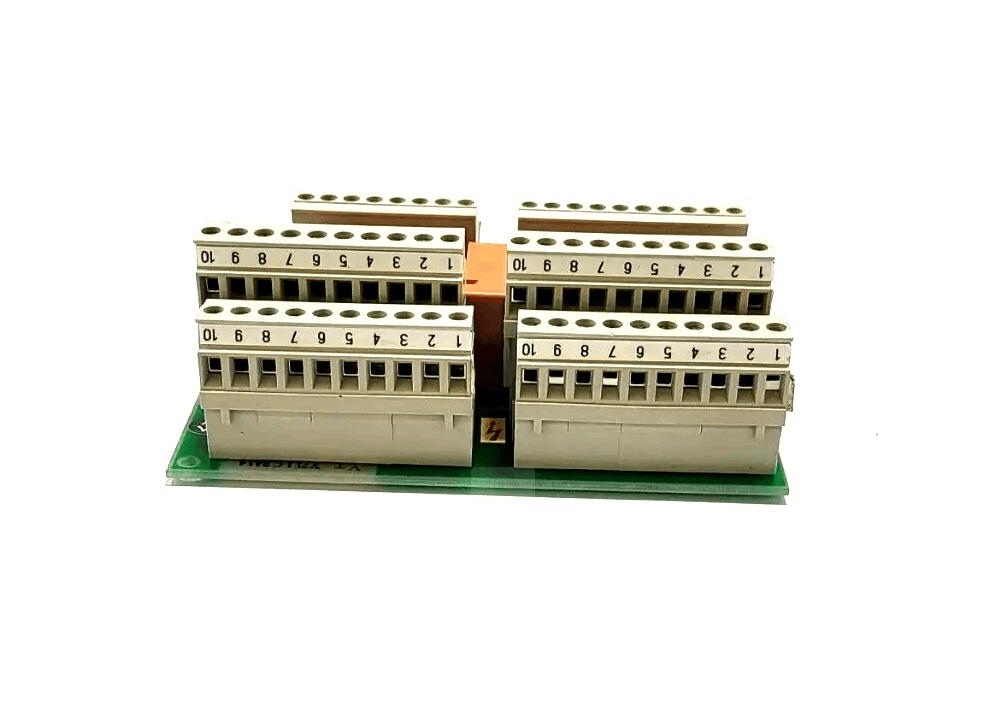

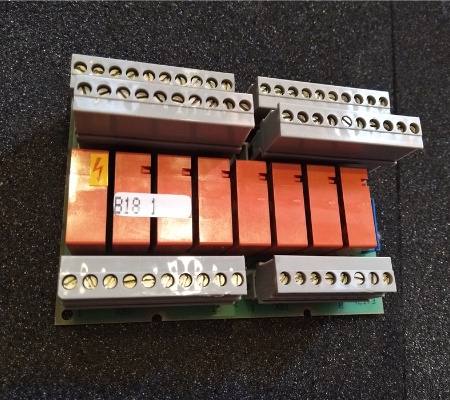

ABB DSTD 306 57160001-SH Connection Board

ABB DSTD 306 57160001-SH connection board is a 32-channel digital output module designed for industrial automation systems, commonly found in ABB Advant Master process control systems. It provides many solutions for controlling actuators or other devices in various industrial applications. The module has 32 independent channels that can output signals simultaneously, thereby coordinating the control of multiple devices. At the same time, it can support voltages up to 60V.

Fuctions & Features

• 32 Channels: The module can output signals through 32 independent channels to provide control for multiple devices simultaneously.

• Maximum Voltage: Supports a maximum voltage of 60 V, suitable for a variety of applications in different voltage environments.

• RoHS Exemption: This product is exempt from the scope of 2011/65/EU (RoHS) according to Article 2(4)(c), (e), (f) and (j), allowing the use of certain materials that would normally be restricted by the RoHS regulation. Exemptions are detailed in the EU Declaration of Conformity.

• WEEE category: Category 5 (small equipment, external dimensions not exceeding 50 cm), which defines its classification with regard to waste treatment and recycling.

• SCIP number: be89e5b5-dfc7-4171-95e3-860357096ccc (Sweden)

Specification

Appilications

• Process control in chemical plants: DSTD 306 connection boards are used to control valves, pumps and agitators in reactors.

• Switch control in power systems: In substations, DSTD 306 modules are used to control circuit breakers and relays for power distribution and load management.
