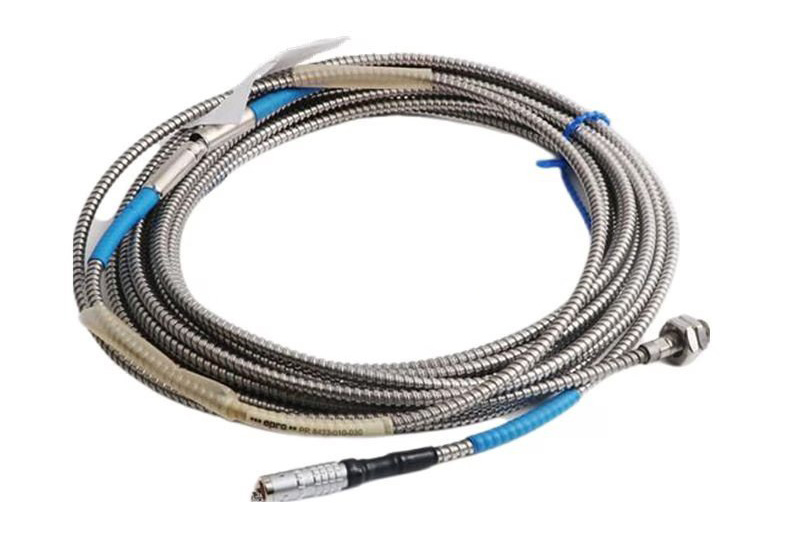

Epro CON021+PR6423/010-100 Eddy Current Sensor

The EPRO CON021 + PR6423/010-100 is a combination of an Eddy Current Signal Converter (CON021) and an Eddy Current Displacement Sensor (PR6423). This system ensures precise measurement of radial and axial shaft displacement, position, eccentricity, and vibration. It is ideal for critical turbomachinery applications like turbines, compressors, and pumps.

CON021 (Signal Converter) Technical Specifications

• Frequency Range: 0 to 20,000 Hz

• Rise Time: <15 μs

• Operating Temperature: -30°C to +100°C (-22°F to +212°F)

• Power Supply: -23V to -32V DC

• Output Voltage Range: -4V to -20V or -2V to -18V

• Protection Class: IP20

• Certifications: ATEX, IECEx, CSA for hazardous areas

PR6423/010-100 (Displacement Sensor) Technical Specifications

• Measurement Range: ±2 mm (static)

• Sensitivity: 8 V/mm (203.2 mV/mil)

• Nominal Air Gap: 0.5 mm (20 mils)

• Frequency Response: Up to 20,000 Hz

• Operating Temperature: -35°C to +180°C (-31°F to +356°F)

• Material: Stainless steel housing with PEEK sensor tip

• Protection Class: IP66

• Certifications: ATEX, IECEx, CSA for hazardous areas
