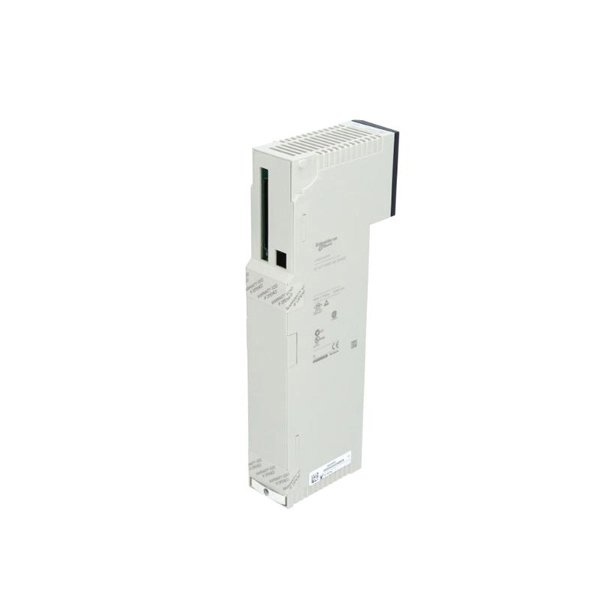

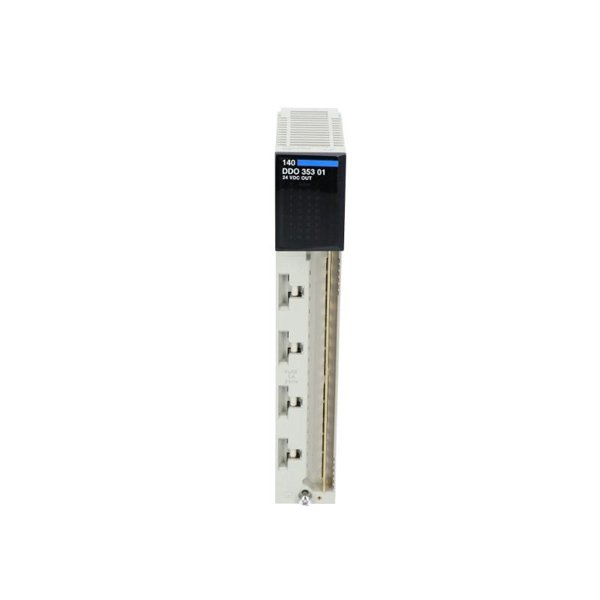

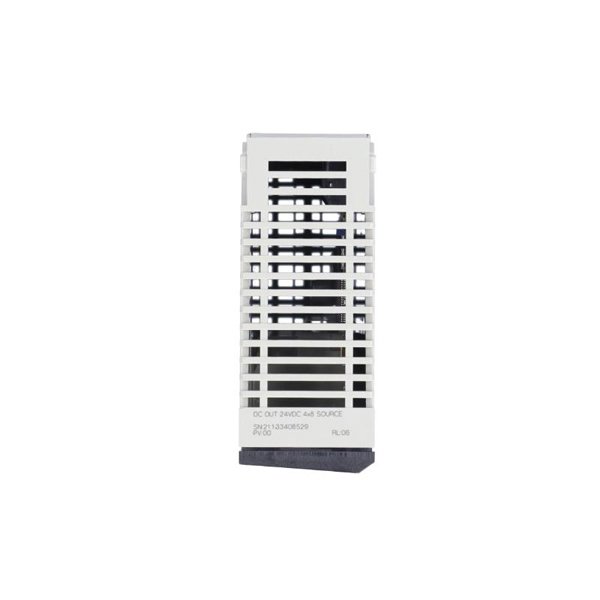

The Schneider 140DDO35301 Discrete Output Module is an integral part of Schneider Electric’s Modicon Quantum PLC system. Designed for industrial automation, the module serves as a crucial component for managing digital output signals. It interfaces between the central PLC and a variety of field devices such as actuators, solenoids, and relays, enabling the control and monitoring of industrial machinery and processes.

This module provides 32 digital output channels, each capable of handling a maximum of 0.5A, offering a reliable solution for systems that require high-density, high-performance digital output capabilities. The 140DDO35301 is engineered to work seamlessly within the Modicon Quantum platform, providing ease of integration into larger control systems. Whether used in factory automation, energy management, or complex process control, this module is a highly versatile solution for managing discrete outputs.

Product Parameters

The following table outlines the key specifications of the Schneider 140DDO35301 Discrete Output Module:

Applications

The 140DDO35301 Discrete Output Module is widely used across a variety of industrial sectors where reliable digital control of field devices is required. Here are some of the key applications:

1. Factory Automation: The module is ideal for controlling machines, conveyors, and other equipment requiring simple on/off control, such as actuators, motors, and relays.

2. Energy Management: In energy control systems, it is used to switch off or on equipment such as circuit breakers and load controllers, enabling precise management of energy flow.

3. Process Control: The module supports the control of solenoids, valves, and other process control devices, ensuring stable operation of complex processes in industries such as chemicals, pharmaceuticals, and oil & gas.

4. Packaging Systems: It is used to control packaging machines and sorting mechanisms in automated packaging lines, ensuring fast and reliable operations.

5. Material Handling: The 140DDO35301 module is essential in material handling systems, enabling control over robotic arms, conveyors, and automated guided vehicles (AGVs).

6. Test Systems: It can be used in automated test systems for controlling various testing equipment, ensuring accurate results and reducing downtime.

Advantages

1. High-Density Output: With 32 digital outputs, the 140DDO35301 offers an excellent solution for systems that require a large number of digital output connections in a compact space.

2. Flexible Output Configuration: This module supports both NPN and PNP transistor outputs, providing flexibility in connecting to various types of field devices, from sensors to actuators.

3. Compact and Robust Design: The module’s compact dimensions and robust build make it suitable for industrial environments, including those with high electromagnetic interference (EMI) or vibration.

4. Easy Integration: As part of the Modicon Quantum series, the 140DDO35301 can easily integrate into an existing system, simplifying expansion and upgrades.

5. Clear Diagnostic Indicators: With 32 built-in LED status indicators, it is easy to monitor the operational status of each output, streamlining troubleshooting and maintenance.

6. Wide Operating Temperature Range: The module can function in harsh environments with a wide temperature range of -20°C to +60°C, making it suitable for various industrial applications.

7. Compliance and Certification: The module complies with international standards such as CE, UL, and CSA, ensuring safety and reliability in a wide range of applications.

Frequently Asked Questions (FAQ)

1. How many outputs does the 140DDO35301 module provide?

   • The module offers 32 digital outputs.

2. What is the nominal output voltage of the module?

   • The nominal output voltage is 24V DC.

3. Can I connect both NPN and PNP devices to this module?

   • Yes, the module supports both NPN and PNP transistor outputs.

4. What is the maximum output current per channel?

   • The maximum output current is 0.5A per output.

5. What is the power consumption of the 140DDO35301 module?

   • The typical power consumption is 4W.

6. What type of connectors are used for wiring the module?

   • The module uses removable spring-clamp terminal blocks for easy wiring.

7. What are the operating temperature limits for this module?

   • The module operates within a temperature range of -20°C to +60°C.

8. What communication protocol does the module use?

   • The module supports Modbus and Schneider Electric’s proprietary communication protocol.

9. Is this module suitable for outdoor use?

   • While the module is robust, it should be housed in a suitable enclosure to protect it from environmental factors if used outdoors.

10. What certifications does the 140DDO35301 module have?

    • The module is CE, UL, and CSA certified, ensuring it meets international safety standards.
