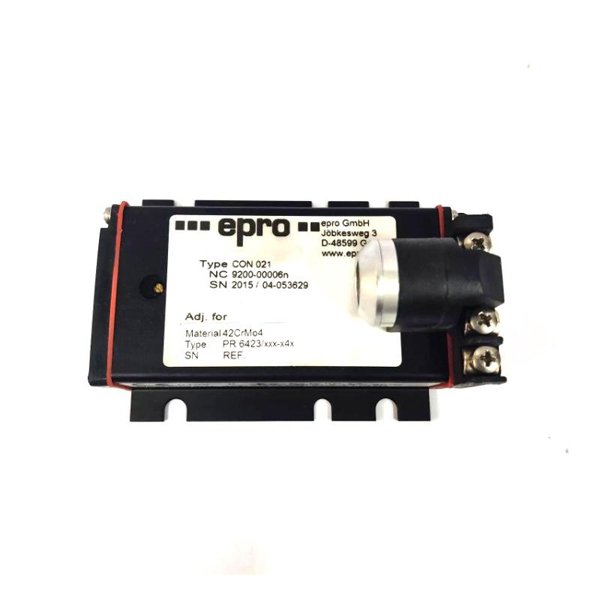

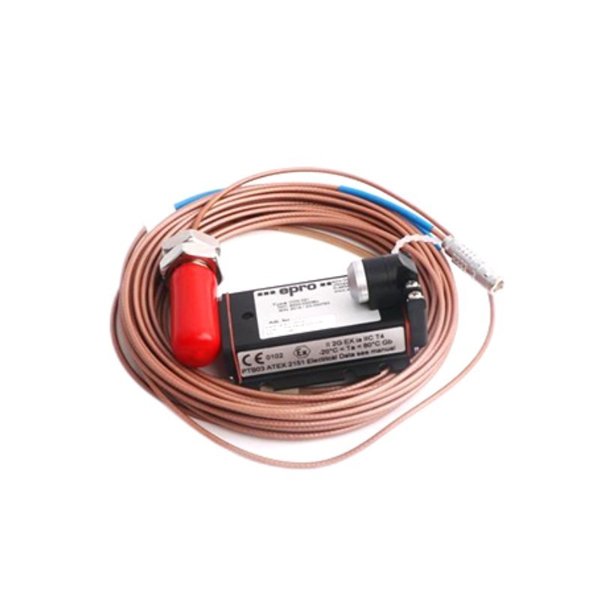

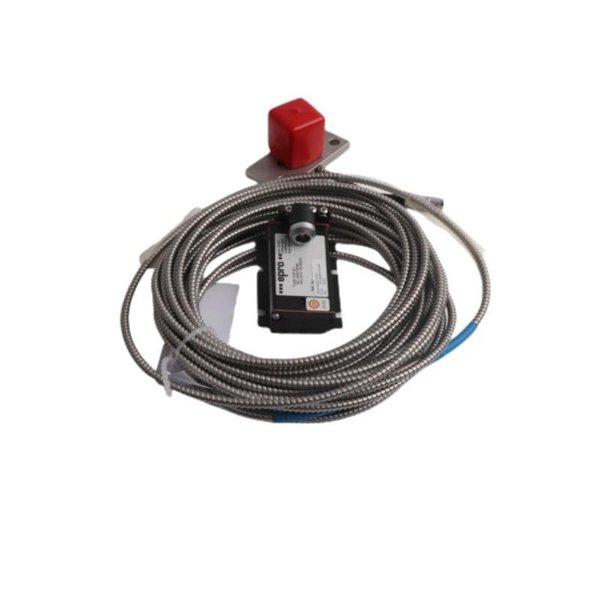

The Epro PR6424/102-021 is a high-precision 16mm Eddy Current Sensor designed to measure displacement, position, and vibration in industrial applications. This sensor utilizes advanced eddy current technology, which allows for non-contact sensing, offering high accuracy and minimal maintenance requirements. It is especially useful in monitoring machinery and components in harsh operating environments, where precision and reliability are critical.

The PR6424/102-021 sensor is suitable for applications that demand high-resolution and real-time feedback. By offering excellent signal stability and the ability to operate in environments with high levels of vibration and electromagnetic interference, this sensor is ideal for demanding industrial tasks. Whether used in rotating machinery monitoring, quality control, or precision positioning systems, the PR6424/102-021 provides the precision and performance needed to ensure operational success.

Product Specifications

Product Applications

The Epro PR6424/102-021 16mm Eddy Current Sensor is widely used in various industries for non-contact displacement and vibration measurement, making it suitable for critical machinery and systems monitoring. Below are some key applications of this sensor:

1. Rotating Equipment Monitoring

   The sensor is commonly used in rotating machinery, including pumps, motors, turbines, and generators, to monitor vibrations, displacement, and position changes, ensuring safe and efficient operations.

2. Automotive Manufacturing

   In automotive assembly lines, the sensor is used for precise position measurements of components, quality control, and automated testing of various parts such as engine components and actuators.

3. Aerospace

   The sensor is crucial for aerospace applications, where it monitors components like actuators, landing gears, and propulsion systems, ensuring they meet the high standards of precision required in flight operations.

4. Turbine and Generator Monitoring

   It is widely used in the energy sector to monitor the displacement of turbines, generators, and other high-speed machinery, preventing potential damage by providing early warning of faults.

5. Precision Positioning Systems

   In applications like robotics, semiconductor manufacturing, and micromachining, the PR6424/102-021 sensor ensures that positioning is accurate to the millimeter level, facilitating high-precision work.

6. Industrial Machinery and Equipment

   It is also employed in various industrial machinery applications where high-speed, non-contact measurement of displacement and position is essential for optimal performance and safety.

Product Advantages

• Non-contact Measurement

  The Epro PR6424/102-021 utilizes eddy current technology, allowing for non-contact measurements, which reduces wear and tear and extends the life of the sensor, especially in harsh or high-vibration environments.

• High Precision

  The sensor offers an accuracy of ±0.1% of full scale, ensuring high precision even in dynamic systems where tiny position changes can be critical.

• Fast Response Time

  With a response time of less than 1 ms, the sensor provides rapid feedback, making it ideal for real-time applications where quick action or adjustment is needed.

• Durability and Environmental Protection

  With an IP67 rating, the PR6424/102-021 sensor is dust-tight and resistant to water ingress, making it highly durable in industrial environments, where dust, moisture, and harsh conditions are common.

• Wide Temperature Range

  The sensor operates across a broad temperature range from -20°C to +70°C, ensuring reliable performance even in extreme operating conditions.

• Easy Integration

  The sensor can be easily integrated into existing systems with options for threaded or flange mounting, allowing for flexible installation and use in various setups.

FAQ

1. What sensing technology does the Epro PR6424/102-021 use?

   The Epro PR6424/102-021 uses eddy current technology to measure displacement and position.

2. What is the sensing head diameter of the Epro PR6424/102-021 sensor?

   The sensing head diameter is 16 mm.

3. What is the measuring range of the Epro PR6424/102-021 sensor?

   The sensor has a typical measuring range of 0-10 mm.

4. What output signal does the sensor provide?

   The sensor provides an analog output, which can either be voltage or current depending on the configuration.

5. What is the accuracy of the Epro PR6424/102-021 sensor?

   The accuracy is ±0.1% of full scale.

6. What is the required supply voltage for the Epro PR6424/102-021 sensor?

   The sensor requires a 24 V DC supply voltage.

7. What is the response time of the sensor?

   The response time is less than 1 ms, ensuring fast and real-time measurements.

8. What environmental protection rating does the sensor have?

   The Epro PR6424/102-021 has an IP67 rating, providing protection against dust and water.

9. What is the temperature range for the sensor?

   The sensor operates within a temperature range of -20°C to +70°C.

10. What type of mounting options are available for the sensor?

    The sensor supports threaded and flange mounting options for flexible installation.
