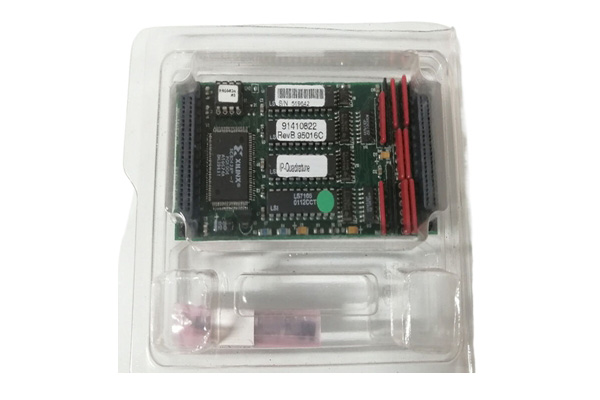

The General Electric IP-QUADRATURE module is a high-performance counting and encoding module designed for industrial control and automation systems. It can receive orthogonal encoder signals and convert them into data that can be further processed or analyzed. This module provides four independent counting channels, each of which can count the encoder’s pulses at high resolution, enabling accurate position and velocity measurements.

Main features and advantages

High resolution counting: The IP-QUADRATURE module provides a 24 bit resolution counting function, ensuring extremely high measurement accuracy.

Flexible configuration options: Each counting channel can be independently configured, supporting orthogonal counting mode or universal counting mode to meet the needs of different application scenarios.

Programmability: Users can program counting modes, polarity, interrupt functions, etc. according to their actual needs, providing great flexibility.

Powerful interrupt capability: Supports multiple interrupt triggering conditions, such as counter matching, overflow, etc., making it easy to implement complex control logic.

Wide input compatibility: accepts differential or single ended (RS-422 or TTL/CMOS) input signals, adapting to different sensor interfaces.

Industrial grade reliability: Designed to meet the requirements of industrial environments and able to work stably under harsh conditions.

Application scenarios

The General Electric IP-QUADRAURE module is widely used in systems that require precise measurement and control of rotation or linear position, such as:

Position feedback systems for industrial robots and automation equipment.

The motion control system of CNC machine tools and precision machinery.

Angle measurement of new energy equipment such as wind power generation and solar energy tracking.

Automated logistics systems such as material handling and assembly line production.

Technical specifications and interface definitions

Technical specifications:

Counting resolution: 24 bits

Counting frequency: 0 to 10MHz

Input signal type: differential or single ended (RS-422 or TTL/CMOS)

Interrupt triggering conditions: programmable, including counter matching, overflow, etc

Working temperature range: Industrial grade standard, suitable for harsh environments

Interface definition:

X. Y input: A and B phase signal input for orthogonal encoder

Z input: optional gate control signal or directional control input

Output interface: providing counting results, status indicators, and interrupt signals, etc

Example

Assuming precise control of the speed and position of the conveyor belt is required on an automated assembly line. Install an orthogonal encoder on the drive shaft of the conveyor belt and connect the output of the encoder to the General Electric IP-QUADRAURE module. This module can count the pulses of the encoder in real time, thereby accurately calculating the position and speed of the conveyor belt. By configuring the interrupt function, the interrupt is triggered when the conveyor reaches the predetermined position, and the control system can adjust the speed of the conveyor or perform other operations accordingly.

In summary, the General Electric IP-QUADRAURE module has become an indispensable part of the industrial automation field with its high precision, flexible configuration, and powerful interrupt capability, and is widely used in various scenarios that require precise position measurement.
