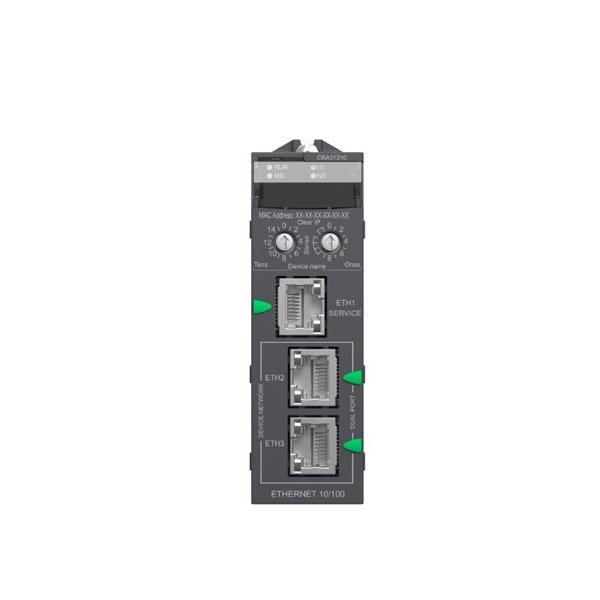

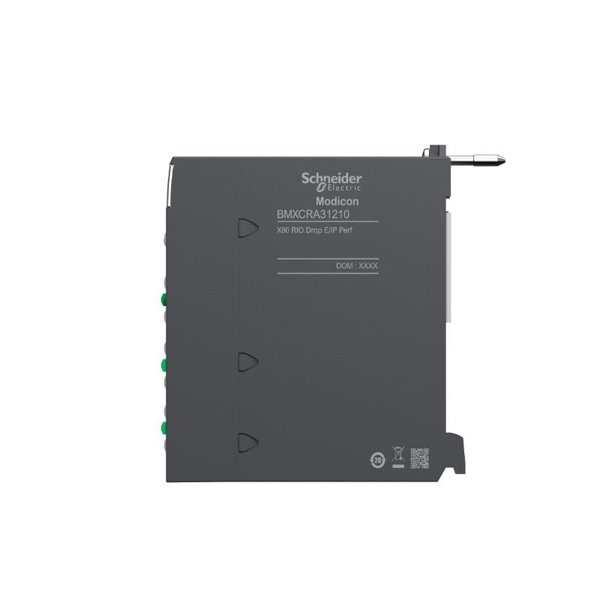

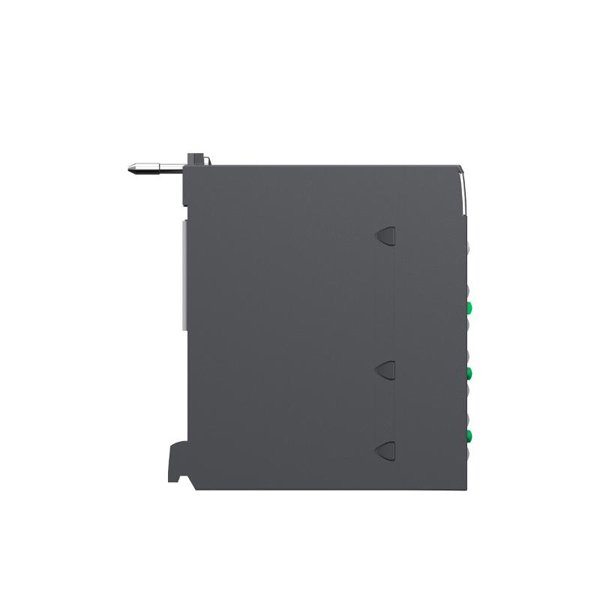

The Schneider Electric BMXCRA31210 is a high-performance remote I/O expansion module designed to be used with the Modicon M340 automation platform. It plays a critical role in enabling communication between the M340 CPU and distributed I/O modules via the Modbus Plus or Ethernet networks. This expansion module is engineered for industrial automation environments requiring scalable and decentralized I/O configurations.

The BMXCRA31210 supports hot swapping, ensuring minimal downtime during maintenance or upgrades. The design adheres to Schneider Electric’s rigorous industrial standards, offering dependable performance in harsh environments. With its compact form factor, the module enables optimal space utilization in control cabinets, while its robust communication protocols ensure seamless data transfer across networks.

Technical Specifications

Applications

The BMXCRA31210 is suitable for a wide range of industrial and infrastructure applications, particularly in distributed automation systems where communication between a central controller and remote I/O modules is essential. Key applications include:

• Manufacturing Plants (Automotive, Packaging, Textile)

• Food & Beverage Processing

• Water & Wastewater Treatment

• Oil & Gas Industry

• Power Generation Facilities

• Material Handling Systems

• HVAC and Building Automation

• Mining and Metallurgy

Its modular architecture makes it ideal for facilities aiming to implement flexible and scalable automation solutions.

Product Advantages

• High Reliability: Built for industrial-grade robustness with certifications ensuring safe operation in demanding conditions.

• Scalability: Allows for expansion of control systems without significant structural overhaul.

• Ease of Configuration: Seamless integration with Schneider’s Unity Pro or EcoStruxure Control Expert environments.

• Redundancy and Hot Swapping: Supports fault-tolerant configurations and maintenance without halting the process.

• Compact Design: Space-saving module with efficient heat dissipation design for cabinet installation.

• Cost-Effective Networking: Enables multiple remote devices to communicate with a single CPU efficiently.

• Seamless Compatibility: Works flawlessly within the Modicon M340 platform and with other Schneider Electric devices.

Frequently Asked Questions (FAQ)

1. What is the primary function of the BMXCRA31210 module?

   It serves as a remote I/O expansion adapter for connecting Modicon M340 CPUs to remote I/O modules over Ethernet.

2. Can I use BMXCRA31210 with third-party PLCs?

   No, this module is specifically designed for the Modicon M340 platform.

3. Is the BMXCRA31210 hot-swappable?

   Yes, it supports hot-swapping, allowing replacement or maintenance without powering down the system.

4. What software is required to configure this module?

   Unity Pro or EcoStruxure Control Expert can be used for configuration and diagnostics.

5. How many remote I/O drops can be connected using BMXCRA31210?

   Up to 31 remote I/O drops can be managed using this module.

6. Does this module support redundant communication paths?

   Yes, it supports Ethernet-based redundancy features to ensure communication continuity.

7. Can this module be used in outdoor environments?

   It’s not recommended for direct outdoor use unless enclosed in a rated cabinet, as it’s IP20-rated.

8. What kind of diagnostic tools are available for this module?

   Diagnostics are available via the configuration software and onboard LED indicators.

9. What is the default IP configuration?

   The module must be assigned an IP address manually or via DHCP depending on network design.

10. Can the BMXCRA31210 module communicate directly with field devices like sensors or actuators?

    No, the BMXCRA31210 does not directly interface with sensors or actuators. It acts as a communication bridge between the M340 CPU and distributed I/O modules which handle field signals.
