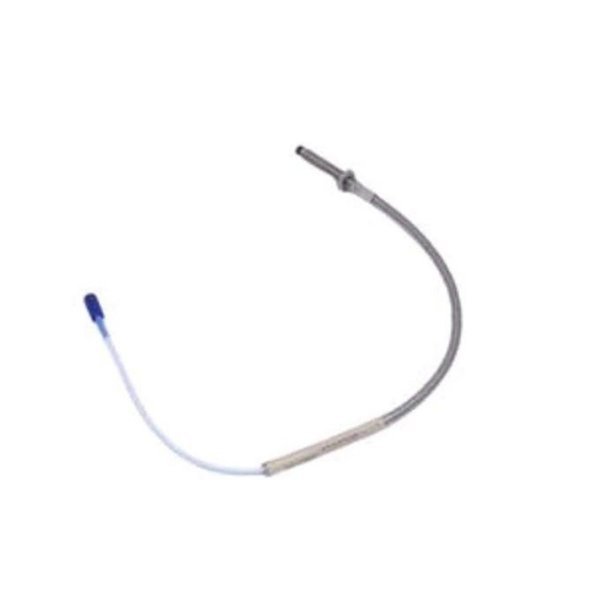

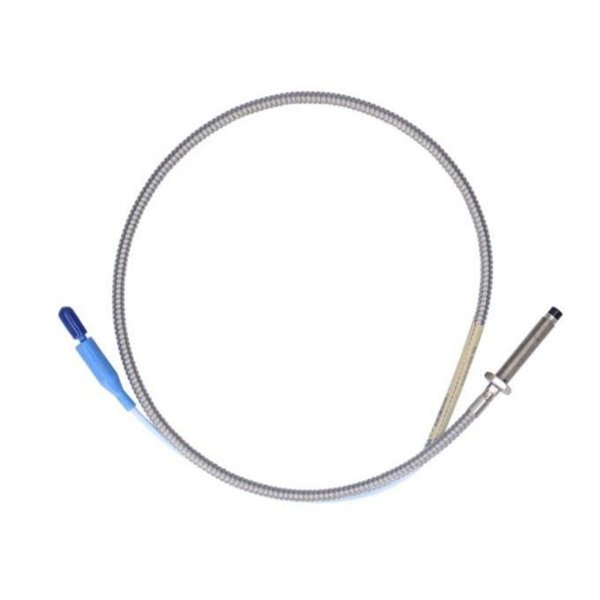

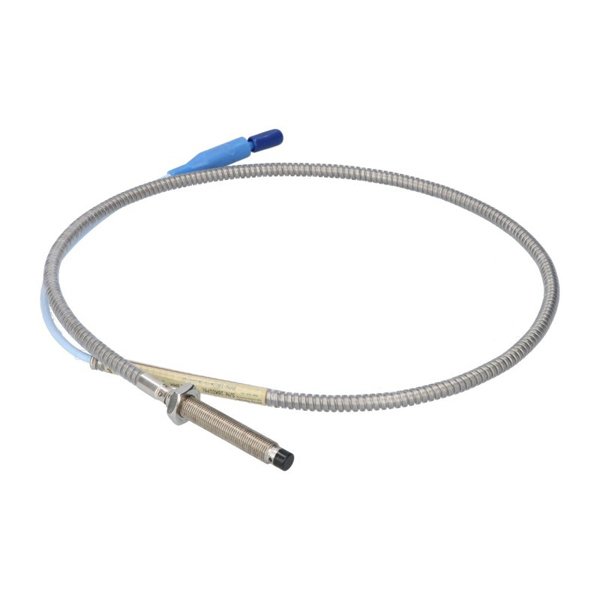

The Bently Nevada 330104-00-06-50-02-CN is part of the 3300 XL 8 mm Proximity Transducer System. Designed for accurate static and dynamic measurements, this probe detects shaft position and vibration in rotating machinery. It is engineered for robust use in demanding environments, offering high reliability, API 670 compliance, and full compatibility with standard Bently Nevada Proximitor sensors and extension cables.

Product Features

• API 670 Compliant

• 5.0m Probe Length with armor and standard ClickLoc connector

• M10x1 Threaded stainless steel probe body

• ClickLoc Gold-plated Connectors ensure secure, tool-free connection

• FluidLoc Option Available for oil sealing

• Temperature Range: up to +177°C standard, up to +218°C ETR

• Interchangeable Components with older 3300 systems

Technical Specifications

Applications

• Steam and gas turbines

• Compressors

• Gearboxes

• Pumps

• Industrial fans

• Keyphasor speed and reference signal detection

Product Advantages

• High Precision: Excellent linearity and scale factor consistency

• Robust Design: Withstands harsh temperatures and vibration

• Interchangeable Components: Reduces installation complexity

• Quick Installation: ClickLoc connectors simplify wiring

• Extended Lifespan: FluidLoc option prevents fluid ingress

• Global Certifications: Supports hazardous area installations

FAQ

Q1: What is the main function of this probe?

A1: It measures shaft position and vibration using non-contact eddy current technology.

Q2: Is this probe compliant with API 670?

A2: Yes, it fully meets the mechanical and performance requirements of API 670.

Q3: What is the thread type on the 330104-00-06-50-02-CN?

A3: It uses an M10x1 threaded probe case.

Q4: Can this probe be used in high-temperature environments?

A4: Yes, it supports up to +177°C standard and up to +218°C with the ETR option.

Q5: What is the output sensitivity of this probe?

A5: It delivers 200 mV/mil ±5%.

Q6: Are the connectors tool-free?

A6: Yes, ClickLoc connectors require only finger tightening.

Q7: Is the probe backward compatible?

A7: Yes, it is compatible with non-XL 3300 series 8 mm components.

Q8: Can I install it in a hazardous area?

A8: Yes, with appropriate barriers and certifications (ATEX, CSA, IECEx).

Q9: How is the probe protected from environmental damage?

A9: Connector protectors and armored cables provide robust environmental shielding.

Q10: What shaft sizes is this probe suited for?

A10: Recommended for shaft diameters of 76.2 mm (3 in) or larger.
