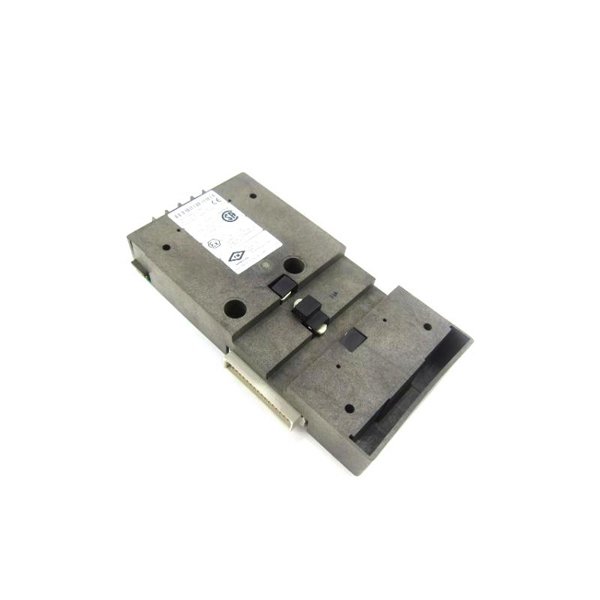

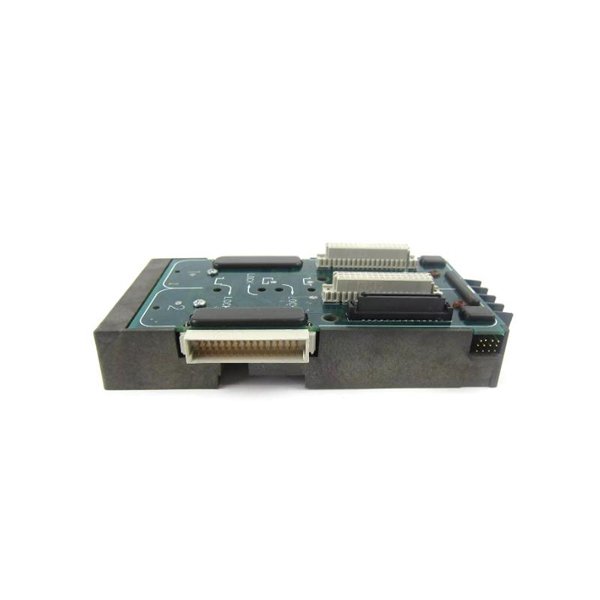

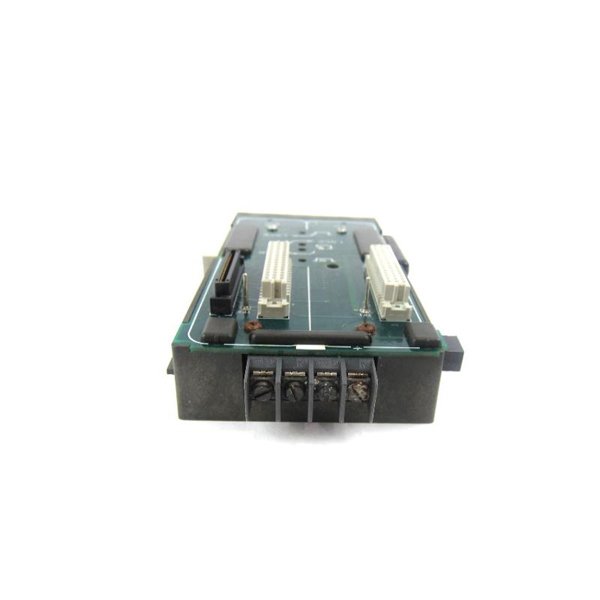

The Emerson KJ4001X1-BA3 is a highly reliable carrier module designed for use in DeltaV™ Distributed Control Systems (DCS). As a part of Emerson’s industry-leading DeltaV I/O subsystem, this module functions as a physical and electrical interface for installing I/O cards and connecting them to the system field wiring.

Used widely in mission-critical industrial automation environments, the KJ4001X1-BA3 serves as the foundational platform for various I/O cards—supporting redundant power feeds and integrated communications to maintain system performance and integrity. It ensures both mechanical stability and optimized data communication, forming a key component in delivering scalable and flexible control architectures.

Product Specifications

Product Applications

The Emerson KJ4001X1-BA3 Carrier Module is widely deployed across various industrial sectors where reliable and scalable control is vital:

• Oil & Gas Refining Facilities

  Ensures safe and efficient operations in upstream and downstream systems.

• Chemical and Petrochemical Plants

  Provides reliable integration of safety and process control I/O modules.

• Power Generation Plants

  Critical in turbine monitoring, boiler control, and auxiliary systems.

• Pharmaceutical Manufacturing

  Enables compliant and traceable I/O installations in validated environments.

• Pulp and Paper Mills

  Handles complex batch and continuous process control via field integration.

• Mining and Metallurgy Automation

  Serves as a robust platform in vibration- and dust-intensive environments.

Product Advantages

• Reliable Modular Design

  The carrier offers a standardized interface for all supported I/O cards, reducing complexity and wiring errors.

• Redundancy Ready

  Supports dual power feeds to minimize system downtime and enhance reliability.

• Field-Proven Stability

  Designed to operate in extreme environmental conditions with certifications for hazardous areas.

• Efficient Installation

  Mounts easily on standard DIN rails and connects seamlessly with other DeltaV modules.

• Simplified Maintenance

  Individual module removal and replacement without disrupting other components.

• Integrated Diagnostics

  LED indicators enable fast troubleshooting and monitoring during operations.

• System Scalability

  Supports expansion by allowing the addition of more carrier modules in series.

• Global Compliance

  Conforms to industry standards and safety directives for worldwide deployment.

Frequently Asked Questions (FAQ)

1. What is the function of the KJ4001X1-BA3 Carrier Module?

   It provides a physical and electrical base for mounting DeltaV I/O modules.

2. Which systems is the KJ4001X1-BA3 compatible with?

   It is designed specifically for the Emerson DeltaV™ DCS platform.

3. Can it be used in hazardous environments?

   Yes, it is ATEX, IECEx, and UL certified for hazardous area applications.

4. Does the carrier support redundant power?

   Yes, it accepts dual redundant power feeds for high availability.

5. Is hot-swapping of I/O cards supported?

   Yes, the I/O cards mounted on this carrier are hot-swappable under supported conditions.

6. What kind of I/O modules can be installed?

   Both analog and digital input/output modules from the DeltaV system.

7. How is the module mounted?

   It can be mounted on standard DIN rails or via panel mounting.

8. What is the recommended operating temperature?

   It operates effectively between -40°C to +70°C.

9. How many I/O cards can one carrier support?

   Each carrier supports a single I/O module.

10. What indicators are available on the module?

    It includes onboard LED indicators for status and diagnostics.
