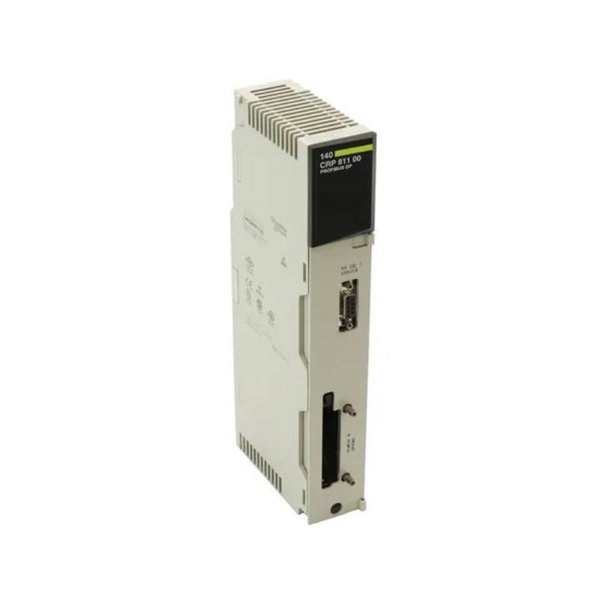

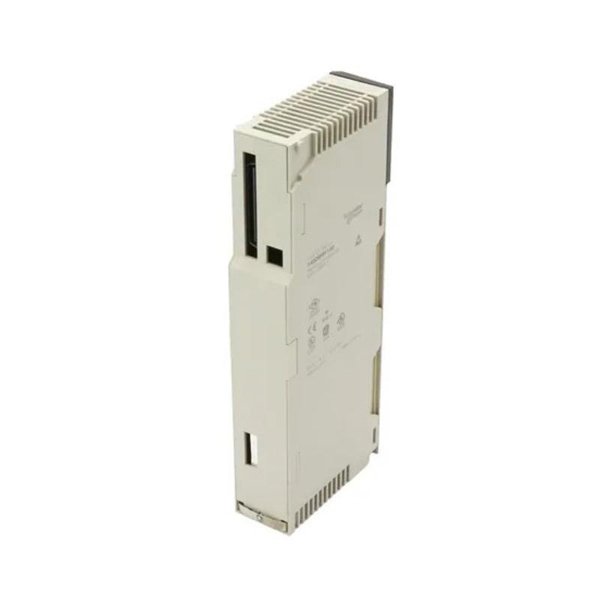

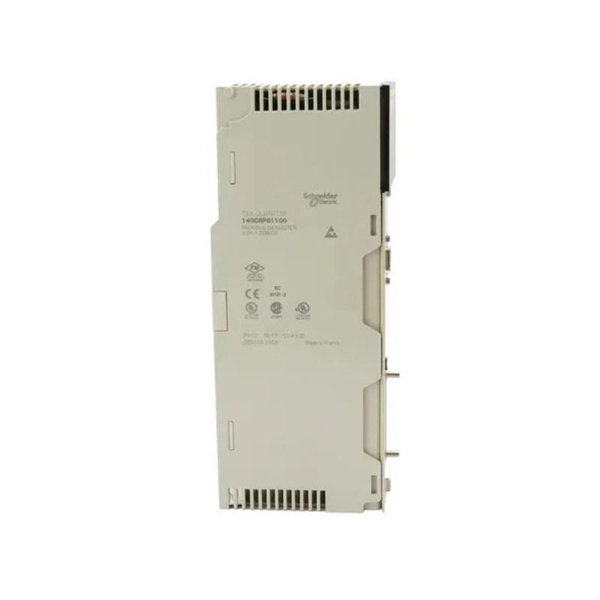

Schneider 140CRP81100 Profibus Head Module
Manufacturer:Schneider
Product Number:140CRP81100
Product Type:Profibus Head Module
Origin:France
Dimensions:100 × 32 × 115 mm
Weight:0.45 kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140CRP81100 is a Profibus DP head module designed for the Modicon Quantum automation platform. It provides seamless integration between Quantum controllers and Profibus-DP networks, acting as a powerful communication gateway that simplifies fieldbus connectivity in industrial automation environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Profibus DP Head Module |
| Model Number | 140CRP81100 |
| Communication Interface | Profibus DP Master |
| Bus Type | Remote I/O |
| Baud Rate | Up to 12 Mbps |
| Module Location | Rack-mounted |
| Power Supply | Supplied from Quantum rack |
| Operating Temperature | 0°C to 60°C |
| Dimensions (W×H×D) | 100 × 32 × 115 mm |
| Weight | 0.45 kg |
Applications
-
Integration of Quantum PLCs with Profibus DP field devices
-
Process control and factory automation
-
Distributed I/O systems
-
Industrial communication networks in manufacturing, energy, and utility sectors
Product Advantages
-
Reliable and high-speed Profibus DP communication
-
Easy integration with Schneider Quantum systems
-
Compact and rack-mountable form factor
-
Supports remote I/O expansion
-
Reduces wiring complexity and engineering costs
-
Backed by Schneider’s robust automation ecosystem
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 140CRP81100 module?
A1: It serves as a Profibus DP master head module for Quantum PLC systems.
Q2: Can it connect to multiple Profibus slave devices?
A2: Yes, it can manage communication with several Profibus DP slave devices.
Q3: Is configuration done through Unity Pro or EcoStruxure Control Expert?
A3: Yes, the module is configured via Unity Pro or EcoStruxure Control Expert.
Q4: Does it support hot-swap during operation?
A4: No, the 140CRP81100 does not support hot-swapping.
Q5: What is the maximum baud rate supported?
A5: It supports baud rates up to 12 Mbps.
Q6: Is this module compatible with other Schneider PLC families?
A6: It is specifically designed for the Quantum series.
Q7: What diagnostics are available through this module?
A7: It provides LED indicators and diagnostic data via the PLC software.
Q8: Can it be used in harsh environments?
A8: It supports standard industrial conditions (0°C to 60°C), but requires additional enclosure for harsh environments.
Q9: What is the mounting method?
A9: It is mounted in a Quantum backplane rack.
Q10: Is firmware update possible for this module?
A10: Yes, firmware updates can be applied via Schneider configuration tools.
