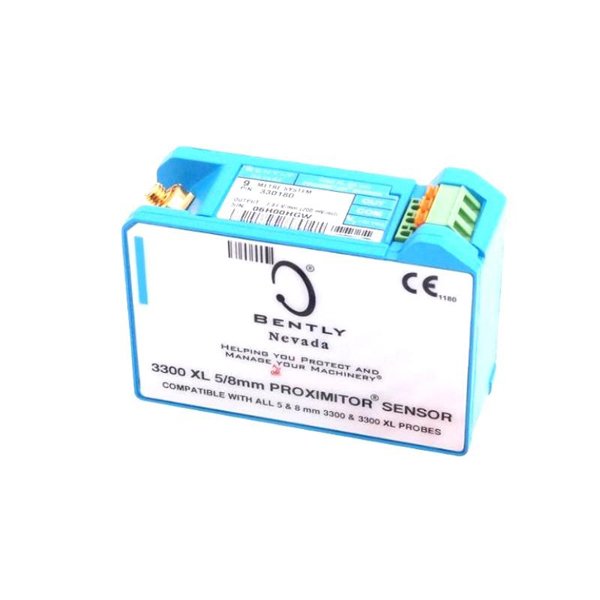

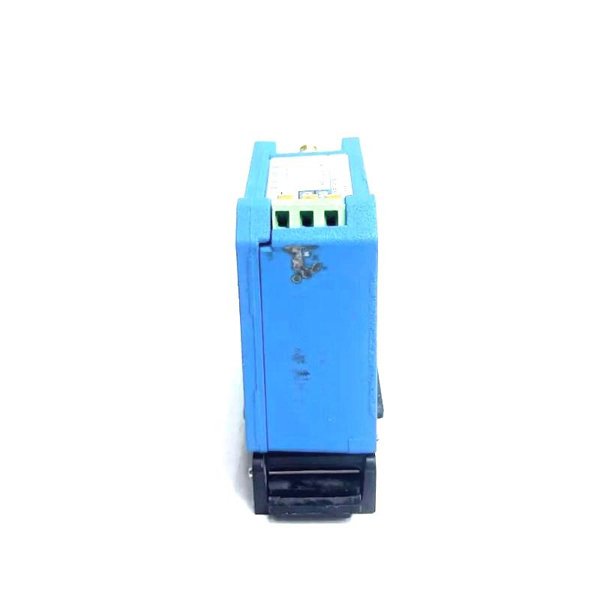

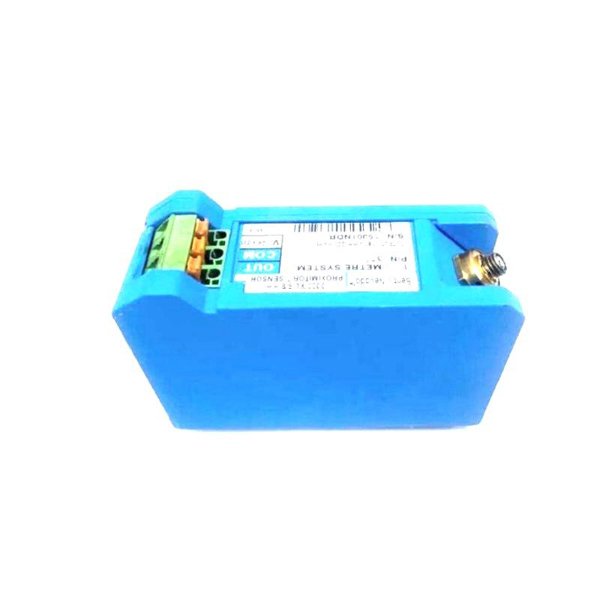

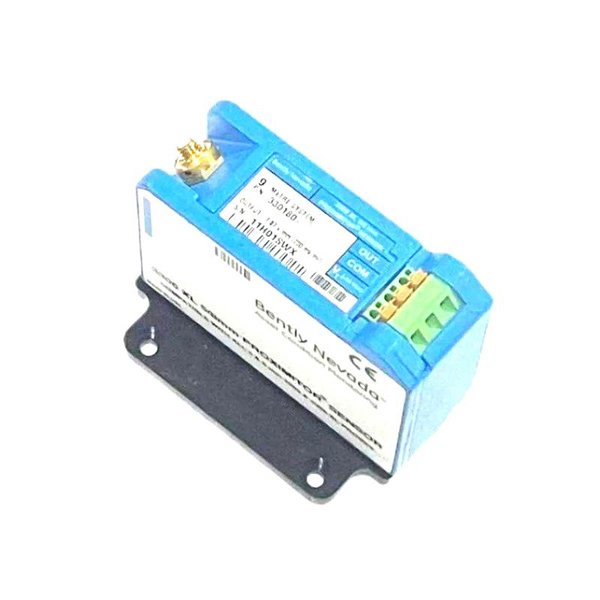

Bently Nevada 330180-X1-R0 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-X1-R0
Product Type:3300 XL Proximitor Sensor
Origin:USA
Dimensions:81.3 x 35.1 x 63.5 mm
Weight:0.246 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330180-X1-R0 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurements in critical machinery. It delivers an output voltage proportional to the distance between the probe tip and the target surface, supporting both static and dynamic measurements. The sensor is fully compliant with API 670 standards, offering high reliability, stability, and interchangeability without the need for individual component calibration.
Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Probes | 3300 XL 8 mm and 3300 series 5 mm probes |
| System Length Options | 1 m, 5 m, 9 m |
| Power Supply | –17.5 Vdc to –26 Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils), –9 Vdc |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Operating Temperature (Sensor) | –52°C to +100°C |
| Storage Temperature (Sensor) | –52°C to +105°C |
| Size (L × W × H) | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
Applications
Vibration Monitoring – Radial and axial vibration measurement in turbines, compressors, and pumps.
Shaft Position Measurement – Accurate detection of shaft displacement in fluid-film bearing machines.
Keyphasor and Speed Monitoring – Supports reference and speed measurement for rotating equipment.
Condition Monitoring Systems – Integrates with Bently Nevada monitoring systems for predictive maintenance.
Advantages
API 670 Compliance for mechanical configuration, accuracy, and stability.
Interchangeable Components – No need for individual calibration.
High RFI/EMI Immunity – Suitable for installations without shielded conduit.
Flexible Mounting – DIN-rail or panel mount options.
Robust Design – Gold-plated connectors, SpringLoc terminals, and corrosion-resistant materials.
Extended Temperature Capability with compatible ETR probes and cables.
Frequently Asked Questions (FAQ)
Q1: What probes are compatible with the 330180-X1-R0 Proximitor Sensor?
A1: It is compatible with 3300 XL 8 mm proximity probes and legacy 3300 series 5 mm probes.
Q2: Is the sensor compliant with API 670 standards?
A2: Yes, the standard 5 m system fully complies with API 670 requirements.
Q3: Can it be used in hazardous areas?
A3: Yes, it has CSA, ATEX, and IECEx approvals for Zone 0, Zone 2, and Division 2 hazardous areas.
Q4: What is the recommended installation gap?
A4: The recommended gap for radial vibration measurement is 1.27 mm (50 mils), equivalent to –9 Vdc output.
Q5: Does it require special calibration for each installation?
A5: No, components are fully interchangeable and pre-calibrated at the factory.
Q6: Can it be mounted on a DIN rail?
A6: Yes, DIN-rail mounting options are available.
Q7: What is the operating temperature range for the sensor?
A7: –52°C to +100°C for operation, and –52°C to +105°C for storage.
Q8: Is it resistant to radio frequency interference?
A8: Yes, it has improved RFI/EMI immunity and meets CE mark requirements.
Q9: Can it measure both vibration and shaft position?
A9: Yes, it is designed for both static (position) and dynamic (vibration) measurements.
Q10: What is the linear measurement range?
A10: The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm.
