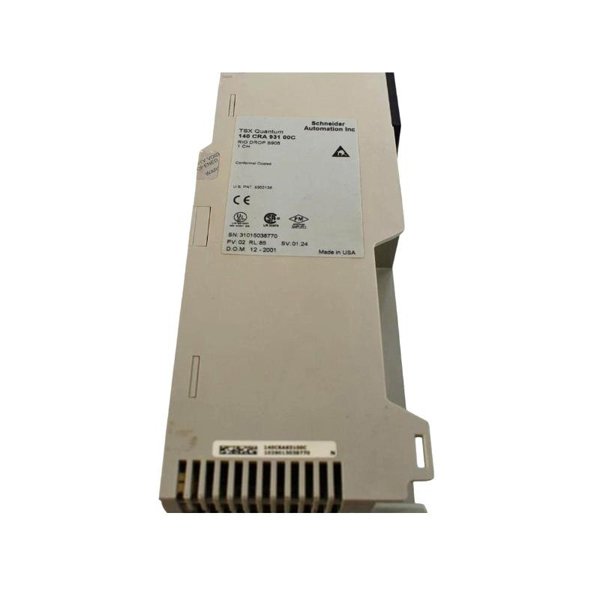

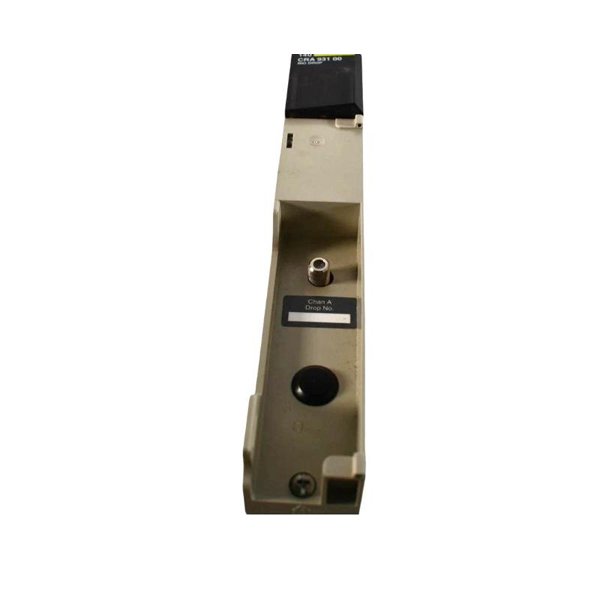

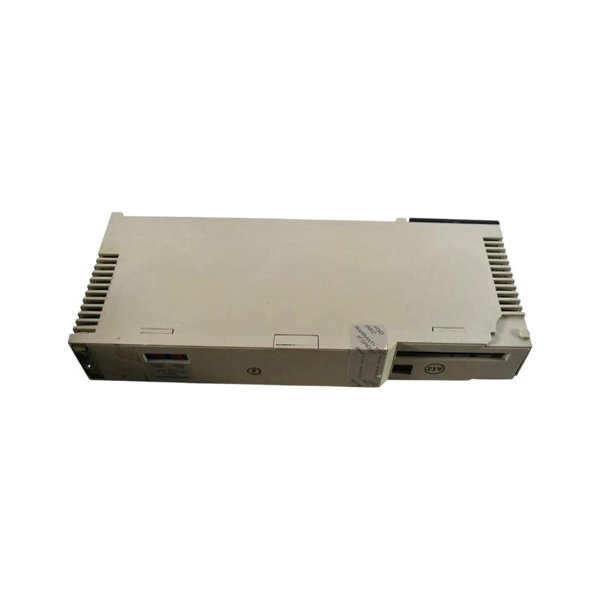

Schneider 140CRA93100C RIO Branch Adapter Module

The Schneider 140CRA93100C RIO Branch Adapter Module is a high-performance device used to expand the connectivity options of Schneider Electric’s Quantum automation system. This module provides a flexible and efficient solution for Remote I/O (RIO) configurations, allowing additional input/output devices to be easily integrated into the system. The 140CRA93100C module enables communication between various devices and the main control system, ensuring smooth data transfer and improved operational efficiency.

Designed for industrial environments, the 140CRA93100C adapter module supports real-time data exchange and offers robust performance even under demanding conditions. It is typically used in process control, manufacturing systems, and automation setups where high reliability and scalability are essential. This module supports an intuitive setup and is designed for easy integration with existing systems.

Product Specifications

Applications

The 140CRA93100C RIO Branch Adapter Module is designed for use in automation systems, allowing for seamless communication between input/output (I/O) devices and the central control system. Some of the main applications of this module include:

1. Industrial Automation Systems: The module is ideal for expanding and enhancing the capabilities of automation systems, ensuring smooth integration of additional I/O devices for more efficient processes.

2. Manufacturing Plants: It is used to connect various field devices to the control system, ensuring proper data collection and enabling automatic adjustments to equipment as needed.

3. Process Control Systems: The 140CRA93100C helps in controlling critical processes by transmitting data from field devices such as sensors, actuators, and other equipment to the central control system in real-time.

4. Building Automation Systems: It is useful in integrating various building systems, including HVAC, lighting, and security systems, with the central management system for optimal energy use and control.

5. Energy Management Systems: This module enables effective integration with energy management systems to monitor and control energy consumption in real time, contributing to energy savings and efficiency.

6. Oil & Gas Industry: In oil and gas processing plants, the module connects different devices for process monitoring, contributing to safety and efficiency in remote operations.

7. Water Treatment Plants: The module can be used to connect sensors and control devices that are critical for maintaining water quality, flow, and distribution in treatment plants.

8. Mining and Heavy Industry: The 140CRA93100C is utilized to enhance the connectivity of monitoring and control systems, especially in industries that require high levels of automation and remote control.

Product Advantages

1. Seamless Integration: The 140CRA93100C RIO Branch Adapter Module integrates smoothly with Schneider Electric’s Quantum automation system, making it an excellent choice for expanding the capabilities of existing setups.

2. Scalability: This module allows you to easily expand the I/O capacity of your system, making it ideal for industries that require scalable solutions.

3. Flexible Communication: It supports multiple communication protocols such as Modbus and Ethernet/IP, offering flexibility in how devices communicate within the network.

4. Compact Design: With its compact size, the module can be mounted easily on a DIN rail, making it space-efficient and suitable for a variety of environments.

5. Reliable Performance: Designed for industrial use, it is built to perform reliably even under harsh conditions such as high temperatures, humidity, and vibration.

6. Power Efficiency: The module operates on a 24V DC power supply, which is energy-efficient and common in industrial settings.

7. Real-time Data Exchange: It enables real-time communication between I/O devices and the central control system, helping to maintain optimal system performance and efficiency.

8. Wide Temperature Range: The module can operate in temperatures ranging from -20°C to +60°C, allowing it to function in a wide variety of industrial environments.

9. Cost-Effective: The 140CRA93100C provides an affordable way to expand your system’s capabilities, offering a high level of performance at a reasonable price.

10. Easy Installation and Maintenance: Its simple DIN rail mounting and intuitive setup process make installation and maintenance quick and easy, reducing downtime and operational disruptions.

FAQs

1. What is the total packaging size of the Schneider 140CRA93100C?

   The packaging dimensions are 50 x 170 x 310 mm.

2. How much does the packaging of the Schneider 140CRA93100C module weigh?

   The packaging weighs 0.522 kg.

3. What is the power supply requirement for the 140CRA93100C module?

   The module operates on a 24V DC power supply.

4. What communication protocols does the 140CRA93100C module support?

   It supports Modbus and Ethernet/IP communication protocols.

5. What is the temperature range for the 140CRA93100C module?

   The module can operate in temperatures ranging from -20°C to +60°C.

6. How is the 140CRA93100C module mounted?

   The module is mounted on a DIN rail, which is a standard for industrial equipment.

7. What types of devices can the 140CRA93100C module connect to?

   The module connects to various I/O devices, such as sensors, actuators, and other field devices, within the Schneider Electric Quantum system.

8. Can the 140CRA93100C be used in outdoor environments?

   While it is designed for industrial environments, the module can be used outdoors as long as it is protected from extreme weather conditions and moisture.

9. Is the 140CRA93100C module compatible with other Schneider Electric systems?

   Yes, the module is compatible with Schneider Electric’s Quantum system, which is widely used in automation and control applications.

10. How many devices can the 140CRA93100C module support?

    The module supports a scalable number of I/O devices, depending on the configuration of the system and the available communication bandwidth.
