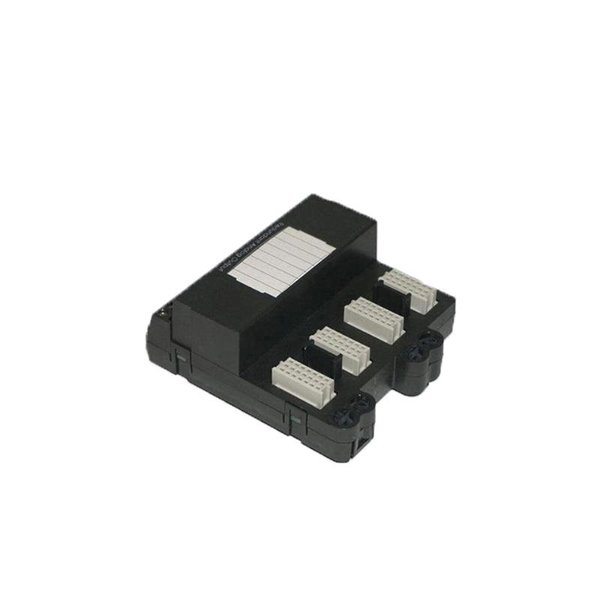

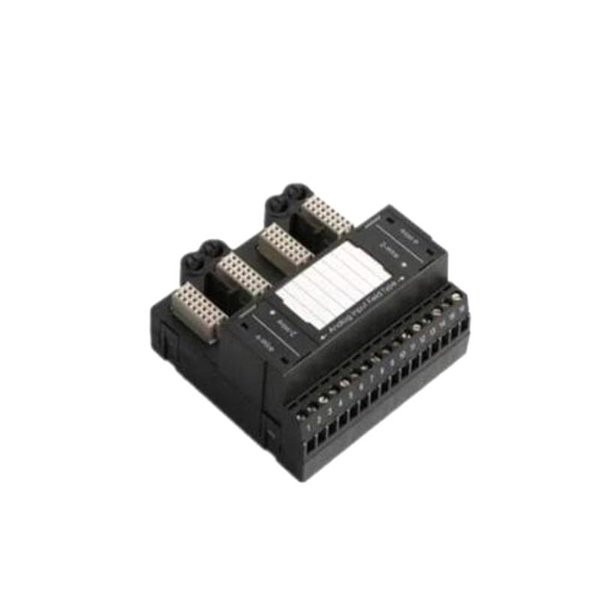

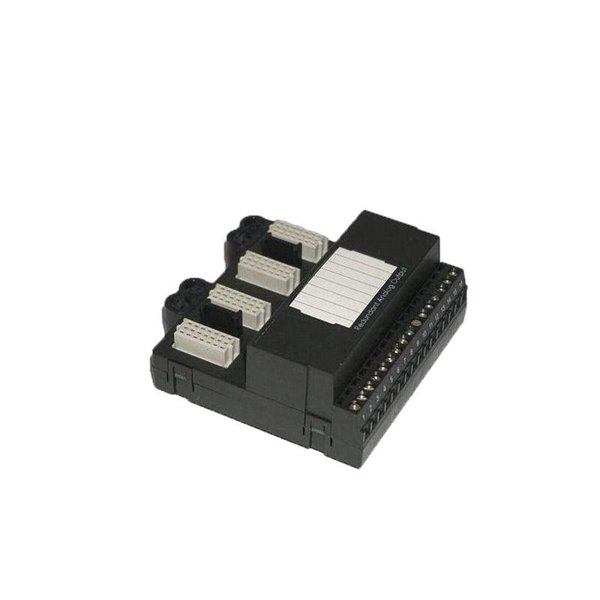

Emerson KC4011X1-BP1 16-Channel Terminal Block

The Emerson KC4011X1-BP1 is a 16-channel, 4-wire analog input terminal block designed for integration with Emerson’s DeltaV S-series distributed control system (DCS). Engineered for high-density analog signal acquisition, this module facilitates precise and reliable data collection from field instruments, making it ideal for complex industrial automation environments. Its robust construction and hazardous area certifications ensure safe and dependable operation in challenging conditions.

Product Specifications

Product Applications

The KC4011X1-BP1 terminal block is utilized across various industries for precise analog signal acquisition:

• Oil and Gas: Monitoring pressure, temperature, and flow in upstream and downstream operations.

• Chemical Processing: Collecting data from pH sensors, flow meters, and temperature transmitters.

• Power Generation: Measuring parameters in turbines, boilers, and generators.

• Pharmaceuticals: Ensuring accurate readings from critical process instruments.

• Water Treatment: Monitoring water quality parameters like turbidity and chemical concentrations.

• Food and Beverage: Maintaining consistent product quality through precise process control.

Product Advantages

• High-Density Input: Supports 16 analog input channels, reducing the need for multiple modules.

• 4-Wire Configuration: Ensures accurate signal measurement by providing separate paths for power and signal.

• Hazardous Area Certified: Suitable for use in environments with explosive gases or dust.

• Robust Environmental Tolerance: Operates reliably in extreme temperatures and high humidity.

• Low Noise and High Accuracy: Delivers precise measurements with minimal signal interference.

• Easy Integration: Seamlessly connects with Emerson’s DeltaV S-Series systems.

• Modular Design: Facilitates straightforward installation and maintenance.

• Diagnostic Features: Built-in diagnostics aid in quick troubleshooting and system health monitoring.

Frequently Asked Questions (FAQ)

1. What is the primary function of the KC4011X1-BP1?

   It serves as a 16-channel, 4-wire analog input terminal block for Emerson’s DeltaV S-Series DCS, enabling accurate data acquisition from field instruments.

2. Can this module be used in hazardous environments?

   Yes, it holds certifications like ATEX, IECEx, FM, and CSA, making it suitable for hazardous areas.

3. What types of signals does it support?

   It supports analog signals in the range of -40 mA to 20 mA.

4. Is the module hot-swappable?

   Yes, it can be added or removed without shutting down the system, provided no I/O cards or field wiring are connected.

5. What is the power requirement for each channel?

   Each channel requires 30 VDC at 500 mA.

6. How does the 4-wire configuration benefit signal accuracy?

   It separates power and signal paths, minimizing voltage drops and ensuring precise measurements.

7. What is the module’s noise level?

   It has a noise level of less than 0.5 µV RMS, ensuring high signal integrity.

8. What are the physical dimensions of the module?

   It measures 120  x 80 x 50 mm.

9. How much does the module weigh?

   0.5 kg.

10. Is it compatible with other Emerson systems?

    It is specifically designed for the DeltaV S-Series but may be compatible with other systems; consult Emerson’s documentation for details.
