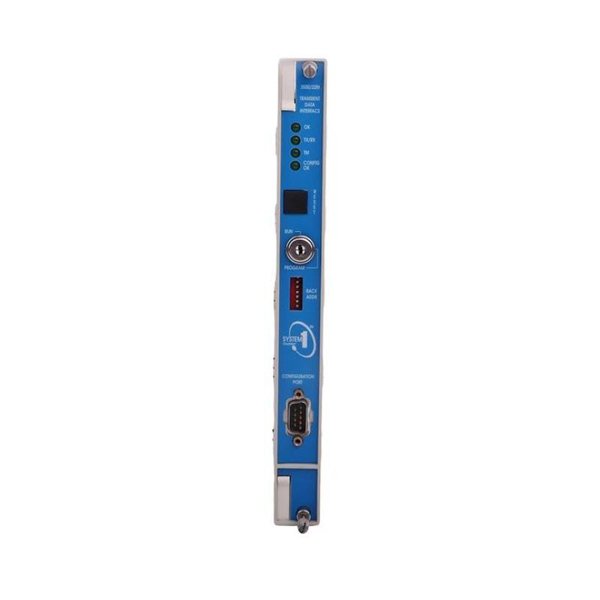

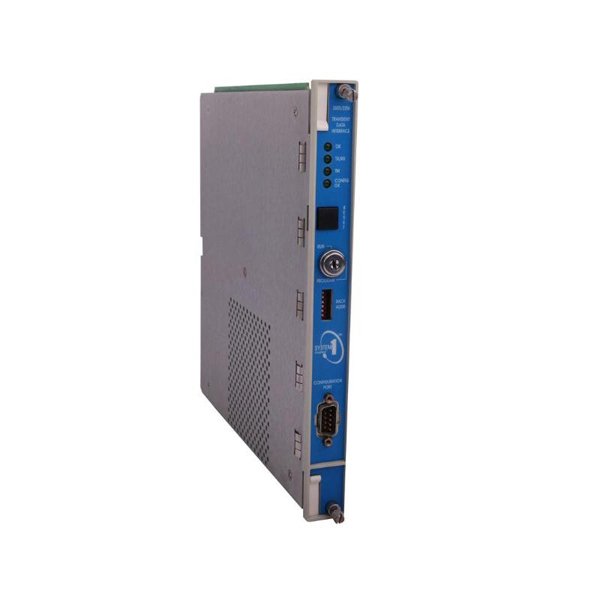

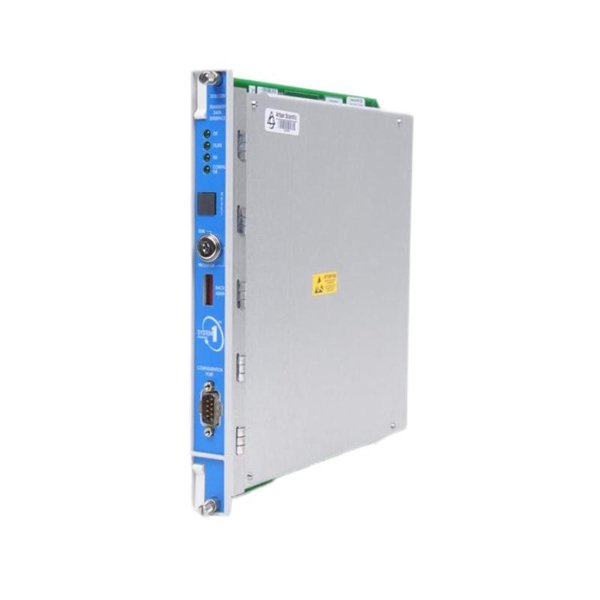

Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module

The Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module is an advanced and reliable component designed to provide real-time transient data acquisition and processing within Bently Nevada’s 3500 series machinery protection and condition monitoring systems. This module plays a critical role in capturing and analyzing dynamic signals from rotating equipment, such as vibration, displacement, and other operational parameters, enabling early fault detection and performance optimization.

By using this module, industrial operations can gain deep insights into machinery behavior, thus allowing maintenance teams to perform predictive maintenance strategies. This proactive approach reduces the risk of unplanned downtime, enhances equipment lifespan, and ensures the efficient operation of critical machinery.

The 3500/22M module can be easily integrated with other Bently Nevada monitoring equipment, making it a versatile solution for a wide range of industrial applications, including power generation, oil and gas, chemical processing, and manufacturing. Its 0.91 kg lightweight construction and 19-inch rack mount capability provide both flexibility and ease of installation, ensuring seamless operation in various industrial environments.

Key Features

• Transient Data Acquisition: Enables high-fidelity acquisition of transient data from rotating machinery to assess the machine’s condition under varying operational circumstances.

• Real-Time Monitoring: Provides continuous monitoring of dynamic signals, which is essential for detecting faults like imbalance, misalignment, or bearing wear in real-time.

• Seamless Integration with 3500 Series: Easily integrates with other components of the 3500 series, creating a comprehensive machinery monitoring system for improved asset management.

• High-Precision Data Processing: The module provides precise data acquisition with enhanced digital signal processing, ensuring accurate and reliable measurements.

• Wide Temperature Range: Designed to operate effectively in harsh environments, the module supports a wide temperature range from -40°C to 85°C, ensuring versatility across different industrial applications.

• Compact Design: The module’s 241.3 x 24.4 x 241.8 mm dimensions allow for easy installation in confined spaces, making it ideal for tight industrial environments.

• Durability: Built with high resistance to vibration, temperature, and chemical exposure, the module guarantees long-term reliability and performance.

Product Parameters

Product Applications

The Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module serves various industrial applications where transient data from machinery needs to be monitored and processed. Some of the key industries and applications include:

• Power Generation: Used in power plants to monitor critical rotating machinery such as turbines and generators. The module ensures these machines are operating optimally by capturing transient data and detecting potential faults early.

• Oil & Gas: In the oil and gas industry, the module monitors pumps, compressors, and other vital equipment. By acquiring transient data, it helps detect misalignments, imbalances, and other mechanical issues before they lead to failure.

• Manufacturing: In manufacturing environments, this module is used to monitor the health of high-precision machinery such as conveyor belts, presses, and motors. It provides real-time data to help detect faults and improve machine performance.

• Chemical Processing: The module ensures the performance of equipment such as pumps, mixers, and reactors, helping to avoid unplanned shutdowns by providing early warning signals.

• Compressor & Pump Monitoring: Often employed in industries that rely on compressors and pumps, the module captures transient signals to detect issues like cavitation, imbalance, and excessive vibration.

• Industrial Automation: The module plays a key role in real-time machinery monitoring and performance optimization, enabling better operational control and reducing equipment failures across automated systems.

Advantages of the Product

1. High Precision: The module ensures accurate transient data acquisition, crucial for assessing the condition of machinery and identifying faults in their early stages.

2. Real-Time Fault Detection: Continuous transient data monitoring enables real-time fault detection, ensuring that any potential issues are identified before they lead to equipment failure.

3. Seamless Integration with 3500 Series: This module integrates effortlessly with other Bently Nevada monitoring components, allowing users to build a comprehensive machinery protection and condition monitoring system.

4. Compact Design: Despite its powerful capabilities, the 3500/22M-01-01-00 module is compact and can easily be installed in 19-inch racks, making it suitable for environments with space constraints.

5. Durability in Harsh Environments: Designed to withstand high temperatures, vibration, and exposure to chemicals, the module is robust enough for demanding industrial settings.

6. Energy Efficiency: The module is energy-efficient, with a typical power consumption of just 12 W, helping to reduce operational costs.

7. Wide Temperature Range: It operates in extreme conditions, with a temperature range from -40°C to 85°C, allowing it to be used in various industrial environments.

8. Improved Predictive Maintenance: By acquiring transient data, the module enhances predictive maintenance capabilities, reducing unplanned downtime and lowering maintenance costs.

9. Ease of Use: The interface and setup process are designed to be user-friendly, with easy integration into existing machinery monitoring systems.

10. Cost Savings: By detecting faults early and preventing failures, the 3500/22M-01-01-00 module helps reduce maintenance costs and minimize the risk of costly downtime.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Bently Nevada 3500/22M-01-01-00 Transient Data Interface Module?

   • The module collects and processes transient data from rotating machinery, enabling real-time monitoring of machine health and detecting faults early.

2. How does the module support predictive maintenance?

   • By providing real-time data on the condition of machinery, the module helps detect potential issues before they lead to unplanned downtime, enhancing predictive maintenance strategies.

3. What industries benefit from using the 3500/22M-01-01-00 module?

   • The module is ideal for industries such as power generation, oil and gas, chemical processing, manufacturing, and industrial automation.

4. What is the power consumption of the module?

   • The typical power consumption is 12 W, ensuring energy efficiency while maintaining optimal performance.

5. What is the temperature range for the Bently Nevada 3500/22M-01-01-00 module?

   • The module operates effectively in temperatures ranging from -40°C to 85°C, making it suitable for harsh industrial environments.

6. How is the module mounted?

   • The module can be easily installed in 19″ rack mount configurations, making it versatile and easy to integrate into existing systems.

7. Can the module be integrated with other Bently Nevada monitoring components?

   • Yes, the module seamlessly integrates with other 3500 series components, providing a comprehensive monitoring solution for rotating machinery.

8. What is the weight of the module?

   • The 3500/22M-01-01-00 module weighs 0.91 kg, making it lightweight and easy to handle during installation.

9. What kind of data does the module capture?

   • The module captures transient data related to vibration, displacement, and other operational parameters from machinery.

10. What is the size of the Bently Nevada 3500/22M-01-01-00 module?

    • The module’s dimensions are 241.3 x 24.4 x 241.8 mm, allowing for compact installation in confined spaces.
