The GE IS200VRTDH1DAB is a specialized circuit board designed to interface with Resistance Temperature Detectors (RTDs) within the GE Mark VI control system. This board converts analog RTD signals into digital data for the control system.

Function

• RTD Excitation: Powers RTD sensors, ensuring accurate temperature measurement.
• Signal Conditioning: Amplifies and filters RTD signals, improving accuracy.
• Analog-to-Digital Conversion: Converts analog RTD signals into digital values.
• Data Transmission: Transmits digital temperature data to the control system via the VME backplane.
• Fault Detection: Monitors RTD signals, detecting open or short circuits.

Construction

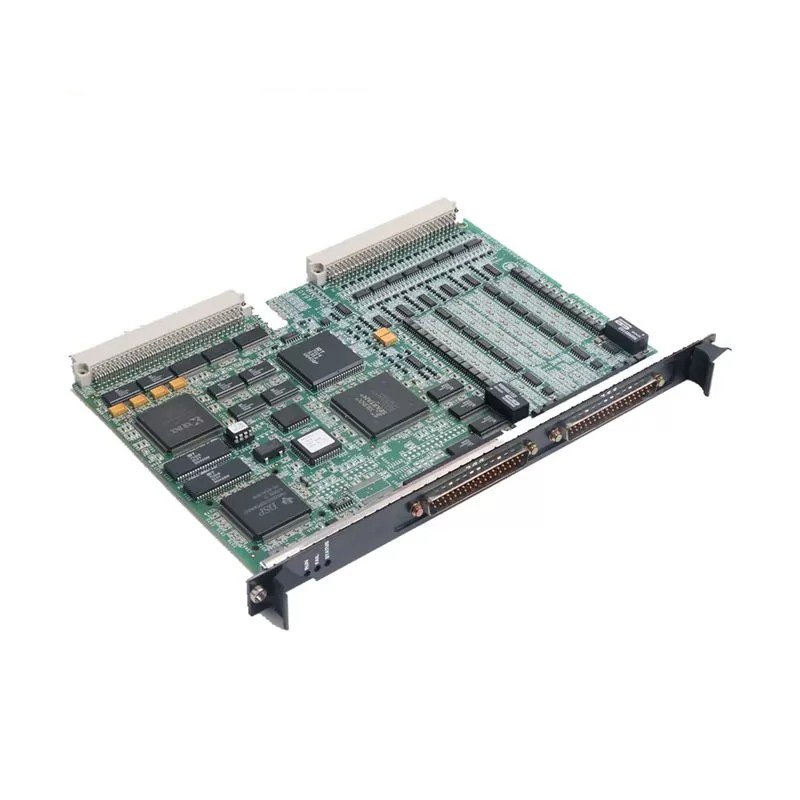

The IS200VRTDH1DAB is a compact circuit board with resistors, capacitors, and integrated circuits. Its design ensures reliable operation in industrial environments.

Compatibility

The board integrates seamlessly into the GE Mark VI control system and requires an RTD terminal board to connect RTD sensors.

Benefits

• Delivers accurate temperature measurement
• Ensures reliable performance in industrial settings
• Fully compatible with the GE Mark VI control system
• Serves as an essential component for process control applications
