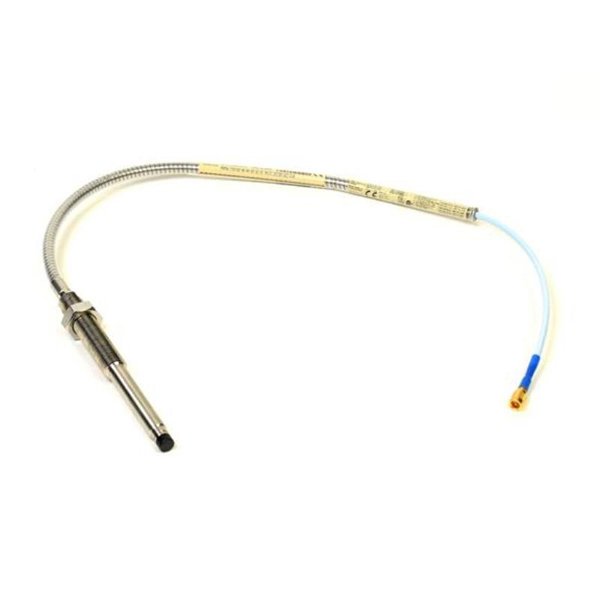

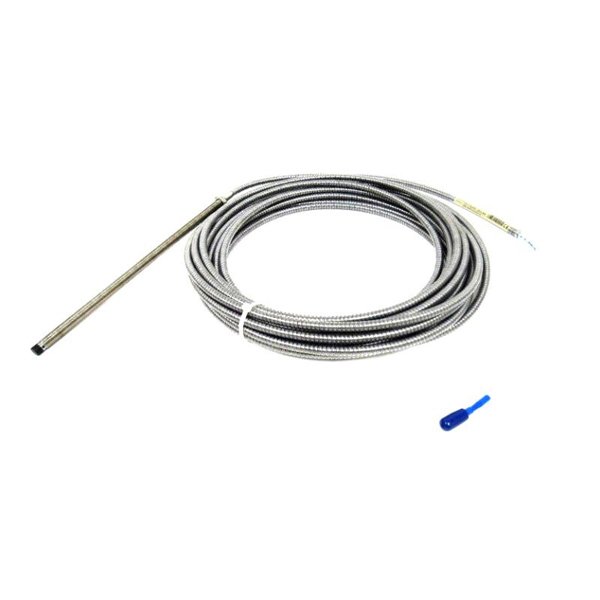

Bently Nevada 330102-00-40-10-01-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-00-40-10-01-CN
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:36
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-00-40-10-01-CN is a robust, armored version of the 3300 XL 8 mm Proximity Probe. It provides accurate static and dynamic measurements of position and vibration on rotating machinery. This probe is engineered for use in fluid-film bearing machines and is fully compliant with API 670 standards. It features high interchangeability and enhanced durability with armored cable construction.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel 303/304 |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz |
| Minimum Target Size | 15.2 mm diameter |
| Minimum Shaft Diameter | 50.8 mm recommended |
Applications
-
Vibration and position monitoring of fluid-film bearing machinery
-
Keyphasor reference and overspeed detection
-
High-temperature and high-density industrial environments
-
Critical rotating equipment in oil & gas, power generation, and petrochemical industries
Product Advantages
-
API 670 compliant performance
-
Rugged armored cable for enhanced durability
-
Interchangeable with other 3300 and XL components
-
Resistant to RFI/EMI for reliable operation
-
SpringLoc and ClickLoc connectors for secure, tool-free installation
-
Optional FluidLoc to prevent oil ingress
Frequently Asked Questions (FAQ)
Q1: What is the main application of the 330102 probe?
A1: It is primarily used for measuring vibration and position on fluid-film bearing machines.
Q2: Is this probe compliant with API 670?
A2: Yes, it fully complies with API 670 mechanical configuration and performance standards.
Q3: Can this probe be used with non-XL systems?
A3: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm and 5 mm components.
Q4: Does it include an armored cable?
A4: Yes, this model comes with an armored cable for added mechanical protection.
Q5: What is the linear measurement range?
A5: It has a linear range of 2 mm (80 mils).
Q6: How is it mounted?
A6: The probe has a 3/8-24 UNF threaded connection for secure installation.
Q7: What is the minimum shaft diameter it supports?
A7: It is recommended for shafts 50.8 mm (2 inches) or larger.
Q8: What is the frequency response of the system?
A8: The system responds linearly up to 10 kHz.
Q9: Can it operate in high humidity?
A9: Yes, it has minimal scale factor change in 93% relative humidity over 56 days.
Q10: Does it require special tools for connection?
A10: No, thanks to ClickLoc and SpringLoc connectors, no special tools are needed.
