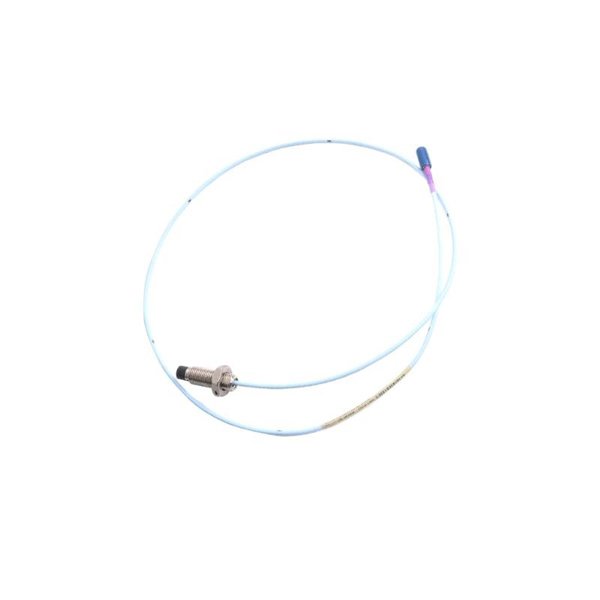

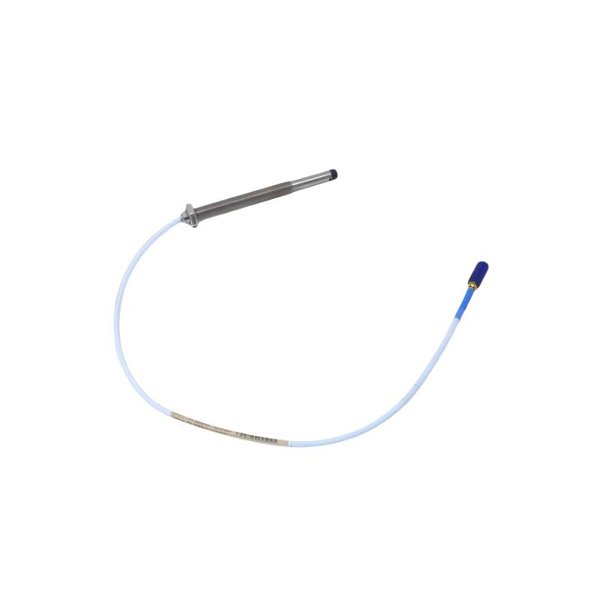

Bently Nevada 330103-12-20-50-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-12-20-50-02-00 3300 XL 8 mm Proximity Probe is a highly reliable and precision-engineered proximity sensor designed for measuring the displacement of machinery parts. Manufactured by Bently Nevada, a renowned leader in machine condition monitoring and protection, this 3300 XL Proximity Probe is specifically built to provide accurate and consistent readings in industrial applications where reliability is critical.

This proximity probe utilizes advanced sensing technology to measure the position of rotating machinery parts, such as shafts and bearings. With a robust design, the 3300 XL is ideal for integration into harsh industrial environments, ensuring continuous, real-time monitoring of machine health and performance. The 8 mm sensor is well-suited for various applications, offering enhanced sensitivity and precision, especially in rotating machinery, compressors, and pumps.

With a total length of 5.0 meters and a weight of 1.615 kg, the 3300 XL probe is engineered for optimal performance in environments that require long-range measurements and durability. This product is part of the Bently Nevada 3300 Series, known for its high performance and long service life.

Product Parameters

Product Applications

The 3300 XL 8 mm Proximity Probe is widely used in industries where precise measurement of the relative displacement between a probe and a machine part is necessary. Common applications include:

• Machine Condition Monitoring: Provides real-time measurements for machinery such as turbines, compressors, and motors, enabling early detection of wear and tear.

• Turbine and Generator Protection: Measures shaft displacement in steam turbines, gas turbines, and generators, ensuring efficient and safe operation.

• Pump Monitoring: Used to monitor the alignment and vibration of pumps, providing critical data for maintenance schedules.

• Motor and Bearing Vibration: Monitors vibration levels and shaft displacement to detect imbalance or misalignment in motors and bearings.

• Automated Monitoring Systems: Integrated into automated condition monitoring systems, providing continuous data to predictive maintenance software for better machine health management.

• Refineries and Power Plants: Commonly deployed in harsh environments like refineries, petrochemical plants, and power stations for consistent performance monitoring.

Product Advantages

• High Precision: The 8 mm probe offers excellent accuracy in measuring displacement, ensuring reliable data for machine condition monitoring.

• Durable Design: Built to withstand harsh industrial environments, with IP67 protection rating for resistance to dust and water.

• Wide Operating Temperature Range: The probe functions within a temperature range of -40°C to +85°C, making it ideal for diverse industrial conditions.

• Long Measurement Range: With a total length of 5.0 meters, the probe can be installed in large machinery systems, allowing for flexible setup in different environments.

• Reliable Output: The probe provides a 4-20 mA analog output, compatible with a variety of monitoring systems, offering seamless integration and data processing.

• Versatile Mounting: It can be mounted using either DIN rail or direct mounting, offering flexibility depending on installation requirements.

• Low Maintenance: The high-quality construction of the probe ensures minimal maintenance needs, allowing for long-term operation without frequent replacements.

• Eddy Current Technology: The eddy current sensing technology provides highly reliable and accurate measurements without direct contact, minimizing wear and tear on the equipment.

• Corrosion Resistance: Built with materials resistant to corrosion, the probe is well-suited for use in environments exposed to chemicals, humidity, and extreme temperatures.

• Long-Term Reliability: The Bently Nevada 3300 XL series is designed for long-term operation, ensuring consistent performance over extended periods.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Bently Nevada 3300 XL 8 mm Proximity Probe?

A1: The primary function of the 3300 XL 8 mm Proximity Probe is to measure the displacement of rotating machinery parts, providing accurate and reliable data for machine condition monitoring.

Q2: What is the total length of the Bently Nevada 3300 XL 8 mm Proximity Probe?

A2: The total length of the probe is 5.0 meters.

Q3: What is the weight of the 3300 XL 8 mm Proximity Probe?

A3: The weight of the probe is 1.615 kg.

Q4: What type of output does the probe provide?

A4: The probe provides an analog voltage output in the form of a 4-20 mA signal.

Q5: What is the accuracy of the Bently Nevada 3300 XL 8 mm Proximity Probe?

A5: The probe offers an accuracy of ±0.001 mm.

Q6: Can the probe be used in high-temperature environments?

A6: Yes, the probe operates effectively in temperatures ranging from -40°C to +85°C, making it suitable for use in high-temperature environments.

Q7: What is the maximum frequency range of the probe?

A7: The frequency range of the probe is 100 Hz to 5 kHz.

Q8: How is the Bently Nevada 3300 XL 8 mm Proximity Probe mounted?

A8: The probe can be mounted using DIN rail or direct mount, offering flexible installation options.

Q9: Is the Bently Nevada 3300 XL 8 mm Proximity Probe resistant to environmental factors?

A9: Yes, the probe has an IP67 protection class, making it resistant to dust and water, ensuring reliable operation in harsh environments.

Q10: What industries commonly use the Bently Nevada 3300 XL 8 mm Proximity Probe?

A10: The probe is commonly used in industries such as power generation, oil and gas, manufacturing, and chemical processing, for monitoring turbines, motors, pumps, and other critical machinery.
