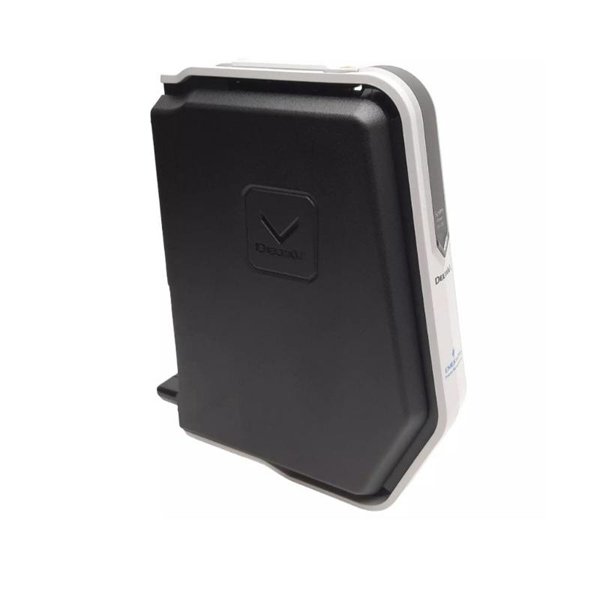

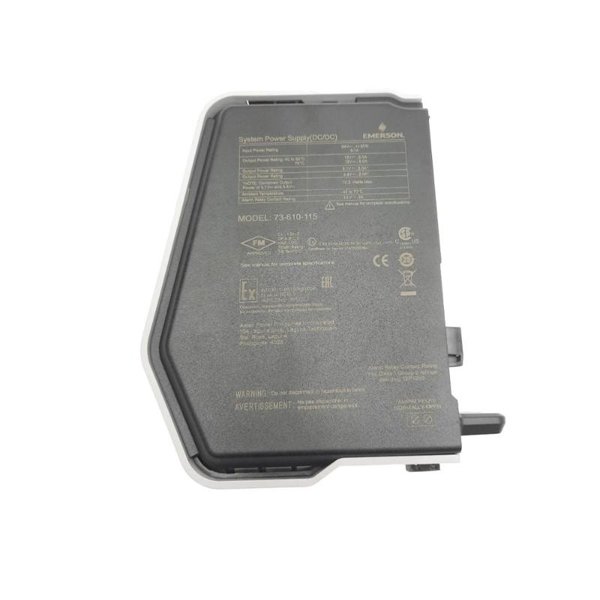

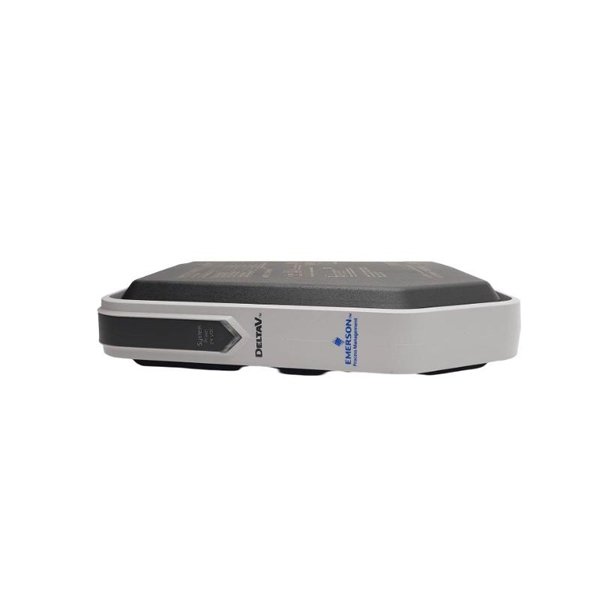

Emerson KJ1501X1-BK1 SE5009 DC/DC Power Supply

The Emerson KJ1501X1-BK1 SE5009 is a highly efficient DC/DC power supply designed to convert one DC voltage level to another within an industrial control system. It ensures stable and reliable power distribution for sensitive equipment, such as controllers, sensors, and transmitters. This power supply unit is part of the Emerson SE5009 series, which is well-regarded for its robustness, high-performance capabilities, and versatility in a variety of industrial automation applications.

Featuring a compact design, the KJ1501X1-BK1 offers high efficiency and is able to operate across a wide input voltage range. It is ideal for use in applications requiring stable, regulated DC voltage outputs to support demanding industrial equipment. With its dimensions of 214 x 145 x 40 mm and a weight of 0.8 kg, this power supply is well-suited for space-limited environments where reliability and performance are critical.

The KJ1501X1-BK1 SE5009 is an essential component for powering controllers, I/O modules, and communication devices, ensuring that industrial operations run smoothly and efficiently.

Product Parameters

Product Applications

The Emerson KJ1501X1-BK1 SE5009 DC/DC power supply is designed for use in various industrial automation systems where stable and efficient power conversion is required. Key applications include:

• Process Control Systems: It is used to power essential components of process control systems, including sensors, transmitters, and controllers in industries such as oil and gas, chemical processing, and water treatment.

• Automation and Control Panels: The power supply is integrated into control panels to provide stable voltage to field devices and programmable logic controllers (PLCs), ensuring smooth operation in factory automation.

• Data Communication Devices: The KJ1501X1-BK1 SE5009 can be used to power communication interfaces, such as Ethernet switches, modems, and data acquisition systems, ensuring reliable data transmission in real-time operations.

• HVAC Systems: It is commonly used to power HVAC controllers, temperature sensors, and other equipment in building automation systems.

• Battery-Powered Equipment: The power supply supports battery backup systems, ensuring that critical systems remain operational in the event of power failure.

The ability to operate in demanding environments and provide stable output makes this power supply ideal for mission-critical applications.

Product Advantages

The Emerson KJ1501X1-BK1 SE5009 DC/DC power supply offers several key advantages:

• Compact and Space-Efficient Design: The 214 x 145 x 40 mm form factor makes it easy to integrate into compact control panels, optimizing space utilization in confined environments.

• High Efficiency: With an efficiency rate of 90% (typical), the power supply reduces energy loss, ensuring that more of the power is converted into usable output while minimizing heat generation.

• Wide Operating Temperature Range: With an operating temperature range of -20°C to +60°C, this power supply is suitable for both harsh industrial environments and outdoor applications.

• Versatile Voltage Outputs: The unit supports multiple output voltages (5 V DC, 12 V DC, and 15 V DC), making it adaptable to various system requirements.

• Natural Cooling: The power supply operates with natural convection cooling, eliminating the need for fans and reducing maintenance costs and failure risks.

• Reliable Performance: Built with industrial-grade components, the KJ1501X1-BK1 SE5009 ensures long-term performance and minimizes downtime, contributing to the overall reliability of the system.

• CE and UL Certified: The power supply meets global safety standards, ensuring that it is safe to use in various industrial environments.

FAQ

1. What is the input voltage of the Emerson KJ1501X1-BK1 SE5009 power supply?

   • The input voltage is 24 V DC.

2. What output voltages are supported by the KJ1501X1-BK1 SE5009?

   • The power supply provides 5 V DC, 12 V DC, and 15 V DC outputs.

3. What is the efficiency of the KJ1501X1-BK1 SE5009 power supply?

   • The efficiency is typically 90%, ensuring minimal energy loss during operation.

4. What are the dimensions and weight of the KJ1501X1-BK1 SE5009?

   • The power supply measures 214 x 145 x 40 mm and weighs 0.8 kg.

5. What certifications does the KJ1501X1-BK1 SE5009 have?

   • The power supply is CE, UL, and RoHS certified.

6. Can this power supply be mounted on a DIN rail?

   • Yes, the KJ1501X1-BK1 SE5009 is designed to be DIN rail mounted for easy integration into control panels.

7. What is the operating temperature range of the KJ1501X1-BK1 SE5009?

   • The operating temperature range is from -20°C to +60°C.

8. Does the KJ1501X1-BK1 SE5009 require external cooling?

   • No, the power supply uses natural convection cooling, which means no additional cooling is required.

9. What is the primary use of the KJ1501X1-BK1 SE5009?

   • It is primarily used to convert DC voltage levels in industrial automation systems for powering various devices like sensors, controllers, and transmitters.

10. What industries benefit from using this DC/DC power supply?

    • The KJ1501X1-BK1 SE5009 is used across industries such as oil and gas, chemical processing, manufacturing, and HVAC systems.
