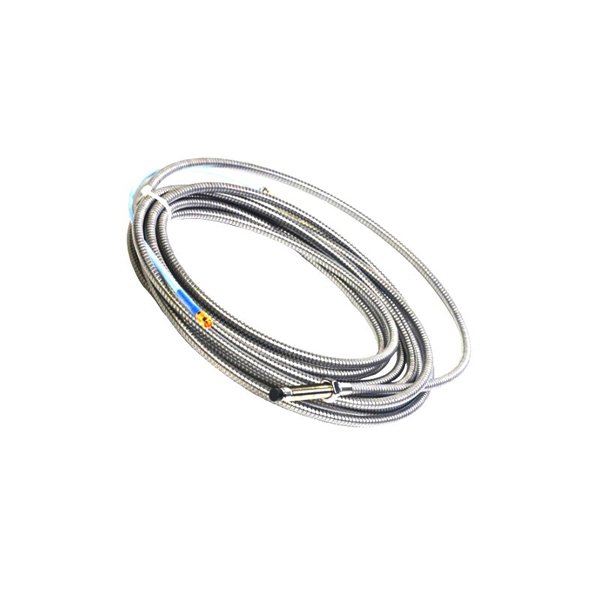

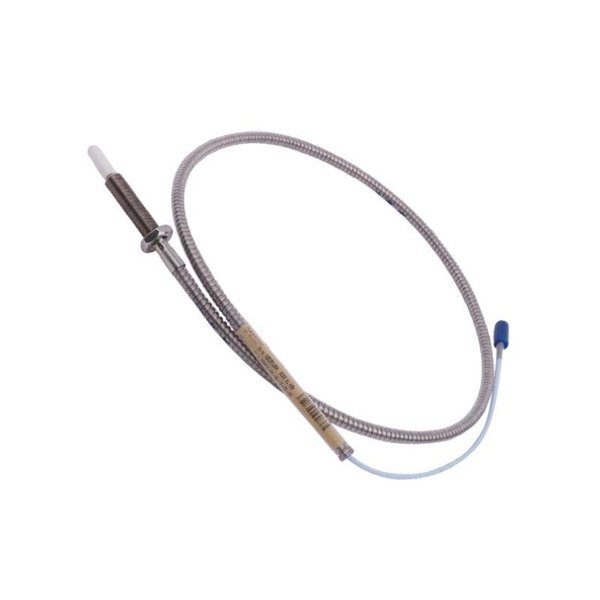

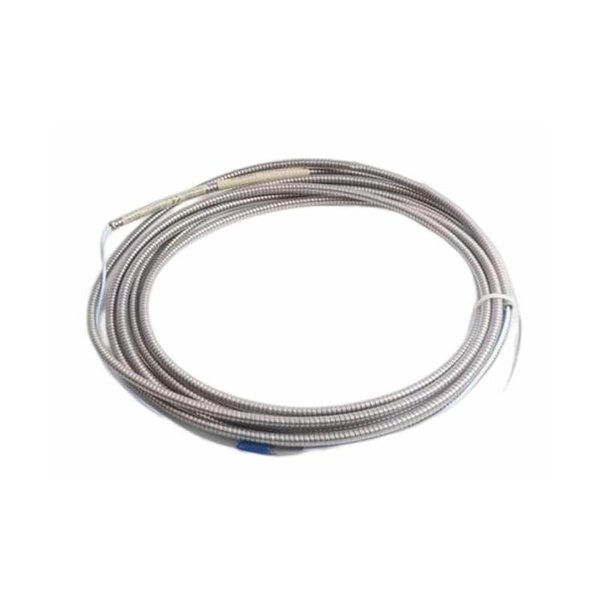

Bently Nevada 330104-00-09-15-01-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-09-15-01-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.5 meter
Weight:0.485 kg
Views:32
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-09-15-01-00 is a robust 8 mm proximity probe designed for vibration and position monitoring of rotating machinery. It measures the gap between the probe tip and the conductive surface, delivering high precision for static and dynamic readings. This model comes with M10×1 threads and armored cable, making it ideal for harsh industrial environments requiring superior protection and reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Thread | M10×1 |
| Total Length | 1.5 m (4.9 ft) |
| Weight | 0.485 kg |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored with ClickLoc connectors |
| Temperature Range (Probe) | -52°C to +177°C (Standard) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
Applications
-
Vibration monitoring in turbines, compressors, and pumps.
-
Shaft position measurement in critical rotating equipment.
-
Speed and Keyphasor signal generation.
-
Use in high-temperature and high-pressure environments with armored cable.
Advantages
-
Fully compliant with API 670 standards.
-
Superior RFI/EMI immunity.
-
ClickLoc connectors for secure, tool-free connections.
-
Armored cable and rugged construction for durability.
-
Backward compatibility with non-XL 3300 series components.
Frequently Asked Questions
Q1: What is the linear measurement range of this probe?
A1: The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm.
Q2: Is this probe suitable for high-temperature applications?
A2: Yes, it operates in temperatures up to +177°C for the standard version.
Q3: What type of cable is used?
A3: The probe comes with an armored triaxial cable offering mechanical protection.
Q4: Does it require special tools for installation?
A4: No, the ClickLoc connectors allow for finger-tight, secure installation.
Q5: Is it compatible with older Bently Nevada 3300 systems?
A5: Yes, it is backward and electrically compatible with non-XL 3300 series components.
Q6: Can it withstand high humidity?
A6: Yes, it remains stable with less than 3% ASF change even at 93% relative humidity.
Q7: What is the minimum recommended shaft diameter?
A7: The recommended minimum shaft diameter is 76.2 mm (3 in).
Q8: What approvals does it have?
A8: CSA, ATEX, and IECEx approvals are available.
Q9: What maintenance is required?
A9: Regular inspection for connector integrity and cleanliness of the probe tip is recommended.
Q10: Does the probe include connector protectors?
A10: Yes, it comes with connector protectors pre-installed for added environmental protection.
