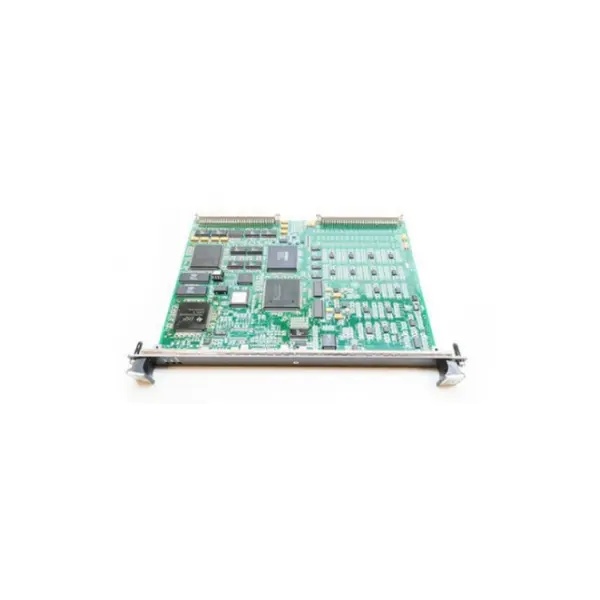

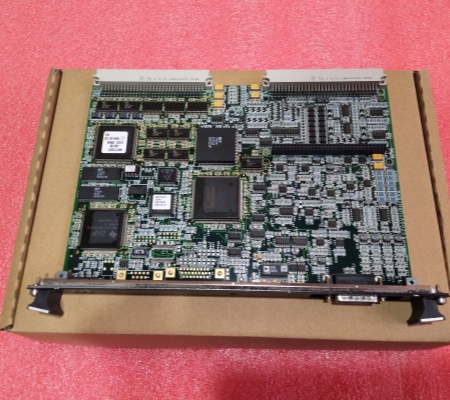

General Electric IS200VTURH1BAA Turbine Specific Primary Trip Board
Manufacture :General Electric
Item No :IS200VTURH1BAA
Article number :IS200VTURH1BAA
Series :Mark VI
Origin :United States（US）
Dimension :180*180*30(mm)
Weight :0.9 kg
Customs Tariff Number :85389091
Type :Turbine Specific Primary Trip Board
Product Description
The IS200VTURH1BAA is the main turbine protection card. It controls overspeed trip relays located on the TRPx terminal board. It has nine magnetic relays that are interconnected to three trip solenoids. In a TMR system, all nine relays are used. In a simplex system, only three relays are used. The IS200VTURH1BAA can only be installed in the VME processor rack when powered off. Indicator lights are labeled Status, Fault, and Operation. The board is designed to measure turbine speed from up to four pulse rate signals. The VTUR effectively measures turbine speed using four passive pulse rate devices. This measurement data is transmitted to the controller which generates the main overspeed trip signal. In addition to overspeed protection, the VTUR facilitates automatic generator synchronization, ensuring seamless coordination between generator systems. It also manages the closing of the main circuit breakers, improving system efficiency during operation.
Frequently asked questions about the product are as follows:
-What are the main functions of IS200VTURH1BAA?
Monitor key operating parameters and trigger tripping when abnormal conditions are detected to protect the turbine from damage.
-What are the main features of IS200VTURH1BAA?
Ensure system safety, multi-parameter monitoring, and fast response.
-How to configure IS200VTURH1BAA?
Set thresholds for monitoring parameters. Configure trip logic and response time. Save and verify the configuration.
