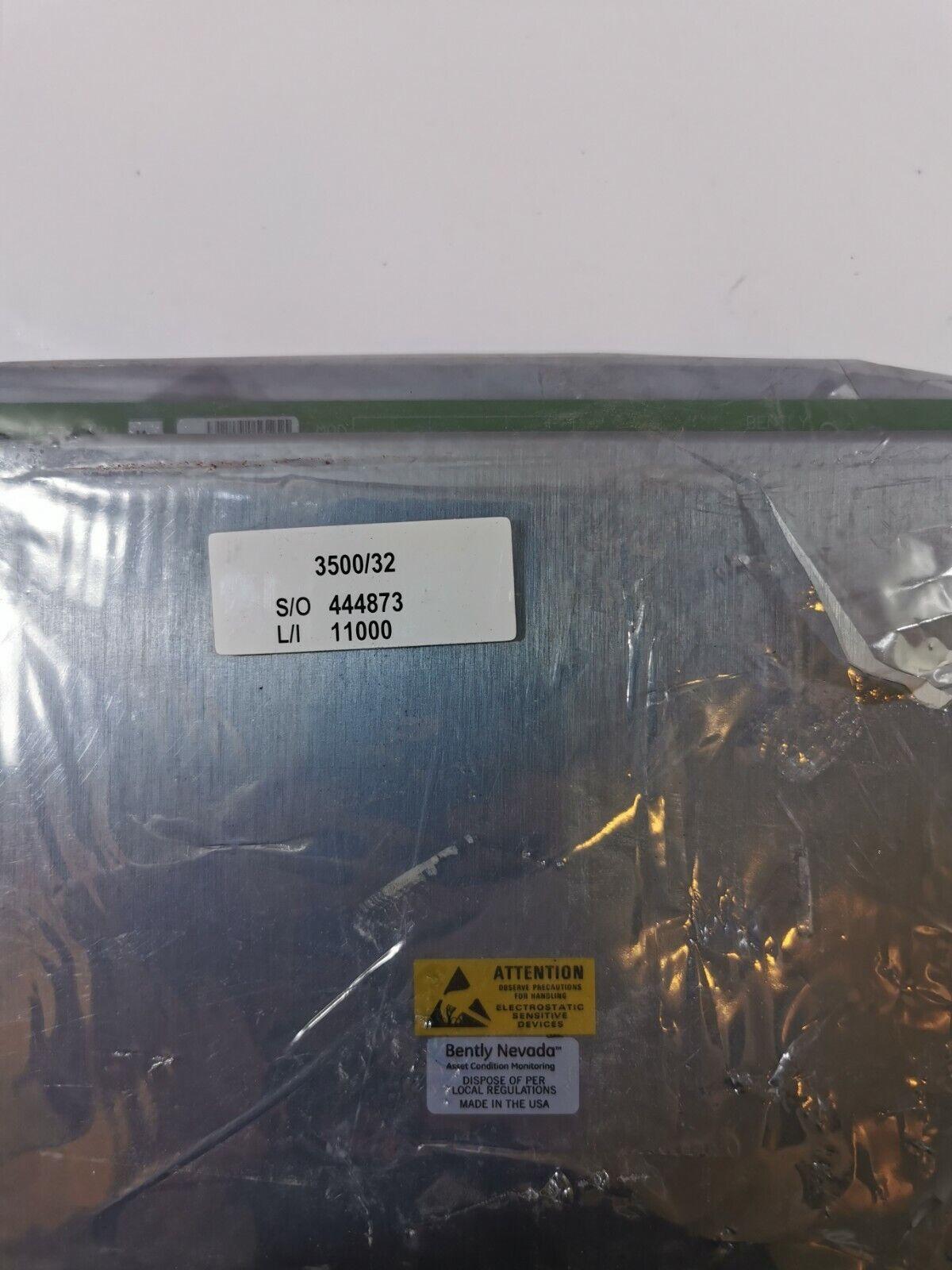

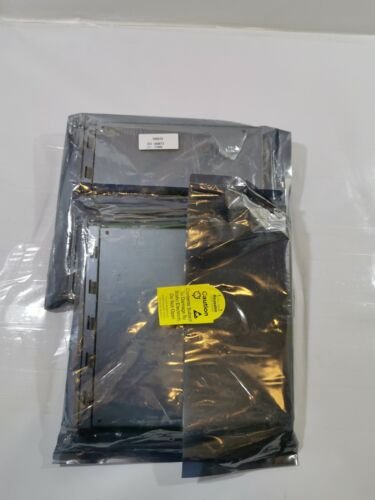

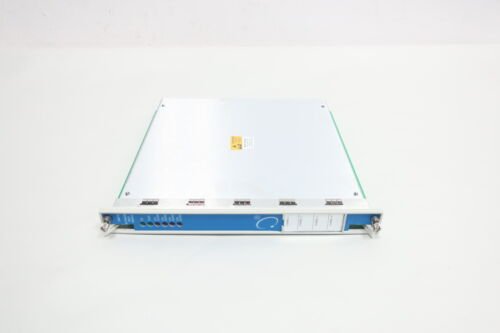

Bently Nevada 3500/32 125712-01 4-Channel Relay Module

The Bently Nevada 125712-01 4-Channel Relay Module, a compact and versatile industrial control device from the USA, offers four isolated relay outputs with a 24 VDC voltage rating. You can configure these relays as normally open or closed. It’s compatible with the Bently Nevada 3500/32 vibration monitoring system and holds CE and RoHS certifications. Weighing 0.5 kg with dimensions of 100 x 70 x 40 mm, this module is ideal for controlling motors, solenoid valves, alarms, and equipment monitoring in industrial settings. It comes with a 1-year warranty for added reliability.

Description

• The module provides four relay outputs.
• Multiple modules can be placed in the slots to the right of the Rack Interface Module.
• Each relay can be independently programmed for specific logic.
• Alarm Drive Logic is programmed using AND and OR logic, with inputs from monitor channels in the rack.
• It is compatible with the 3500 Rack Configuration Software for customization.
• Note: TMR applications require a different module – the 3500/34 TMR Relay Module.

Specifications

• Inputs: Power consumption is 6 watts typical.
• Outputs:
  • OK LED: Illuminates when the module is functioning properly.
  • TX/RX LED: Flashes to indicate proper communications between modules.
  • CH ALARM LED: Illuminates when the Relay Channel is in an alarm state.
• Relays:
  • Type: Two single-pole, double-throw (SPDT) relays connected in a double-pole, double-throw (DPDT) configuration.
  • Environmental Sealing: Epoxy-sealed.
  • Arc Suppressor: 250 Vrms (installed as standard).
  • Contact Life: 100,000 cycles @ 5 A, 24 Vdc, or 120 Vac.
  • Operation: Each channel is switch-selectable for Normally De-energized or Normally Energized.
• Environmental Limits:
  • Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
  • Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
  • Humidity: 95%, non-condensing.
• CE Mark Directives:
  • EMC Directives: IEC61000-6-4, Radiated Emissions, Conducted Emissions, Electrostatic Discharge, Radiated Susceptibility, Conducted Susceptibility, Electrical Fast Transient, Surge Capability, Magnetic Field, Power Supply Dip, Radio Telephone.
  • Low Voltage Directives: Safety Requirements.
• Hazardous Area Approvals:
  • CSA/NRTL/C Approval Option (01): Class I, Div 2, Groups A, B, C, D, T4 @ Ta = -20 °C to +65 °C (-4 °F to +150 °F), Certification Number CSA 150268-1002151 (LR 26744).
• Contact Ratings:
  • Resistive load: Max switched power: dc: 120 W, ac: 600 VA
  • Minimum switched current: 10mA @ 5 Vdc
  • Max switched current: 5 A
  • Max switched voltage: dc: 30 Vdc, ac: 250 Vac.
• Physical:
  • Main Module Dimensions: 241 mm x 24.4 mm x 242 mm, Weight: 0.7 kg (1.6 lb.).
  • I/O Module Dimensions: 241 mm x 24.4 mm x 99.1 mm, Weight: 0.4 kg (1.0 lb.).
• Rack Space Requirements:
  • Main Module: 1 full-height front slot.
  • I/O Modules: 1 full-height rear slot.

To learn more about the 3500/53 Overspeed Detection Module, please read the PDF online:  3500-32
