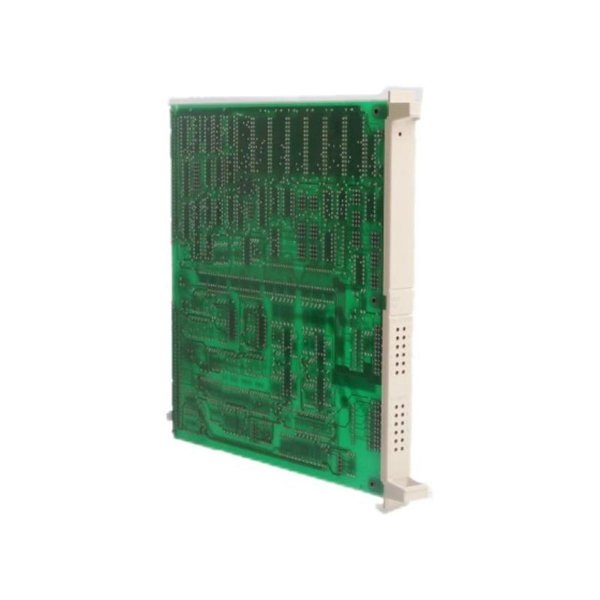

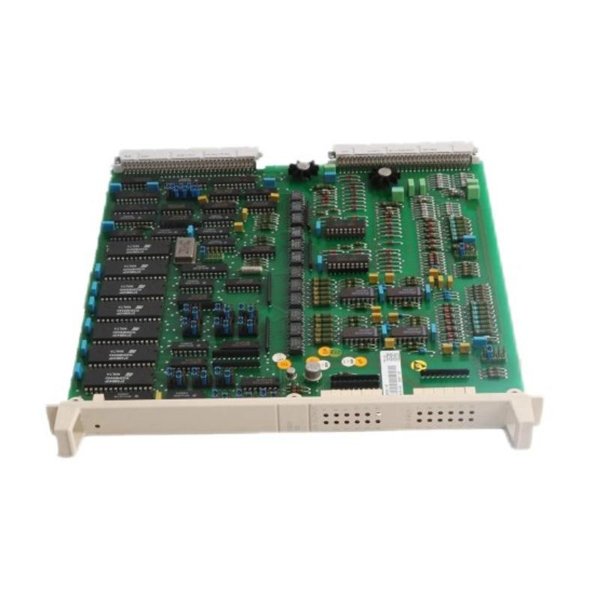

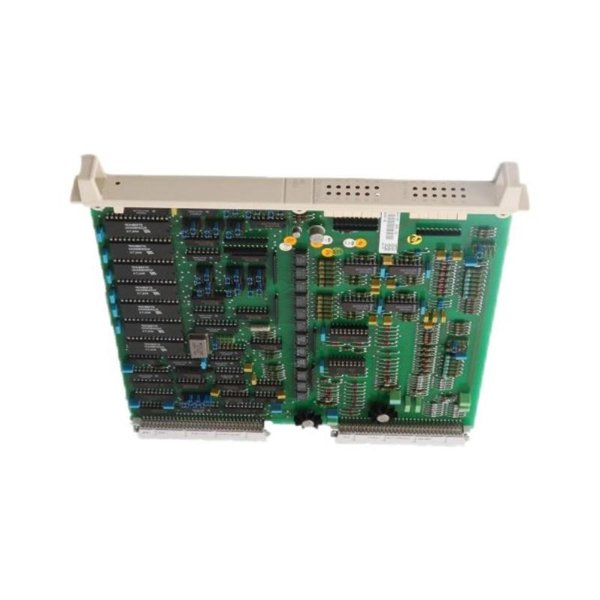

ABB DSMB114 57360001-MG DS Memory Module

The ABB DSMB114 57360001-MG is a memory expansion module designed for ABB’s Advant Master Distributed Control System (DCS) family. As a key component in ABB’s control system architecture, the DSMB114 serves as a non-volatile memory module, allowing for extended data storage, configuration retention, and system reliability within controller and I/O systems.

Installed in ABB controllers such as the PM510/PM511/PM512, the DSMB114 provides secure storage for system firmware, configuration data, process parameters, and system diagnostics. It is widely used in applications where system integrity, deterministic control, and fault tolerance are required.

Thanks to its robust industrial design and long lifecycle support, the DSMB114 remains a dependable solution in legacy ABB installations worldwide, particularly in industries where continuous operation is critical.

Key Features

• Non-volatile memory module for ABB Advant Master systems

• Stores controller configurations, firmware, and process data

• Ensures data retention during power failures or reboots

• Designed for use with PM5xx series of ABB controllers

• Provides safe and fast memory access for real-time applications

• Plug-in module, easily installable in designated controller slots

• Field-proven durability in industrial automation environments

• Supports firmware updates and system backups

• Power Generation and Utilities: Retains critical data in turbine, generator, and grid control systems

• Petrochemical Plants: Stores safety and alarm configuration data in hazardous environments

• Pharmaceutical Manufacturing: Ensures process reliability in GMP-regulated control systems

• Pulp and Paper Mills: Maintains machine configuration and runtime parameters

• Steel and Metals: Used in rolling mill automation for consistent process control

• Water and Wastewater Treatment: Stores logic and historical data for remote pumping stations and filters

Product Advantages

• Secure Data Retention: Ensures your control system’s firmware and parameters remain intact during shutdowns

• System Compatibility: Designed specifically for ABB PM5xx series and other Advant Master controllers

• Ease of Maintenance: Simple replacement during system upgrades or memory failures

• Legacy Support: Helps extend the life of installed ABB control systems

• Reliable Performance: Proven durability in demanding environments

• Compact Design: Minimal footprint with seamless slot-based integration

Frequently Asked Questions (FAQ)

1. Q: What is the function of the DSMB114 module?

   A: It is a memory module that stores system configurations, firmware, and runtime data for ABB Advant controllers.

2. Q: Which systems are compatible with DSMB114?

   A: It works with ABB Advant Master, especially PM510, PM511, and PM512 controllers.

3. Q: What type of memory does the DSMB114 use?

   A: It typically uses non-volatile EEPROM or Flash memory, depending on the version.

4. Q: Is the memory module field-replaceable?

   A: Yes, it is hot-swappable in supported systems and easily installable.

5. Q: Does DSMB114 retain data after power loss?

   A: Yes, it is designed to retain all stored data during outages or reboots.

6. Q: What is the typical memory size of the DSMB114?

   A: Versions range from 128 KB to 512 KB, depending on firmware and configuration.

7. Q: Can it be used for firmware upgrades?

   A: Yes, firmware and control logic updates can be loaded onto the module.

8. Q: What is the physical form of the module?

   A: It is a compact plug-in board that fits inside ABB controller chassis.

9. Q: Is the DSMB114 still available and supported?

   A: Yes, ABB continues to offer support and spares for this legacy product.

10. Q: Does it comply with environmental standards?

    A: Yes, it is compliant with CE and RoHS directives.
