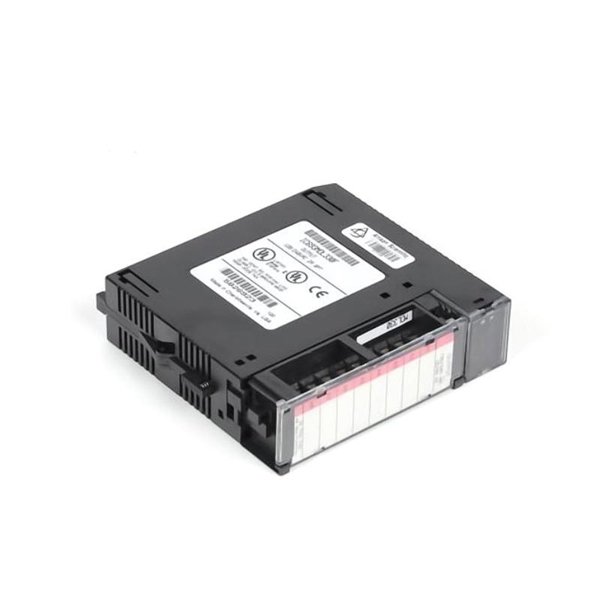

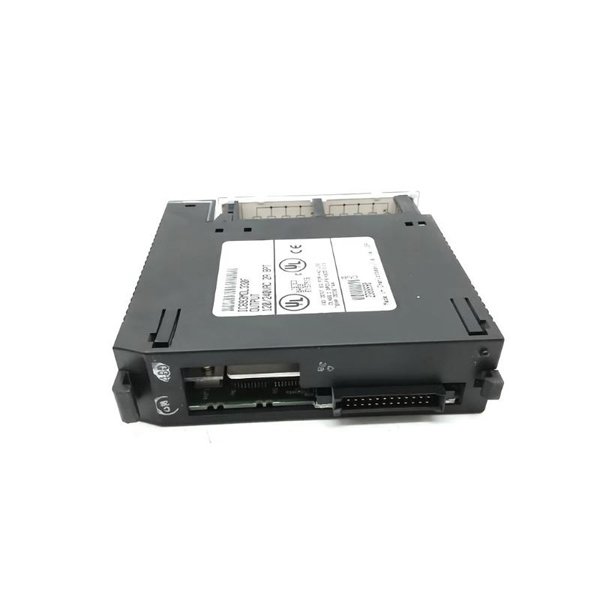

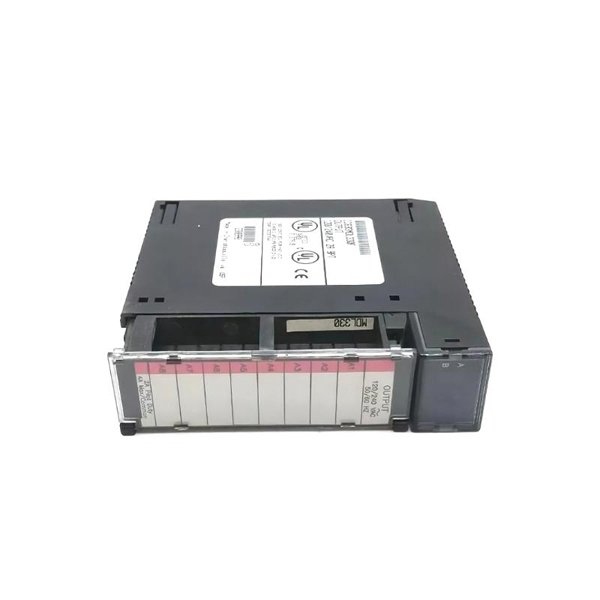

General Electric IC693MDL330 Output Module

The GE IC693MDL330 is a 120VAC Output Module from the GE Series 90-30 Programmable Logic Controller (PLC) product line. Designed to operate as an interface between control systems and AC-powered devices, this module offers 8 individually isolated outputs. It is built for industrial environments where reliable and durable I/O operations are critical.

As part of the GE Fanuc Series 90-30 family, the IC693MDL330 ensures robust output control in distributed or centralized automation applications. It delivers the ability to handle moderate loads with high durability, backed by solid-state switching technology. The module is UL-listed and CE-marked for global compliance and meets industrial safety and electromagnetic compatibility standards.

Technical Specifications

Applications

The GE IC693MDL330 module is widely used in industrial automation settings that require AC load switching. Some common applications include:

• Manufacturing lines: Driving contactors and AC indicator lights.

• Building automation: Controlling HVAC components or lighting systems.

• Water treatment plants: Switching pumps and valves remotely.

• Material handling: Operating conveyors or sorters.

• Machine tools: Activating AC solenoids or alarms.

Its robust isolation and moderate current handling make it ideal for diverse industries including automotive, food and beverage, textiles, and utilities.

Advantages

1. Channel Isolation

   Each of the 8 output channels is optically isolated from the others, enhancing safety and reducing crosstalk.

2. High Load Capacity

   Supports up to 2 Amps per channel and 16 Amps total, suitable for medium-duty industrial applications.

3. Field-Service Friendly

   The removable terminal block simplifies wiring and maintenance.

4. Visual Diagnostics

   LED indicators on the front panel allow quick status checks for each output.

5. Compact Form Factor

   Saves space in crowded control panels without compromising performance.

6. Plug-and-Play with GE Series 90-30

   Seamlessly integrates with GE’s modular Series 90-30 PLC systems.

7. Triac-Based Output

   Offers quiet, reliable switching for resistive and inductive AC loads.

8. Compliance Ready

   Fully certified to meet UL, CE, and industrial safety standards.

Frequently Asked Questions (FAQ)

1. Q: What is the voltage range supported by the IC693MDL330?

   A: The module supports 79 to 132 VAC, operating at 47–63 Hz.

2. Q: Can I use this module with inductive loads like solenoids?

   A: Yes, the triac outputs are capable of driving inductive loads, provided they remain within current limits.

3. Q: Is each output individually isolated?

   A: Yes, all 8 outputs are optically isolated from each other and from the PLC system.

4. Q: How do I monitor output status?

   A: Each output point has a dedicated LED indicator on the module’s front face.

5. Q: What is the power consumption of this module?

   A: It draws approximately 135 mA from the +5V backplane supply.

6. Q: What kind of wiring connector is used?

   A: The module features a removable terminal block for easy wiring.

7. Q: Where can this module be installed in a 90-30 rack?

   A: It can be placed in any I/O slot, offering flexible placement.

8. Q: What’s the operating temperature range?

   A: The module operates in environments between 0°C and 60°C (32°F to 140°F).

9. Q: Does this module require a specific firmware version?

   A: No, it is hardware-based and compatible with standard Series 90-30 systems.

10. Q: Can it be used for safety-critical applications?

    A: While reliable, it is not rated as a safety module; use certified safety I/O modules for such cases.
