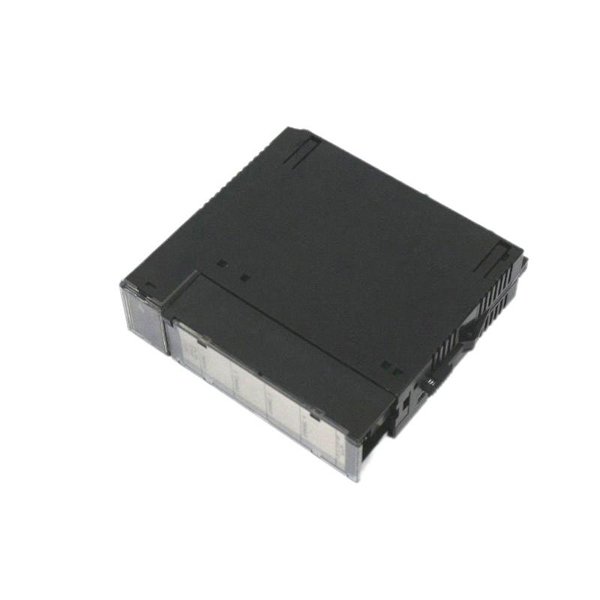

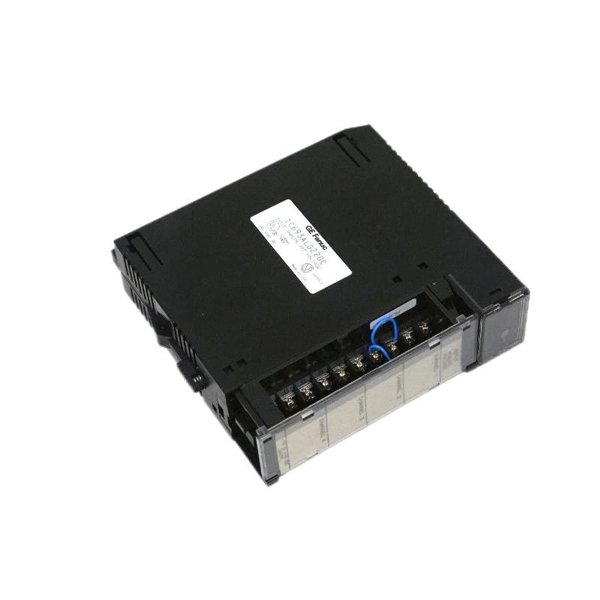

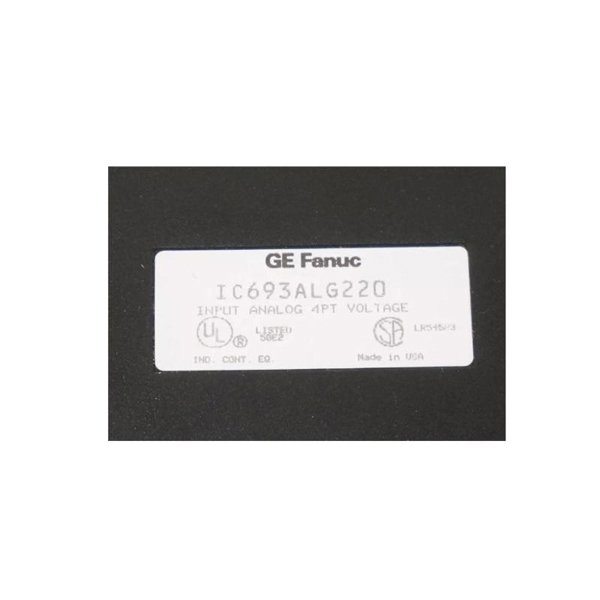

General Electric IC693ALG220 Analog Input Module

The GE IC693ALG220 Analog Input Module is designed as a high-performance input interface for the GE Fanuc Rx3i programmable logic controller (PLC) system. This module facilitates precise measurement of analog signals such as voltage and current from various industrial sensors and transducers. Built for reliability and accuracy, the IC693ALG220 enables seamless integration of analog data into digital control processes, making it a vital component for monitoring and controlling complex automated systems.

The module supports multiple channels with configurable input ranges, enabling it to adapt to diverse industrial requirements. Its robust construction and rigorous testing ensure consistent performance even in challenging industrial environments. By providing high-resolution analog input capabilities, the IC693ALG220 significantly enhances the Rx3i system’s data acquisition and control accuracy.

Product Specifications

Product Applications

• Industrial process control and monitoring

• Data acquisition for factory automation systems

• Measurement of analog signals from temperature sensors, pressure transducers, flow meters, and other instrumentation

• Feedback input for closed-loop control systems

• Integration into water treatment plants, chemical processing, and power generation facilities

• Monitoring environmental parameters in HVAC and building automation

• Supporting batch processing control and real-time analytics

Product Advantages

• High Precision: The 16-bit ADC provides excellent resolution for accurate analog signal measurement.

• Multiple Input Types: Supports both voltage and current inputs, making it versatile for a range of sensor types.

• Reliable Isolation: Optical isolation enhances system safety by preventing ground loops and electrical noise interference.

• Robust Construction: Designed for industrial environments, the module withstands temperature extremes and electrical disturbances.

• Ease of Integration: Directly interfaces with the Rx3i PLC backplane, ensuring smooth installation and communication.

• Fast Sampling: Capable of rapid sampling rates, enabling timely and accurate control decisions.

• Compact Size: Optimized module size conserves cabinet space while offering comprehensive analog input capability.

• Certifications: Meets international safety and quality standards, ensuring reliable operation worldwide.

Frequently Asked Questions (FAQ)

1. What types of analog inputs does the IC693ALG220 support?

   It supports voltage inputs (±10 V) and current inputs (4-20 mA).

2. How many input channels are available on this module?

   The module provides 8 analog input channels.

3. What is the accuracy of the measurements?

   The module offers ±0.1% full scale accuracy.

4. Can the module handle noisy industrial environments?

   Yes, it has optical isolation to reduce electrical noise and prevent ground loop issues.

5. What is the operating temperature range for this module?

   It operates safely between -20°C and +70°C.

6. How is the module powered?

   It receives 5 V DC power from the Rx3i backplane.

7. Is the IC693ALG220 compatible with other GE PLC series?

   It is designed specifically for the Rx3i series and may not be compatible with other series.

8. What is the sampling rate of the analog inputs?

   Up to 100 samples per second per channel.

9. What are the physical dimensions and weight of the module?

   120 x 40 x 100 mm, weighing 0.34 kg.

10. Does the module come with a warranty?

    We provide one year warranty.
