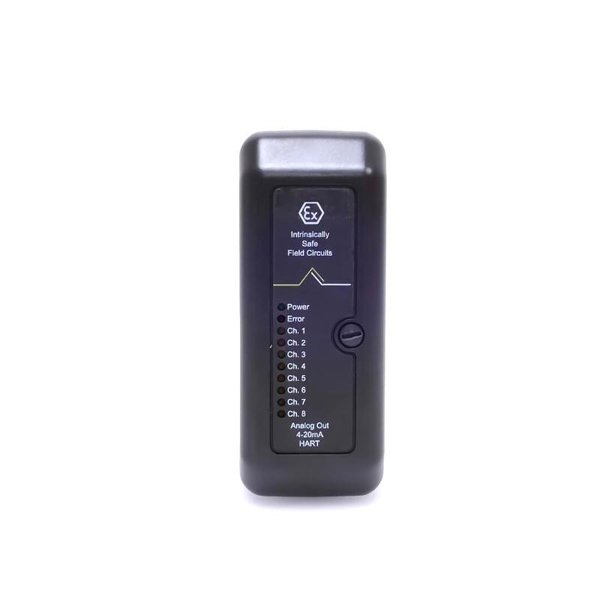

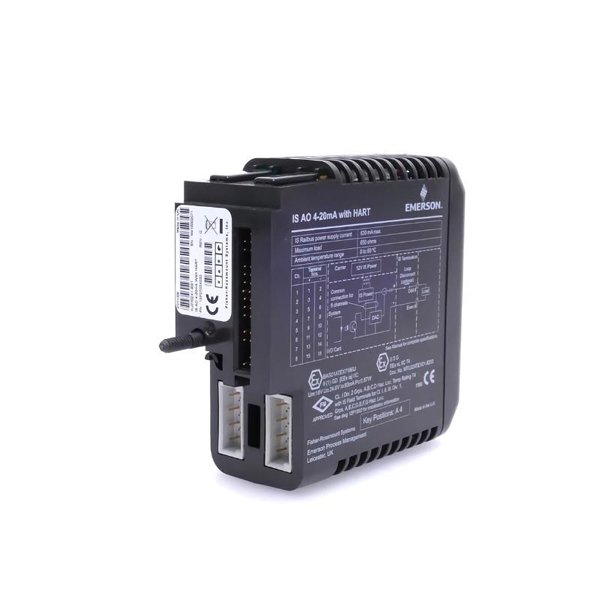

Emerson KJ3102X1-BE1 Safe Analog Output Card

The Emerson KJ3102X1-BE1 is a high-integrity Safe Analog Output (AO) Card designed for use within the DeltaV SIS (Safety Instrumented System). Engineered to meet rigorous safety demands, this module supports up to 8 analog output channels, each capable of providing a 4-20mA signal to final control elements such as control valves or actuators used in safety functions.

With TÜV certification for SIL 3 applications in accordance with IEC 61508, the KJ3102X1-BE1 delivers consistent, dependable performance in safety-critical environments, including chemical plants, oil & gas facilities, and power generation units. This card includes built-in diagnostics, line fault detection, and redundancy support, ensuring optimal performance and safe operation even in extreme industrial conditions.

Technical Specifications

Applications

• Control Valve Safety Actuation – Drives analog output to safety-related actuators for shutdown or modulation based on SIS logic.

• High Integrity Burner Management Systems (BMS) – Controls fuel gas valves with analog positioning in critical burner safety systems.

• Emergency Depressurization Systems – Modulates control valves to safely release pressure in hazardous process scenarios.

• Boiler Safety Systems – Interfaces with actuators managing steam pressure, temperature, and water levels in safety loops.

• Pharmaceutical Batch Control – Delivers precision analog signals in cleanroom environments where validated safety is mandatory.

• Pipeline Monitoring and Control – Safely regulates analog-controlled valves in oil & gas transmission pipelines.

Advantages

• Certified for SIL 3: The module meets international safety standards, ensuring it can be trusted in the most demanding safety applications.

• Redundant-Ready Architecture: Can be configured within redundant safety systems to ensure continuous process operation and failover.

• High Precision Output: 16-bit resolution and tight output accuracy ensure process stability and reliability.

• Comprehensive Diagnostics: Real-time internal diagnostics and line monitoring improve fault detection and reduce troubleshooting time.

• Fail-Safe Flexibility: Configurable output behavior in fault scenarios (hold last value, go to zero, etc.) tailored to application needs.

• DeltaV Native Integration: Seamless integration with DeltaV SIS systems enhances operational transparency and simplifies engineering.

• Wide Environmental Tolerance: Reliable operation in a broad range of industrial temperatures and environmental conditions.

Frequently Asked Questions (FAQ)

1. Q: What is the primary function of the KJ3102X1-BE1?

   A: It serves as a Safe Analog Output Card for providing 4-20 mA signals to final control elements in safety instrumented loops.

2. Q: Is this module SIL 3 certified?

   A: Yes, it is TÜV-certified for use in SIL 3 safety applications in accordance with IEC 61508.

3. Q: How many output channels does the card support?

   A: It offers 8 individually controlled analog output channels.

4. Q: Can this module operate in hazardous environments?

   A: Yes, it is ATEX and IECEx certified for use in hazardous zones.

5. Q: Does the card support diagnostic features?

   A: Yes, it provides real-time diagnostics, including short/open circuit detection and internal hardware monitoring.

6. Q: What happens to the outputs in case of a fault?

   A: The output response is configurable—options include holding the last value or driving the output to a defined safe state.

7. Q: What kind of signals can it output?

   A: Standard industrial 4-20 mA active analog signals.

8. Q: Can it be used in redundant systems?

   A: Yes, it is compatible with redundant DeltaV SIS configurations.

9. Q: How does it integrate with DeltaV systems?

   A: It connects via standard DeltaV carriers and is recognized automatically within the DeltaV engineering environment.

10. Q: What is the module’s size and weight?

    A: Dimensions are 107 x 41 x 105 mm, and it weighs 0.18 kg.
