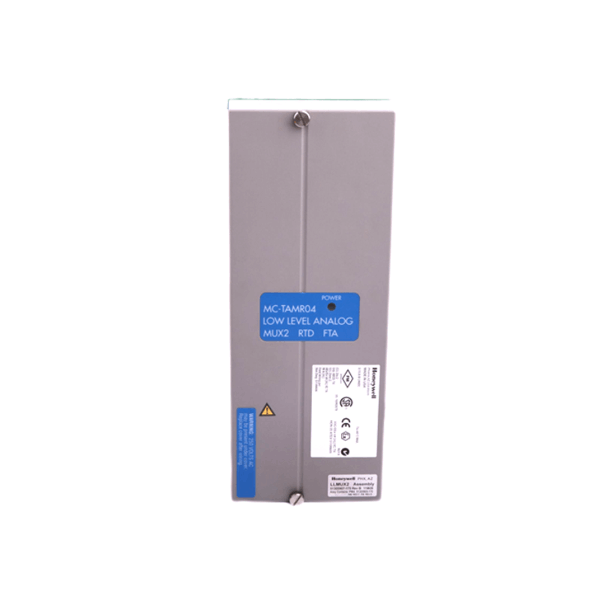

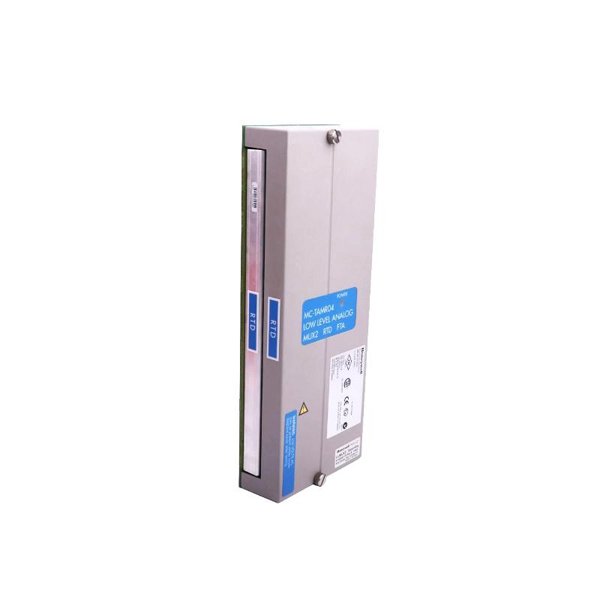

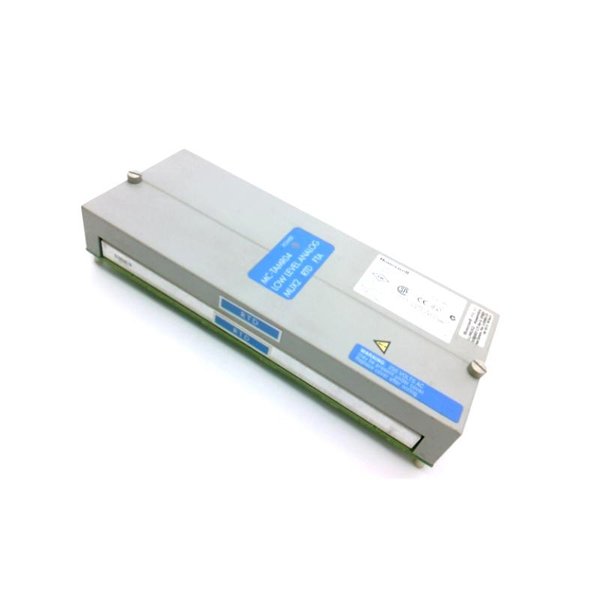

Honeywell MC-TAMR04 51305907-175 Low Level Analog Input Multiplexer RTD

The Honeywell MC-TAMR04 51305907-175 is a Low-Level Analog Input Multiplexer designed to handle RTD (Resistance Temperature Detector) inputs in industrial control and automation systems. This module plays a crucial role in temperature measurement applications, providing accurate and stable readings for process control in various industries.

The MC-TAMR04 is a part of Honeywell’s advanced process automation solutions, ensuring seamless integration with control systems, improved accuracy, and high reliability in harsh industrial environments. Designed to handle multiple RTD inputs, it facilitates precise monitoring and control of temperature-sensitive operations, making it an essential component for industries requiring high-accuracy temperature data acquisition.

This multiplexer is built for durability and performance, featuring a rugged design that withstands extreme environmental conditions. Its ability to interface with different RTD sensors makes it versatile and widely applicable in manufacturing, power plants, chemical processing, and other demanding industries.

Product Specifications

Product Applications

The Honeywell MC-TAMR04 51305907-175 Low-Level Analog Input Multiplexer RTD is widely used in industries where accurate temperature monitoring and control are essential. Some key application areas include:

1. Industrial Process Control – Enables precise temperature measurement and monitoring for industrial automation and manufacturing processes.

2. Power Generation – Used in thermal and nuclear power plants for monitoring boiler and turbine temperatures.

3. Chemical Processing – Ensures accurate temperature control in chemical reactions to maintain process stability and product quality.

4. Oil & Gas Industry – Helps in monitoring pipeline and storage tank temperatures to ensure safety and efficiency.

5. Food & Beverage Processing – Maintains optimal processing temperatures to meet quality standards and regulatory compliance.

6. Pharmaceutical Industry – Ensures accurate temperature control in drug manufacturing and laboratory environments.

7. HVAC Systems – Provides precise temperature monitoring for large-scale heating, ventilation, and air conditioning systems.

8. Metallurgy & Material Science – Used for temperature monitoring in furnaces and heat treatment processes.

Product Advantages

1. High Accuracy & Stability – Provides precise temperature measurements with ±0.1% full-scale accuracy, ensuring reliable data for critical processes.

2. Multiple Channel Support – Supports up to 16 RTD input channels, allowing for extensive temperature monitoring within a single module.

3. Fast Response Time – Features a rapid update rate of 10ms per channel, ensuring real-time temperature monitoring.

4. Robust Design – Built for harsh industrial environments with wide operating temperature and humidity tolerance.

5. Isolation Protection – 1500V RMS isolation ensures safe and interference-free data transmission.

6. Versatile Connectivity – Supports various communication protocols, including Modbus and TCP/IP, for seamless integration with industrial control systems.

7. Low Power Consumption – Operates efficiently with a 10W power consumption, reducing operational costs.

8. Easy Installation – Compact DIN-rail mountable design allows for simple and secure installation in control cabinets.

9. Durability – Industrial-grade enclosure provides long-term reliability in demanding applications.

10. Wide Compatibility – Supports various RTD types such as PT100, PT1000, Cu10, and Ni100, making it suitable for different industries.

FAQ (Frequently Asked Questions)

1. What is the main function of the Honeywell MC-TAMR04 51305907-175?

   • It is a Low-Level Analog Input Multiplexer designed to process RTD temperature sensor inputs for industrial applications.

2. How many RTD channels does this module support?

   • It supports up to 16 RTD input channels.

3. What types of RTD sensors are compatible with this module?

   • It supports PT100, PT1000, Cu10, and Ni100 RTD sensors.

4. What is the power consumption of this multiplexer?

   • The module consumes 10W of power.

5. Can this multiplexer be mounted on a DIN rail?

   • Yes, it is designed for DIN rail mounting.

6. What is the resolution of the analog-to-digital conversion?

   • The module features a 16-bit resolution ADC for high precision.

7. Does the module provide isolation protection?

   • Yes, it offers 1500V RMS isolation protection.

8. What communication interfaces does it support?

   • It supports Serial, Modbus, and TCP/IP communication.

9. Is the module suitable for outdoor use?

   • No, it has an IP30 rating, which makes it suitable for indoor industrial environments.

10. What is the operating temperature range of this device?

• The module operates in a temperature range of -40°C to +85°C.
