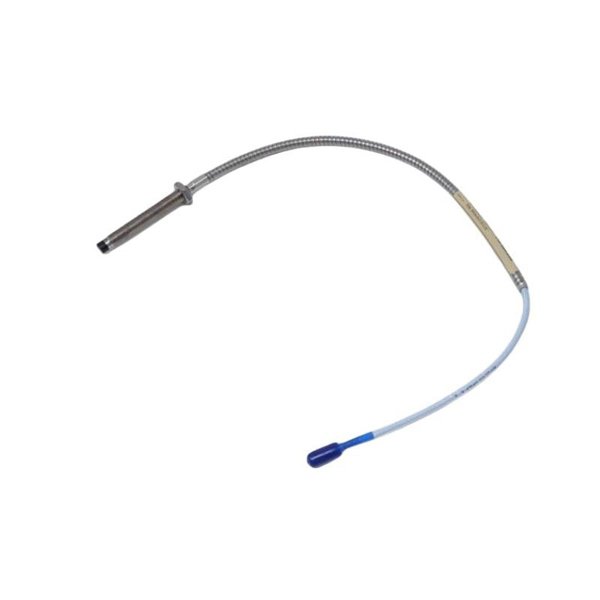

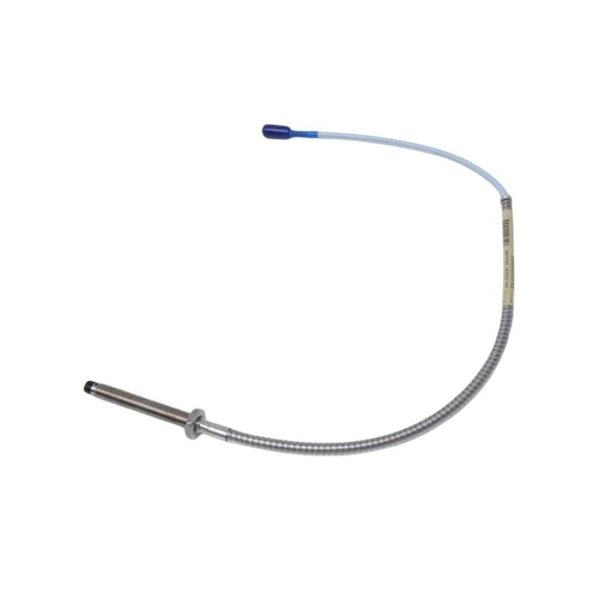

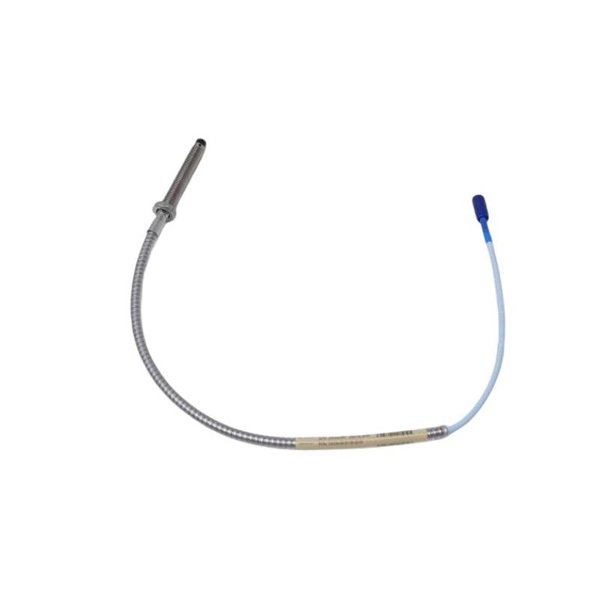

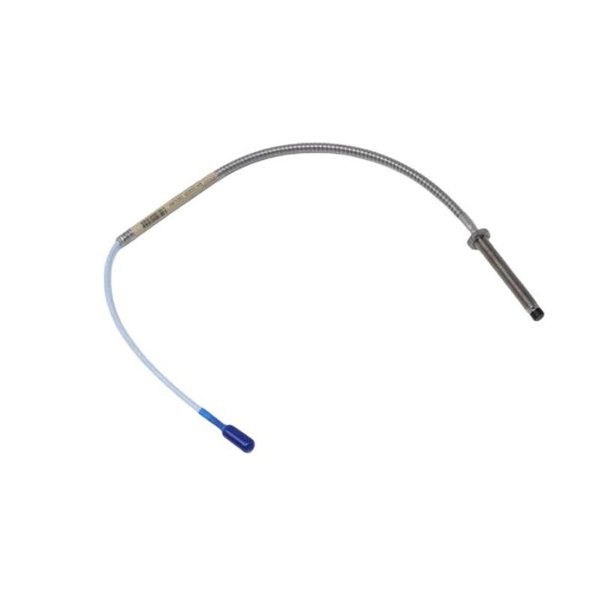

Bently Nevada 330104-00-07-05-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-07-05-02-00 is a high-precision proximity probe from the 3300 XL 8 mm series, designed to deliver accurate non-contact measurements of shaft vibration and position in rotating machinery. This model includes a 7-meter integral coaxial cable and is equipped with a 3300 XL standard connector.

Its superior resistance to harsh industrial conditions and API 670 compliance make it ideal for turbomachinery protection and condition monitoring applications in industries such as oil and gas, power generation, and heavy manufacturing.

Key Features

• Non-contact eddy current sensing for vibration and position

• 8 mm probe tip diameter suitable for most shaft types

• 7-meter integral probe cable

• Straight body configuration for general-purpose mounting

• Fully compatible with 3300 XL Proximitor Sensors and extension cables

• Engineered for API 670 compliance and harsh environments

Technical Specifications

Industry Applications

• Steam and Gas Turbine Monitoring

• Oil & Gas Rotating Equipment

• Petrochemical Plant Machinery

• Industrial Pump and Motor Monitoring

• Compressors and Gearboxes

Product Advantages

• High Accuracy: Consistent, linear output across a wide range of distances

• Robust Design: Built to withstand high temperatures, contaminants, and mechanical stress

• Field Proven: Widely used in API 670-compliant protection systems worldwide

• Plug-and-Play Compatibility: Integrates seamlessly with the full 3300 XL sensor system

• Versatile Mounting: Straight-thread body fits standard industrial brackets and housings

Frequently Asked Questions (FAQ)

1. What is the length of the integral cable?

   7.0 meters.

2. Is this probe compatible with 3300 XL Proximitor Sensors?

   Yes, it is fully compatible with the 3300 XL series Proximitor Sensors.

3. What is the operating temperature range?

   –51°C to +177°C (–60°F to +350°F).

4. What thread type does this model use?

   It uses a 1/4-28 UNF-2A thread.

5. Is this probe suitable for API 670 systems?

   Yes, it meets the requirements for API 670 machinery protection systems.

6. What type of connector is installed?

   Standard Bently Nevada 3300 XL connector.

7. What’s the typical application for this probe?

   Monitoring shaft vibration and axial position in rotating machinery.

8. What is the linear sensing range?

   2 mm (80 mils).

9. What’s the probe tip size?

   8 mm, standard for the 3300 XL series.

10. What material should the target be?

    It is optimized for ferromagnetic materials like steel.
