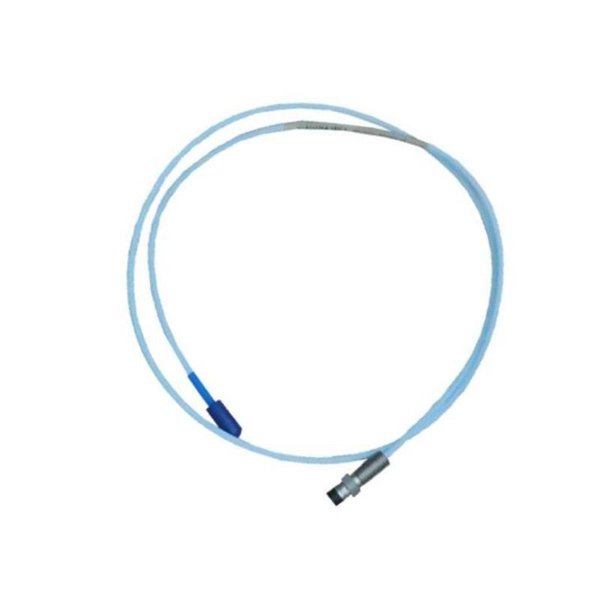

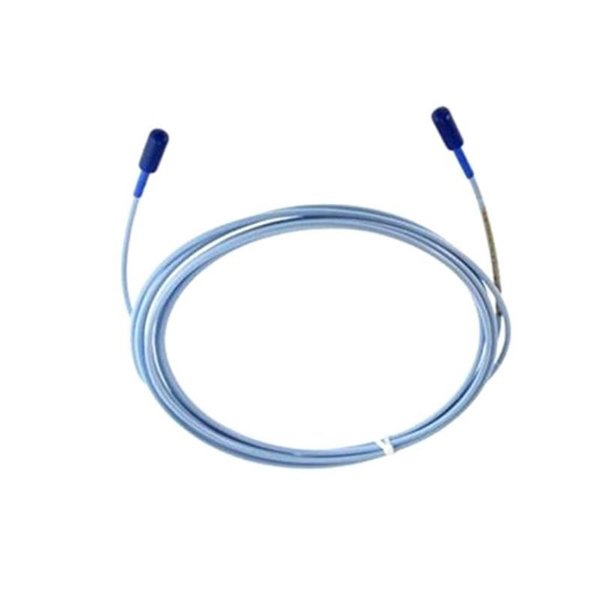

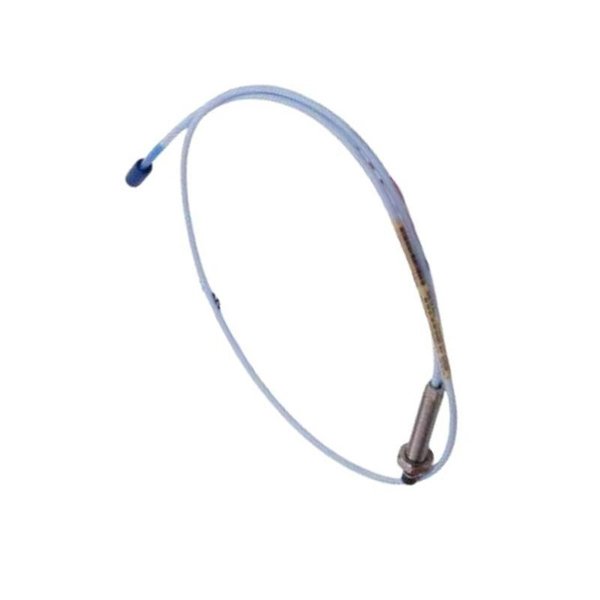

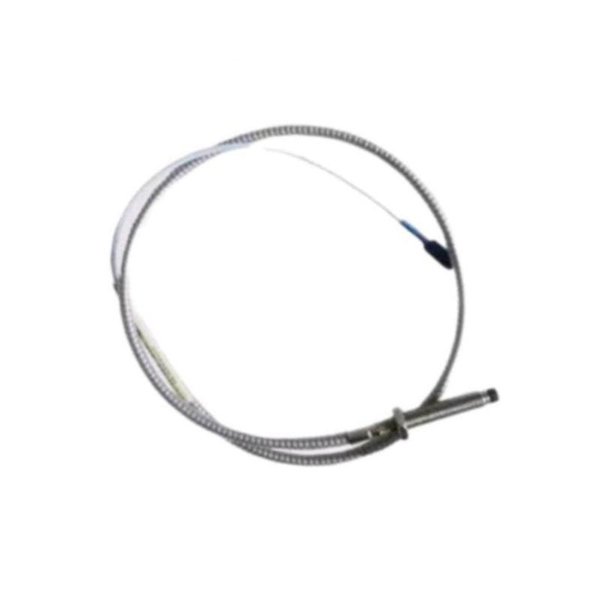

Bently Nevada 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-12-10-02-05 is a high-performance proximity probe from the 3300 XL 8 mm series, engineered for reliable, non-contact monitoring of rotating machinery. Designed to deliver precise shaft displacement measurements, this probe plays a critical role in predictive maintenance and machinery protection systems.

Built with robust materials and designed to function in harsh industrial environments, this model ensures stable, linear output across a wide temperature and frequency range. The 330104-00-12-10-02-05 variant includes a 12 ft probe cable and a straight connector configuration, making it suitable for standard mounting applications.

Key Features

• Non-contact Shaft Monitoring: Utilizes eddy current technology for precise distance measurement between probe and target.

• 8 mm Tip Design: Ensures broad linear range and high sensitivity.

• Temperature-Resistant: Capable of operating in extreme industrial conditions up to +177°C.

• Rugged Housing: Stainless steel construction offers durability against corrosion and wear.

• Compatible System Integration: Seamlessly works with 3300 XL extension cables and drivers.

• Straight Connector Boot: Allows easy routing and installation in constrained spaces.

Technical Specifications

Industry Applications

The 330104-00-12-10-02-05 probe is widely used in critical industrial settings for continuous machinery health monitoring:

• Turbomachinery in Power Plants

• Compressors and Pumps in Oil & Gas Facilities

• Motors and Fans in Chemical Processing

• Rolling Equipment in Steel and Metal Manufacturing

• High-Speed Machines in Pulp & Paper Mills

• Diesel Engines and Generators in Marine Applications

Advantages

• Early Fault Detection: Identifies bearing wear, misalignment, or shaft rubs before failure occurs.

• Reliable Performance: Consistent accuracy across a wide temperature and vibration range.

• Reduced Downtime: Supports predictive maintenance and operational planning.

• Flexible Configuration: Works with a range of drivers and extension cables.

• Compact Design: Fits into space-constrained applications.

• Field-Proven Durability: Trusted in long-term industrial deployments worldwide.

Frequently Asked Questions (FAQ)

1. What is the total cable length included with this model?

   The probe includes a 12-foot (3.66-meter) integral cable.

2. Can this proximity probe be used in high-temperature environments?

   Yes, it operates reliably up to +177°C.

3. What type of connector is used on this probe?

   It features a straight connector boot, ideal for direct routing.

4. Is this probe suitable for outdoor or harsh environments?

   Yes, when installed correctly, it achieves IP66-rated protection.

5. What types of machines can this probe monitor?

   It is designed for rotating machinery such as turbines, pumps, motors, and compressors.

6. Is the output signal analog or digital?

   The probe provides an analog voltage signal proportional to shaft-to-probe distance.

7. What is the mounting thread for this model?

   The mounting thread is 3/8-24 UNF-2A.

8. Does the probe need recalibration?

   No recalibration is typically required under normal operating conditions.

9. Is this probe backward compatible with older Bently Nevada systems?

   Yes, it is compatible with most legacy and current 3300 series systems.

10. Can this probe detect both static and dynamic shaft movements?

    Yes, it is capable of monitoring both static shaft position and dynamic vibration.
